Rubber Lined P Clips - 10 Pack

Surface Mount 12mm Band Width 0.6mm Thick

PPC005-ASH#10

£3.80

Delivery/Collection

Collect from Silicone Hose UK

Orders can be collected once you receive your ready-to-collect email.

Address

Silicone Hose UK

HolmeBank Business Park, Station Road
Unit 5
Mirfield WF14 8NA
United Kingdom

Get Directions

Opening hours

Monday	07:00 – 19:00
Tuesday	07:00 – 19:00
Wednesday	07:00 – 18:00
Thursday	07:00 – 18:00
Friday	07:00 – 17:00
Saturday	07:00 – 13:00
Sunday	Closed

Bank holidays may affect our opening hours and delivery times.

Returns

It's OK to change your mind
Return within 30 days for a full refund*. Learn More

Shop safely

Secure your shopping experience with various safe and trusted payment methods.

Shop safely with us

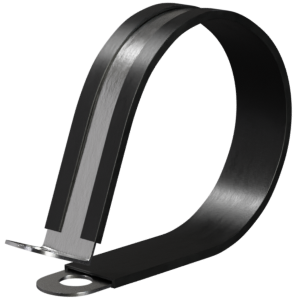

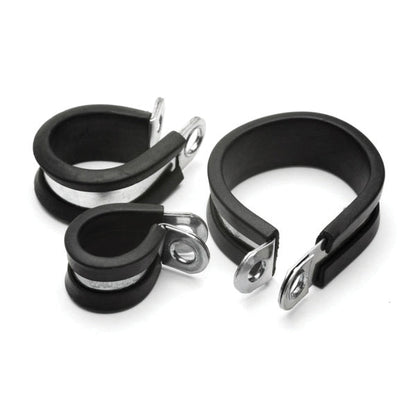

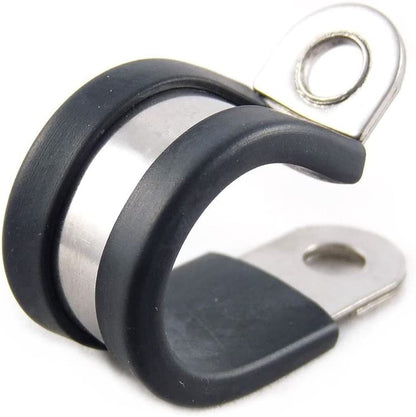

Rubber Lined P Clip is a secure and durable fastening solution designed for mounting hoses, pipes, and cables in automotive, industrial, and construction applications. Constructed from zinc-plated solid steel with a protective rubber lining, the clip provides excellent clamping strength while cushioning the hose or pipe to prevent wear, vibration damage, and abrasion. Its P-shaped design allows for simple and reliable installation, keeping hoses neatly routed and fixed in place. With a wide operating temperature range of -50°C to +150°C (peaks up to +160°C), Rubber Lined P Clip is suitable for use in both indoor and outdoor environments where long-lasting, vibration-resistant support is required.

Key Features:

Material: Zinc-plated solid steel for strength and corrosion resistance.
Lining: Rubber lining to cushion hoses, reduce vibration, and prevent abrasion.
Design: P-shaped mounting clip for secure and tidy hose or pipe management.
Band Width: 12 mm for strong clamping force.
Band Thickness: 0.6 mm for durability while remaining easy to install.
Clip Range: Available from 5 mm to 38 mm diameters.
Operating Temperature: -50°C to +150°C (peak +160°C).
Applications: Automotive, industrial machinery, hydraulics, pneumatics, and general hose or cable management.

The combination of zinc-plated steel and rubber lining provides a strong, vibration-damping clamp suitable for high-performance environments. The lining protects against chafing and surface damage while the steel band ensures a secure hold, even under vibration or movement. Easy to fit with standard fixings, Rubber Lined P Clips allow quick installation and provide neat, professional routing of hoses and cables.

Applications include securing coolant hoses in vehicles, mounting pneumatic and hydraulic lines, fastening fuel hoses, protecting cables in machinery, and general pipe management in construction or maintenance. Rubber Lined P Clip offers a reliable and versatile solution for vibration-resistant hose and pipe support across a wide range of industries.

Specifications

Type: Rubber Lined P-Clip
Colour: Black
Standard: W1 / W4

Size Guide

Clip Range Diametermm	Band Widthmm	Band Thicknessmm	Material
5	12	0.6	W1

Measurements are nominal and may vary slightly.

How to size a clip

Measure over the hose, not the pipe

A clip closes around the outside of the hose once the hose is already on its fitting. That outside diameter is the clip size — the bore the hose runs on is not.

Or work it out from the hose's own figures

If the hose is not to hand, take its internal diameter and add twice the wall thickness — both are listed in that hose's own Size Guide. A 19 mm bore silicone hose has a 4.5 mm wall, so it measures 28 mm across the outside.

Use vernier calipers, keep the largest reading

Set the outer jaws across the widest point of the assembled joint and rotate 60° between readings. Hose is soft and rarely perfectly round, so size to the biggest figure.

Match the size to your figure

These are listed at a nominal diameter rather than a span, so choose the size that matches the outside of the hose you are holding — round up if you land between two.

Size the clip to the hose OD, not the bore. A 19 mm hose does not take a 19 mm clip — with a 4.5 mm wall it measures about 28 mm across the outside. Every figure on this page is the outside diameter the clip closes on.

Construction

Material

Zinc-plated solid steel

Strength and corrosion resistance

Design

P-shaped mounting clip

Secure and tidy hose or pipe management · -50°C to +150°C (peak +160°C)

Rubber Lined P Clips - 10 Pack

Surface Mount 12mm Band Width 0.6mm Thick

Hold the run. Rubber lined.

P-shaped mounting clips that grip the pipe without chafing it.

CLAMPING RANGE

5mm to 35mm

RATED

−50°C to +150°C

MATERIAL

Zinc-plated solid steel

BAND WIDTH

12mm

Frequently Asked Questions.

Answers to the questions we’re asked most about sizing, fitment and performance.

Still can't find your answer?

What is it used for?

Coolant transfer in automotive, marine, agricultural and industrial engines - a smooth internal bore for efficient flow with a reinforced wall.

What size and length do I order?

Order by internal diameter, matched to the outside diameter of the pipe stub or spigot it slides over. Measure the pipe with vernier callipers rather than the old hose, which stretches in service and reads large. Available in sizes from 5mm to 35mm. Full coils work out considerably better value per metre than cut lengths.

What standard is it built to?

It is manufactured to W1 and W4. Buying to a recognised standard matters here - it means the construction, pressure rating and performance have been benchmarked rather than simply described.

Can I use it for fuel or oil?

No - EPDM and general-purpose rubber have poor resistance to hydrocarbons and will soften, swell and eventually fail. For fuel and oil use our SAE J30 R6 rubber hose or a fluorosilicone-lined silicone hose.

How do I know when it needs replacing?

Squeeze it. Hard and brittle, or spongy and swollen, both mean it is done. Look for surface cracking when you flex it and crusty residue or staining round the clips, which indicates seepage. Replace on condition rather than waiting for a failure.

How should it be secured?

Proper hose clips, one at each end, positioned squarely over the barb or spigot. Support long runs with rubber-lined P-clips so the hose cannot chafe against a bracket, panel or wiring loom, and keep it clear of exhaust components.
