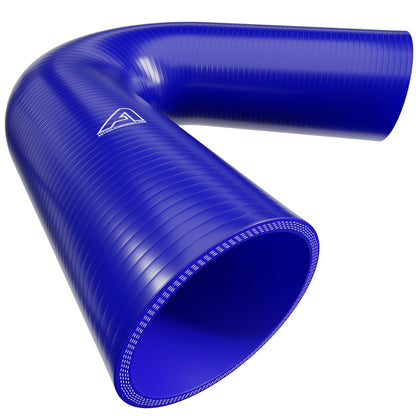

• 135 Degree Silicone Elbow Hose Silicone Hose Auto Silicone Hoses 6mm Blue
  • 135 Degree Silicone Elbow Hose Silicone Hose Auto Silicone Hoses
  • 135 Degree Silicone Elbow Hose Silicone Hose Auto Silicone Hoses 6mm Red
  • 135 Degree Silicone Elbow Hose Silicone Hose Auto Silicone Hoses
  • 135 Degree Silicone Elbow Hose Silicone Hose Auto Silicone Hoses 6mm Black
  • 135 Degree Silicone Elbow Hose Silicone Hose Auto Silicone Hoses
  • 135 Degree Silicone Elbow Hose Silicone Hose Auto Silicone Hoses
  • 135 Degree Silicone Elbow Hose Silicone Hose Auto Silicone Hoses
  • 135 Degree Silicone Elbow Hose Silicone Hose Auto Silicone Hoses
  • 135 Degree Silicone Elbow Hose Silicone Hose Auto Silicone Hoses
  • 135 Degree Silicone Elbow Hose Silicone Hose Auto Silicone Hoses
  • 135 Degree Silicone Elbow Hose Silicone Hose Auto Silicone Hoses
  • 135 Degree Silicone Elbow Hose Silicone Hose Auto Silicone Hoses
  • 135 Degree Silicone Elbow Hose Silicone Hose Auto Silicone Hoses
  • 135 Degree Silicone Elbow Hose Silicone Hose Auto Silicone Hoses
  • 135 Degree Silicone Elbow Hose Silicone Hose Auto Silicone Hoses
  • 135 Degree Silicone Elbow Hose Silicone Hose Auto Silicone Hoses

Auto Silicone Hoses

135 Degree Silicone Elbow Hose

100mm Leg 200mm Long 3 & 4 Ply
Colour: Black

Complete your setup

Add the right extras to get the job done.

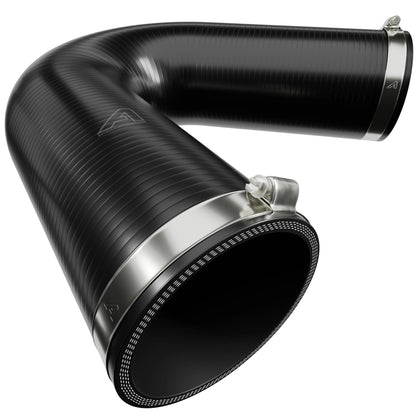

Recommended Size Worm Drive Hose Clip

W4 Stainless Steel • 13mm>20mm • 1 Clip

  • Corrosion resistant
  • Strong & reliable
£0.96
Recommended Size Mini Fuel Hose Clip

W4 Stainless Steel • 14mm>16mm • 1 Clip

  • Ideal for small bores
  • Low profile
£1.44
Plastic Hose Clip Driver

Black

  • Speeds up fitting
  • Colour matched
£0.99
Plastic T-Bolt Driver

Black

  • For T-bolt clamps
  • Speeds up fitting
£0.99
Flexible Hose Clip Driver
  • Flexible shaft
  • Reaches awkward clips
£5.95
Rigid Hose Clip Driver
  • Rigid shaft
  • Direct access
£5.95
Silicone Reinforced Blanking Cap

6mm • Black

  • Reinforced silicone
  • Seals unused ports
£10.58
Silicone Rubber Caps

6mm • Black

  • Seals unused ports
  • High temperature
£1.73

SSE135006K-ASH

£7.10
£7.10

Delivery/Collection

Delivery

Free Evri Standard delivery on all mainland UK orders over £40.

Next Working Day Delivery is a paid-for service.

  • Royal Mail Tracked 24Next working day
  • Evri ExpressNext working day
  • FedEx ExpressNext working day
  • Royal Mail Tracked 482-3 working days
  • Evri Standard2-3 working days

Delivery times are estimates and start from dispatch.

Bank holidays may affect our opening hours and delivery times.

Collect from Silicone Hose UK

Orders can be collected once you receive your ready-to-collect email.

Address

Silicone Hose UK

HolmeBank Business Park, Station Road
Unit 5
Mirfield WF14 8NA
United Kingdom

Get Directions

Opening hours

Monday 07:00 – 19:00
Tuesday 07:00 – 19:00
Wednesday 07:00 – 18:00
Thursday 07:00 – 18:00
Friday 07:00 – 17:00
Saturday 07:00 – 13:00
Sunday Closed

Bank holidays may affect our opening hours and delivery times.

Returns

It's OK to change your mind
Return within 30 days for a full refund*. Learn More

Silicone 135° Elbow Hose is a versatile, heat-resistant hose designed for coolant, air, and fluid transfer in demanding automotive, marine, and industrial environments. Constructed with a smooth extruded silicone compound inner layer, reinforced by strong polyester braids, and finished with a durable silicone outer layer, this hose delivers excellent flexibility, pressure stability, and resilience. The 135-degree bend with 100 mm leg lengths allows efficient routing in confined or offset systems, reducing the need for additional fittings and couplers. Built to SAE J20 R3 standards, the multi-ply silicone elbow performs reliably from -50°C to +250°C, offering long service life under conditions of thermal cycling, vibration, and continuous pressure. Available in a wide range of diameters from 6.5 mm up to 102 mm, silicone 135° elbows provide dependable performance across multiple fluid handling applications.

Key Features:

  • Inner Layer: Smooth extruded silicone compound for durability and fluid compatibility.

  • Reinforcement: Polyester braids for strength and pressure resistance.

  • Outer Layer: High-quality silicone for heat, ozone, and abrasion resistance.

  • Construction: 3–4 ply with 100 mm leg lengths for secure installation.

  • Operating Temperature: -50°C to +250°C (peak +250°C).

  • Internal Diameter Range: 6.5 mm to 102 mm.

  • Working Pressure: From 12.33 bar (small bore) down to 2.8 bar (large bore).

  • Bursting Pressure: Typically 3x working pressure (up to 37 bar).

  • Bend Angle: 135° with extended 100 mm legs.

  • Standard: SAE J20 R3 compliant.

The polyester-reinforced multi-ply construction ensures excellent dimensional stability under pressure while maintaining flexibility for easy installation. With its wide operating temperature range, the silicone 135° elbow hose is resistant to cracking, ozone, and environmental degradation, making it suitable for high-stress applications. Its smooth bore reduces turbulence, supporting efficient fluid flow and reduced pressure loss. Burst pressures up to three times the working rating provide a strong safety margin, while the angled design helps optimise system layout in compact installations. These characteristics make the hose a reliable choice for high-performance cooling, air handling, and fluid transfer systems.

Applications include automotive coolant and air systems, turbocharger and intercooler piping, marine cooling circuits, industrial fluid handling, motorsport engineering, and agricultural machinery requiring angled hose routing. The silicone 135° elbow hose is also widely used in custom fabrication, heavy-duty maintenance, and high-performance projects where secure, durable, and heat-resistant connections are critical. Keywords: silicone 135-degree elbow hose, reinforced silicone coolant elbow, high-temperature silicone bend, SAE J20 R3 compliant hose, industrial fluid transfer elbow, angled silicone hose.

Specifications
Type
135 Degree Elbow
Standard
SAEJ20R3
Each Leg Length
100mm

Size Guide
Inside DiametermmOutside DiametermmWall ThicknessmmWorking PressurebarBursting PressurebarBending RadiusmmNumber Of Ply
6.5 15.5 4.5 12.33 37 16 3
8 17 4.5 11.67 35 16 3
9.5 18.5 4.5 11.67 35 16 3
11 20 4.5 9 30 16 3
13 22 4.5 8.33 27 16 3
16 25 4.5 7.17 25 18 3
19 28 4.5 6.5 19.5 18 3
22 31 4.5 5.8 17.4 20 3
25 34 4.5 5.5 16 30 3
28 37 4.5 5.33 16 30 3
30 39 4.5 5.33 16 30 3
32 41 4.5 5.17 15.5 32 3
35 44 4.5 5 15 35 3
38 47 4.5 5 15 35 3
40 49 4.5 4.83 14.5 35 3
45 54 4.5 4.67 14 40 3
48 57 4.5 4.5 13.5 45 3
51 62 5.5 4.5 13.5 51 4
54 65 5.5 4.33 13 60 4
57 68 5.5 4.33 13 60 4
60 71 5.5 4.17 12.5 60 4
63 74 5.5 4 12 63 4
65 76 5.5 3.85 11.5 65 4
68 79 5.5 3.6 11 65 4
70 81 5.5 3.5 10.5 65 4
76 87 5.5 3.5 10.5 65 4
80 91 5.5 3.33 10 70 4
83 94 5.5 3.17 9.5 70 4
90 101 5.5 3 9 70 4
102 113 5.5 2.8 8.5 70 4

Measurements are nominal and may vary slightly.

How to measure ID

ID OD wall reinforcement plies ID = bore · OD = ID + (2 × wall)
1
Measure the pipe, not the old hose
Heat and age make a used hose swell and go out of round. Take your reading across the metal outlet the hose slides onto — that measurement is your ID.
2
Use vernier calipers
Set the outer jaws across the widest point of the pipe. A tape measure round a curve reads low by a millimetre or two — enough to buy the wrong size.
3
Take three readings, keep the largest
Rotate 60° between each. If they disagree the pipe is oval; size to the biggest figure so the hose still seals.
4
Round to the nearest listed bore
Silicone stretches slightly. If you land between sizes, go down to the smaller bore for a tight seal — never up.
Order by ID, always. Every hose on this site is listed by internal diameter. OD is given for clearance only — it changes with wall thickness and ply count, so it is never the ordering size. On reducers, quote both ends, largest first.

Construction
1 · Outer cover
High-quality silicone
Heat, ozone, and abrasion resistance
2 · Reinforcement
Polyester braids
Strength and pressure resistance · From 12.33 bar (small bore) down to 2.8 bar (large bore) · Typically 3x working pressure (up to 37 bar)
3 · Inner liner
Smooth extruded silicone compound
Durability and fluid compatibility · -50°C to +250°C (peak +250°C)
Conforms to SAE J20 R3.

135 Degree Silicone Elbow Hose

100mm Leg 200mm Long 3 & 4 Ply

One elbow. Every size.

A few reasons this silicone elbow outlasts the hose it replaces.

INTERNAL DIAMETERS

6.5mm to 102mm

RATED

−50°C to +250°C

WORKING PRESSURE

Up to 12.3 bar

REINFORCEMENT

3 and 4 ply braid

LEGS

100mm each side

BUILT TO

SAE J20 R3

What size do I order?

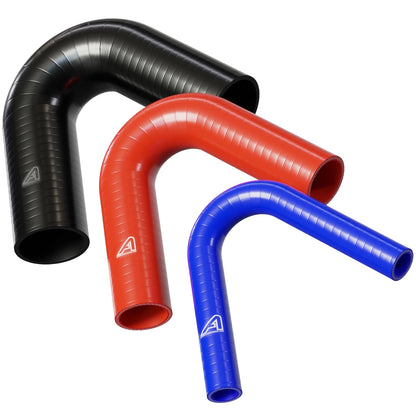

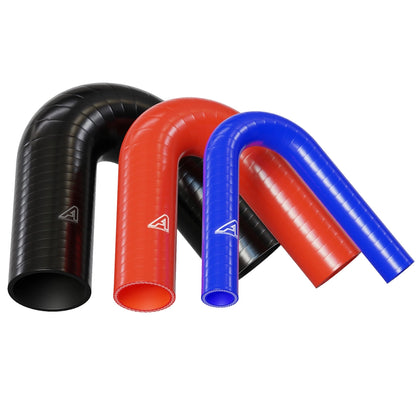

Order by internal diameter, matched to the outside diameter of the metal pipe or stub the elbow slides onto. Measure the pipe itself with vernier callipers, not the hose you are replacing - hose stretches in service and reads a size large. Available in internal diameters from 6mm to 102mm, in black, blue and red.

How long are the legs?
100mm on each side, giving 200mm total length. That leaves plenty of material to trim back to the length you need. If you cut them down, leave at least 25-30mm of straight leg beyond the bend so the clip seats on a supported section - never let a clip end up sitting on the curve, because it will not seal evenly there.

What temperature and pressure will it take?
Continuous service from -50C to +250C, built to SAE J20 R3. Working pressure runs from 12.33 bar on the smallest bore down to 2.8 bar on the largest, with burst pressure from 37 bar down to 8.5 bar across the 6.5mm to 102mm range. For context, a car cooling system typically runs at 1 to 1.5 bar and well under 120C, so there is a substantial margin.

How is it constructed, and how many plies?
A smooth extruded silicone compound inner layer, polyester braid reinforcement, and a durable silicone outer layer that resists heat, ozone and abrasion. Smaller bores are 3 ply and larger bores step up to 4 ply - each size is built with the reinforcement it needs, so you do not have to specify it. Wall thickness runs from 4.5mm to 5.5mm depending on bore.

Can I use it for fuel or oil?
No. This is standard silicone, which is excellent with coolant, water and air but swells and breaks down in contact with petrol, diesel or oil - and that includes breather and catch-can lines, which carry oil mist. For anything with hydrocarbons in it, use our Fuel & Oil range, which has a fluorosilicone liner built to SAE J30 R6.

What is the bend radius?
Bend radius runs from 16mm on the smallest bore to 70mm on the largest. That is the radius the elbow is moulded to, so the bore stays fully round through the bend and flow is not restricted - which is exactly why a moulded elbow beats bending a straight hose round the same corner.
