Rubber 45 Degree Radiator Elbows

150mm Leg 300mm Total EPDM Rubber

Complete your setup

Add the right extras to get the job done.

Recommended Size Worm Drive Hose Clip

W4 Stainless Steel • 16mm>22mm • 1 Clip

Corrosion resistant
Strong & reliable

£0.96

Recommended Size T Bolt Hose Clamp

W4 Stainless Steel • 17mm>19mm • 1 Clip

High clamping force
Heavy duty

£2.52

Recommended Size Mini Fuel Hose Clip

W4 Stainless Steel • 18mm>20mm • 1 Clip

Ideal for small bores
Low profile

£1.54

Plastic Hose Clip Driver

Black

Speeds up fitting
Colour matched

£0.99

Plastic T-Bolt Driver

Black

For T-bolt clamps
Speeds up fitting

£0.99

Flexible Hose Clip Driver

Flexible shaft
Reaches awkward clips

£5.95Sold out

Rigid Hose Clip Driver

Rigid shaft
Direct access

£5.95

Silicone Reinforced Blanking Cap

10mm • Black

Reinforced silicone
Seals unused ports

£11.02

Silicone Rubber Caps

10mm • Black

Seals unused ports
High temperature

£1.94

RRH045010-ASH

£3.36

Delivery/Collection

Collect from Silicone Hose UK

Orders can be collected once you receive your ready-to-collect email.

Address

Silicone Hose UK

HolmeBank Business Park, Station Road
Unit 5
Mirfield WF14 8NA
United Kingdom

Get Directions

Opening hours

Monday	07:00 – 19:00
Tuesday	07:00 – 19:00
Wednesday	07:00 – 18:00
Thursday	07:00 – 18:00
Friday	07:00 – 17:00
Saturday	07:00 – 13:00
Sunday	Closed

Bank holidays may affect our opening hours and delivery times.

Returns

It's OK to change your mind
Return within 30 days for a full refund*. Learn More

Shop safely

Secure your shopping experience with various safe and trusted payment methods.

Shop safely with us

Rubber 45 Degree Elbow is a high-performance connector hose designed for coolant, air, and water transfer in automotive, agricultural, and industrial systems. Constructed from smooth heat-resistant EPDM rubber and reinforced with high-tensile fibre yarn, the elbow provides excellent flexibility, durability, and pressure resistance. Its precision-moulded 45-degree bend allows for reliable directional changes in tight spaces while maintaining consistent flow. Built to SAEJ20R3 standards, the hose is resistant to heat, ageing, and ozone, making it suitable for demanding environments where long service life is essential. With a wide operating temperature range of -30°C to +125°C (and short-term peaks up to +145°C), Rubber 45 Degree Elbow ensures reliable performance across a variety of fluid handling systems.

Key Features:

Material: Smooth heat-resistant EPDM rubber for durability and flexibility.
Reinforcement: High-tensile fibre yarn for pressure strength and stability.
Design: Precision-moulded 45-degree elbow for directional hose connections.
Operating Temperature: -30°C to +125°C (peak +145°C).
Working Pressure: 10 bar across all sizes.
Burst Pressure: 30 bar (3:1 safety factor).
Internal Diameter Range: 9.5 mm to 76 mm.
Wall Thickness: 4.5 mm across all sizes.
Leg Length: 150 mm per leg.
Standard: SAEJ20R3 compliant.

The EPDM rubber construction provides superior resistance to heat, weathering, and ozone, ensuring long-lasting performance in demanding environments. Its smooth bore supports efficient flow while the fibre reinforcement delivers consistent pressure handling and dimensional stability. The moulded 45-degree angle allows for compact installations where sharp bends are needed, helping to reduce kinking and maintain flow efficiency. With a burst pressure rating three times higher than its working pressure, the hose offers a dependable margin of safety for a wide range of operating conditions.

Applications include coolant and heating systems in vehicles, agricultural machinery, construction equipment, marine engines, and industrial fluid transfer setups. Rubber 45 Degree Elbow is widely used where reliability, heat resistance, and flexibility are critical, providing a robust solution for coolant, air, and water handling in automotive, industrial, and agricultural systems.

Specifications

Type: 45 Degree Elbow
Material: Rubber
Colour: Black
Standard: SAEJ20R3
Wall Thickness: 4.5mm
Working Pressure: 10bar
Bursting Pressure: 30bar
Number Of Ply: 1
Each Leg Length: 150mm

Size Guide

Inside Diametermm	Outside Diametermm
9.5	18.5
13	22
16	25
19	28
22	31
25	34
28	37
32	41
35	44
38	47
51	60
63	72
76	85

Measurements are nominal and may vary slightly.

How to measure ID

1

Measure the pipe, not the old hose

Heat and age make a used hose swell and go out of round. Take your reading across the metal outlet the hose slides onto — that measurement is your ID.

2

Use vernier calipers

Set the outer jaws across the widest point of the pipe. A tape measure round a curve reads low by a millimetre or two — enough to buy the wrong size.

3

Take three readings, keep the largest

Rotate 60° between each. If they disagree the pipe is oval; size to the biggest figure so the hose still seals.

4

Round to the nearest listed bore

Never go up: a bore wider than the fitting will not grip, whatever the hose is made of. If you land between listed sizes take the smaller bore, and secure it with a clip.

Order by ID, always. Every hose on this site is listed by internal diameter. OD is given for clearance only — it changes with wall thickness and ply count, so it is never the ordering size. On reducers, quote both ends, largest first.

Construction

Outer cover

Heat-resistant EPDM rubber

Reinforcement

High-tensile fibre yarn

Inner liner

Smooth EPDM rubber inner layer

Conforms to SAEJ20R3.

13 bore sizes9.5mm to 76mm internal diameter

30 bar burst10 bar working on the smallest bore

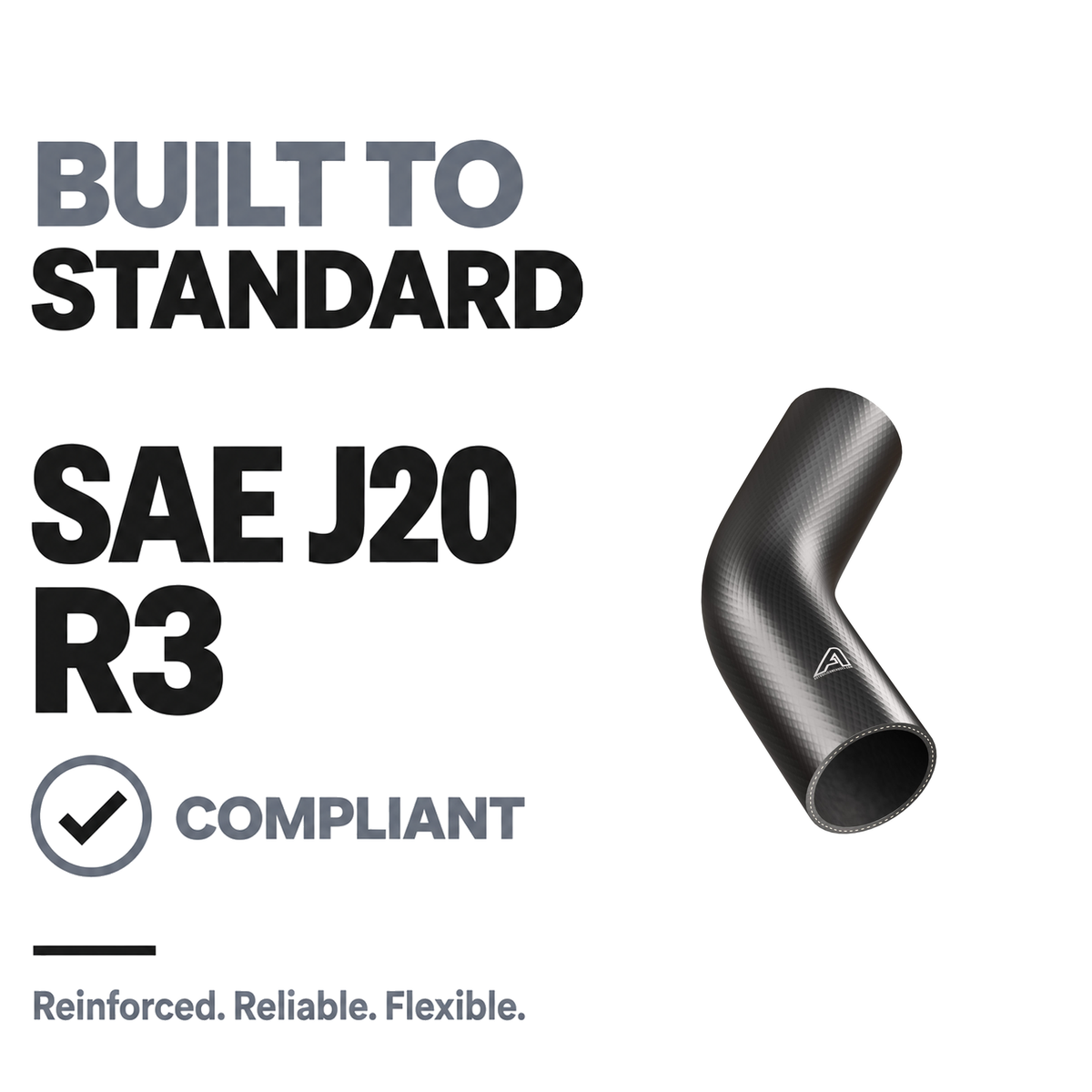

SAE J20 R3 built to standardthe automotive coolant hose standard

1 ply reinforcementthe same in every size

Rubber, done right. EPDM throughout.

Coolant-rated rubber for the jobs that do not need silicone money.

INTERNAL DIAMETERS

9.5mm to 76mm

RATED

−30°C to +125°C

WORKING PRESSURE

10 bar across all sizes

REINFORCEMENT

Single-ply moulded

LEGS

150mm each side

BUILT TO

SAE J20 R3

Specification at a glance

Across the whole 9.5mm–76mm range.

9.5mm –76mm Inside diameter

18.5mm –85mm Outside diameter

4.5mm Wall thickness

150mm Each leg length

10bar Working pressure

30bar Bursting pressure

Inside diameter (mm)	Outside diameter (mm)	Wall thickness (mm)	Working pressure (bar)	Bursting pressure (bar)	Ply	Each leg length (mm)
9.5	18.5	4.5	10	30	1	150
13	22	4.5	10	30	1	150
16	25	4.5	10	30	1	150
19	28	4.5	10	30	1	150
22	31	4.5	10	30	1	150
25	34	4.5	10	30	1	150
28	37	4.5	10	30	1	150
32	41	4.5	10	30	1	150
35	44	4.5	10	30	1	150
38	47	4.5	10	30	1	150
51	60	4.5	10	30	1	150
63	72	4.5	10	30	1	150
76	85	4.5	10	30	1	150

Show all 13 sizes → Show fewer

How it's built

Three layers, each doing one job.

Three layers, from the outside in: heat-resistant EPDM rubber, high-tensile fibre yarn and smooth EPDM rubber inner layer. Each one is doing a different job.

1

Outer cover

Heat-resistant EPDM rubber

2

Reinforcement

High-tensile fibre yarn

3

Inner liner

Smooth EPDM rubber inner layer

Product gallery

Frequently Asked Questions.

Answers to the questions we’re asked most about sizing, fitment and performance.

Still can't find your answer?

Contact Us

What is it for?

Turning a corner in a coolant, air or water run without kinking. A moulded elbow keeps the bore round through the bend, so flow is not restricted and the hose will not collapse - which is what happens if you bend a straight hose round the same corner.

What size do I order?

Order by internal diameter, matched to the outside diameter of the pipe stub the elbow slides onto. Measure the pipe with vernier callipers rather than the old hose. Available in internal diameters from 10mm to 76mm.

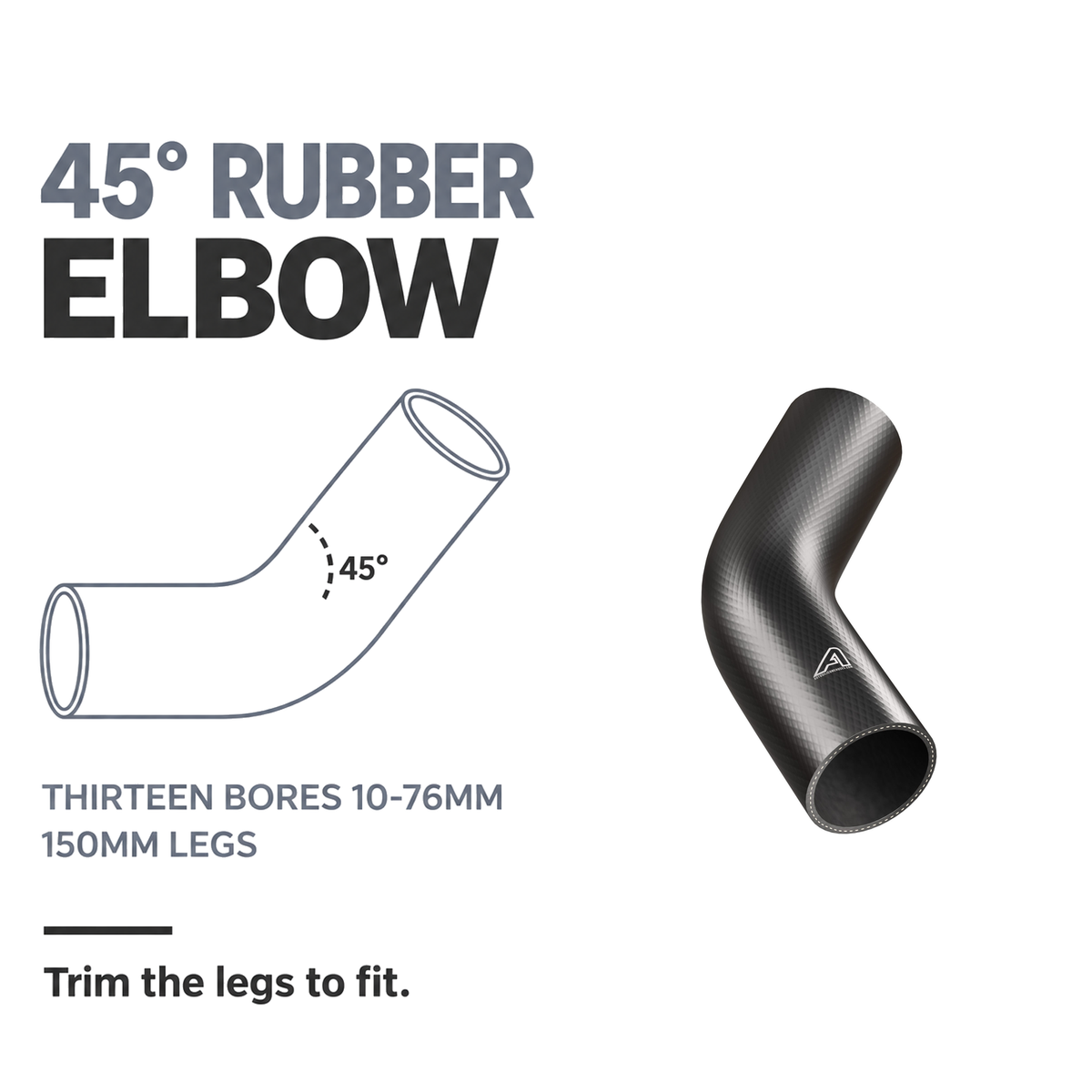

How long are the legs?

150mm on each side, giving 300mm total length. Trim with a sharp blade, leaving at least 25-30mm of straight leg beyond the bend so the clip seats on a supported section. Never let a clip end up on the curve of the bend.

What is it rated for?

EPDM rubber built to SAE J20 R3 with high-tensile fibre yarn reinforcement, glycol rated for standard antifreeze mixes. That is the specification used for virtually all original-equipment coolant hose.

Can I use it for fuel or oil?

No - EPDM has poor resistance to hydrocarbons and will soften and swell. For fuel and oil use our SAE J30 R6 rubber hose or a fluorosilicone-lined silicone elbow.

Rubber or silicone elbow?

Rubber is the like-for-like replacement, cheaper, and matches the original look on a standard vehicle. Silicone handles far higher temperatures and does not perish with age, so it is the better choice if the vehicle runs hot or access is poor enough that you do not want to do the job again.
