Plastic Hose Inline Barbed 45 Degree Elbow

3D Printed ABS Plastic Thick Walled

PFJ008-ASH

£4.11

Not for high pressure or heat

Not suitable for high-pressure or high-temperature applications, such as turbo or radiator systems.

Delivery/Collection

Collect from Silicone Hose UK

Orders can be collected once you receive your ready-to-collect email.

Address

Silicone Hose UK

HolmeBank Business Park, Station Road
Unit 5
Mirfield WF14 8NA
United Kingdom

Get Directions

Opening hours

Monday	07:00 – 19:00
Tuesday	07:00 – 19:00
Wednesday	07:00 – 18:00
Thursday	07:00 – 18:00
Friday	07:00 – 17:00
Saturday	07:00 – 13:00
Sunday	Closed

Bank holidays may affect our opening hours and delivery times.

Returns

It's OK to change your mind
Return within 30 days for a full refund*. Learn More

Shop safely

Secure your shopping experience with various safe and trusted payment methods.

Shop safely with us

Plastic Inline 45° Elbow Barbed Hose Joiner is a strong, lightweight connector designed to link two hoses at a shallow angle in garden, pond, and water pipe systems. Manufactured from high-quality Acrylonitrile Butadiene Styrene (ABS) plastic, the joiner offers excellent impact resistance, durability, and stability under temperature variation. The barbed ends provide a secure grip on flexible hoses, ensuring leak-free connections without the need for sealants. Suitable for continuous service across a wide temperature range, it performs reliably in both domestic and outdoor environments.

Key Features:

Material: Acrylonitrile Butadiene Styrene (ABS) plastic for toughness and impact resistance.
Design: 45° angled barbed joiner for secure inline hose connections.
Wall Thickness: 2 mm for rigidity and durability.
Surface Finish: Matte finish for a neat, professional look.
Operating Temperature: -20°C to +105°C.
Applications: Garden hoses, pond systems, and water pipework requiring angled routing.

The 45° elbow joiner provides an efficient solution for routing hoses around bends without kinking, reducing stress on the system and maintaining consistent flow. Its ABS plastic construction offers resistance to cracking, UV exposure, and general wear, ensuring long service life in outdoor and continuous-use environments. The secure barbed ends grip hoses firmly, maintaining a tight seal under pressure. Compact and easy to install, this connector is a cost-effective choice for angled hose connections in a wide range of applications.

Applications include garden irrigation, pond equipment setups, water transfer systems, and general domestic or agricultural hosework. Plastic Inline 45° Elbow Barbed Hose Joiners are commonly used in maintenance, DIY, and utility projects where reliable angled hose connections are required.

Size Guide

Outside Diametermm
8
10
13
14
15
16
19
20
22
25
28
30
32
35
38
40
45
48
50
51
54
55
57
60
63
70
76
80
83
90
102

Measurements are nominal and may vary slightly.

How to measure OD

1

Measure across the outside

Rigid pipe, tube and joiners are sized by the outer wall, because that is the surface a hose seals against. The bore and wall thickness follow from it — they are not the ordering size.

2

Use vernier calipers

Set the outer jaws across the widest point. A tape measure round a curve reads low by a millimetre or two — enough to buy the wrong size.

3

Take three readings, keep the largest

Rotate 60° between each. If they disagree the tube is oval; size to the biggest figure so the hose still clamps down evenly.

4

Match the hose to this OD

The hose sleeves over the tube, so the hose you want is the one whose internal diameter equals this outside diameter. A 51 mm tube takes a 51 mm ID hose.

Order by OD, always. Tube, rigid pipe and joiners are listed by outside diameter — the surface the hose clamps onto. Pair one with a hose of the same ID. On reducers, quote both ends, largest first.

Construction

Material

Acrylonitrile Butadiene Styrene (ABS) plastic

Toughness and impact resistance

Design

45° angled barbed joiner

Secure inline hose connections

Finish

Matte finish

A neat, professional look · -20°C to +105°C

Push it on. Clip it tight.

Barbed joiners for low-pressure water, air and drainage runs.

OUTSIDE DIAMETERS

8mm to 51mm

RATED

−20°C to +105°C

MATERIAL

ABS plastic

PRODUCTION

3D printed

COLOURS

Black, white, blue or red

ENDS

Barbed both ends

Find your perfect colour

Moulded in colour the whole way through, so a scuff will not show a different colour underneath. The Plastic Hose Inline Barbed 45 Degree Elbow is the same part in all four colours — only the colour changes.

Black

White

Blue

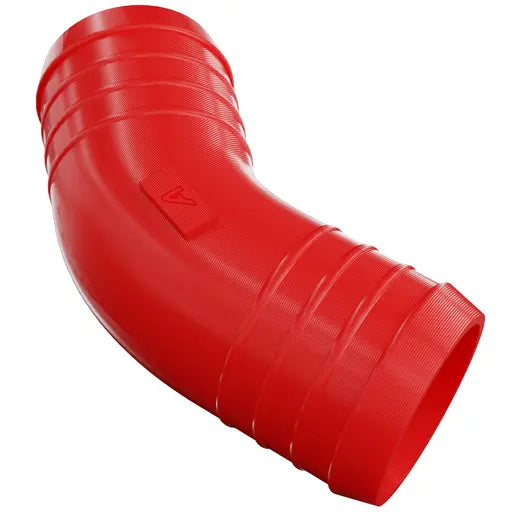

Plastic Hose Inline Barbed 45 Degree Elbow – Red

Red

Colours shown are indicative — screen rendering varies.

How it's built

What it's made of.

Made from acrylonitrile Butadiene Styrene (ABS) plastic.

1

Material

Acrylonitrile Butadiene Styrene (ABS) plastic

Toughness and impact resistance

2

Design

45° angled barbed joiner

Secure inline hose connections

3

Finish

Matte finish

A neat, professional look-20°C to +105°C

Product gallery

Frequently Asked Questions.

Answers to the questions we’re asked most about sizing, fitment and performance.

Still can't find your answer?

Contact Us

What is it used for?

Joining two hoses of the same internal diameter in low-pressure water, pond, ducting and general workshop plumbing.

How do I size one?

Match the barb outside diameter to your hose internal diameter. It should need a firm push to go on - warming the hose end in hot water makes a tight fit far easier. If it slides on loosely it is too small. Available in outside diameters from 8mm to 51mm, in black, white, blue and red.

Do I need clips?

On anything pressurised, or anything that matters if it comes off, yes - one each side. The barb resists pull-off but does not seal on its own once the hose relaxes with age and temperature. A stainless clip is cheap insurance.

When should I use metal or silicone instead?

For anything pressurised, hot, or carrying fuel or oil. Plastic has neither the temperature range nor the strength for engine bay work. We stock aluminium beaded and unbeaded joiners from 8mm to 102mm and silicone couplers from 13mm to 152mm for those applications.

What is it made from?

ABS plastic, thick walled. That gives good strength for a plastic fitting, resistance to corrosion in constant contact with water, and a low cost. What it does not give is temperature range or strength for pressurised systems.

What temperature will it take?

It is a general-purpose ABS fitting for ambient and low-temperature use. Keep it away from engine bays, hot process fluid and exhaust heat, where you need metal or silicone. If you are unsure about your temperature, tell us and we will confirm.
