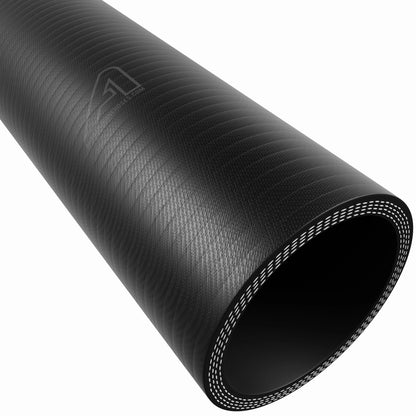

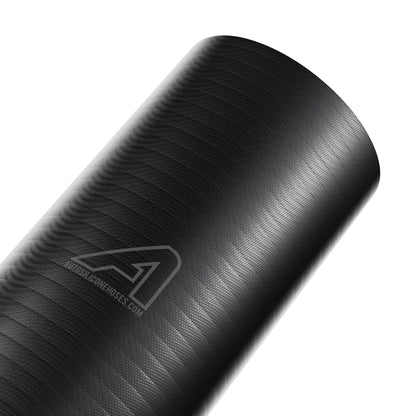

1 Metre Classic Wrapped Straight Silicone Hose

✅ 1 Metre Long ✅ Fuel & Oil Safe ✅ Classic Wrap Finish
false

PRODUCT CONSTRUCTION.

1 Metre Classic Wrapped Straight Silicone Hose

✅ 1 Metre Long ✅ Fuel & Oil Safe ✅ Classic Wrap Finish
SKU
WSH013-ASH
Brand
Auto Silicone Hoses
Application
Fuel & Oil Lines, Coolant Systems, Radiator & Water
Temperature Range
-60°C to +180°C
Internal Diameter
13mm
Internal Diameter Inch
1/2"
Outside Diameter
22mm
Outside Diameter Inch
7/8"
Main Body Length
1 Metre
Bend Radius
130mm
Number Of Plys
3
Max Coil Length
1 Metre
Wall Thickness
4.5mm
Surface Finish
Wrapped Matte
Inner Layer Material
Flouro Silicone
Outer Layer Material
VMQ Silicone Rubber
Reinforcement
Polyester Braid
Conforms To
SAEJ30R6
Colour
Black
Bursting Pressure
27.0 Bar
Working Pressure
8.33 Bar
Safety Factor
3 x Working Pressure
Weight
0.30 kg/m
Download Datasheet
Your custom code is here (HTML, JavaScript, CSS, Shopify Liquid)
£17.73
Sale {price}%

£14.18 ex VAT

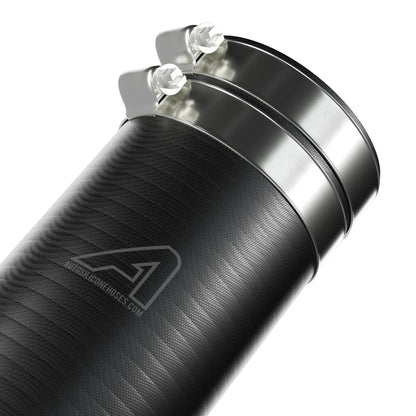

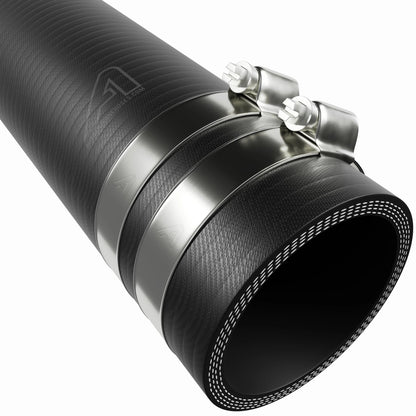

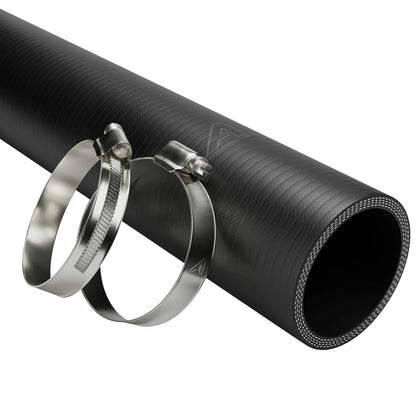

ADD HOSE CLIPS & JOINERS.

Selected OD (Outside Diameter):
22mm
Match Hose OD To Clip Size Range
TBOLT-SPEC

DELIVERED TO YOUR DOOR.

Free standard delivery when you spend £40!

COLLECT IN STORE.

Start-EComposer-custom-liquid-pickup

Pickup Available At Silicone Hose UK.

Collect In 1 Hour

1 Metre Classic Wrapped Straight Silicone Hose

Internal Diameter: 13mm, Color: Black

  • Silicone Hose UK

    Pickup Available, collect in 1 hour

    HolmeBank Business Park, Station Road
    Unit 5
    Mirfield WF14 8NA
    United Kingdom

    +441924496111

End-EComposer-custom-liquid-pickup

BUY NOW. PAY LATER.

SKU
WSH013-ASH
Brand
Auto Silicone Hoses
Application
Fuel & Oil Lines, Coolant Systems, Radiator & Water
Temperature Range
-60°C to +180°C
Internal Diameter
13mm
Outside Diameter
22mm
Main Body Length
1 Metre
Bend Radius
130mm
Number Of Plys
3
Max Coil Length
1 Metre
Wall Thickness
4.5mm
Surface Finish
Wrapped Matte
Inner Layer Material
Flouro Silicone
Outer Layer Material
VMQ Silicone Rubber
Reinforcement
Polyester Braid
Conforms To
SAEJ30R6
Colour
Black
Bursting Pressure
27.0 Bar
Working Pressure
8.33 Bar
Safety Factor
3 x Working Pressure
Weight
0.30 kg/m
Download Datasheet

Description

Fuel and oil silicone hoses are specifically engineered to connect metal piping and components in systems handling hydrocarbon fluids like petrol, diesel, oil, and solvents. These hoses feature a fluoro silicone liner, allowing for short-term contact with such fluids and vapours, though they are not suitable for permanent fuel or oil transfer or immersion. Ideal applications include breather pipes and fuel filler necks.

Constructed to the same high standards as water and air silicone hoses, these products maintain flexibility throughout their lifespan, unlike rubber hoses, which may split, harden, or suffer from dry rot under certain conditions. While fluoro silicone liners effectively resist oil penetration, it is advised not to use these hoses for fuel lines or heavy fuel usage. Occasional contact with fuel and vapour is acceptable, but rubber hoses are recommended for constant fuel exposure.

These hoses are available in 1-metre straight lengths with wall thicknesses of 4.5mm or 5.5mm, supporting a working pressure of 12.33 Bar and a bursting pressure of 37 Bar. With a temperature rating of -60°C to +180°C, they are suitable for applications such as engine coolant systems and radiator hoses, boasting a safety factor of 3:1 and meeting the SAEJ30R6 hose grade standards. The construction includes polyester reinforcement and VMQ silicone rubber, ensuring durability and reliability in demanding conditions.

Returns

For further details pertaining to our return policy, kindly refer to our dedicated Returns & Warranties page.We offer 30 day return policy on 99% of our items, some are considered Custom made products (This would include Alloy Joiners, Alloy Connector & Silicone Couplers as these are made specifically for each order and are classed as a 'tailor-made' product). These are non returnable.

For further details pertaining to our return policy, kindly refer to our dedicated Returns & Warranties page.
Gallery

Why Choose Our
Silicone hose

  • 3/4 Ply

    Polyester reinforcement providing enhanced strength and flexibility
  • colours

    Available in three vibrant colours to match your setup with eye-catching aesthetics
  • High Temp

    Rated for  -60°C to +180°C, perfect for us with coolant and radiator applications.
  • high pressure

    Rated for high pressure applications where other hoses may fail.

FROM THE BRAND.

packingbanner





Customer Reviews

Based on 2 reviews
50%
(1)
0%
(0)
0%
(0)
0%
(0)
50%
(1)
L
Lee Leighton (Wednesbury, United Kingdom)
Poor customer service

Brought a hose over a week ago sent email no response phoned up can’t help and still haven’t received parcel just poor product great but wouldn’t purchase from this company again as you can’t speak to anyone

P
Patrick Reed (Portland, United States)
Just the ticket!

Was looking for a classic look hose to replace my VW bus intake couplers with and the 38mm ID are just the ticket to look close to stock and not flashy or too “performancy”!

FREQUENTLY ASKED QUESTIONS.

Can Silicone Hoses Be Used For Fuel/Oil?

If you intend to use silicone hoses for fuel or oil applications, it is recommended to use Fluorolined Silicone, hoses are specifically designed to offer enhanced resistance to a wider range of chemicals, including fuels and oils.

Will Silicone Hose Stretch?

Silicone hoses are known for their flexibility and elasticity, which allows them to stretch to some extent. However, the degree to which a silicone hose can stretch depends on various factors, including its design, thickness, and the specific type of silicone used in its construction. We advise that our hoses can stretch a maximum of 3mm on the diameter.

Can Silicone Hoses Be Used For Coolant?

Yes, silicone hoses are commonly used for coolant applications. Silicone hoses are well-suited for coolant systems in various industries, including automotive, marine, and industrial applications.

How Long Do Silicone Hoses Last?

The lifespan of silicone hoses can vary depending on several factors, including the quality of the material, the specific formulation of the silicone, the environmental conditions, and the type of application. In general, silicone hoses are known for their durability and longevity, and they often outlast traditional rubber hoses in many applications.

What is the temperature rating of silicone hoses?

The temperature rating of silicone hoses is typically in the range of -60°C to +180°C (-76°F to 356°F). Silicone hoses are known for their ability to withstand a wide range of temperatures, making them suitable for various applications in industries such as automotive, aerospace, and manufacturing. It's important to note that specific products may have slightly different temperature ratings, so it's advisable to refer to the manufacturer's specifications for precise details on a particular silicone hose.
