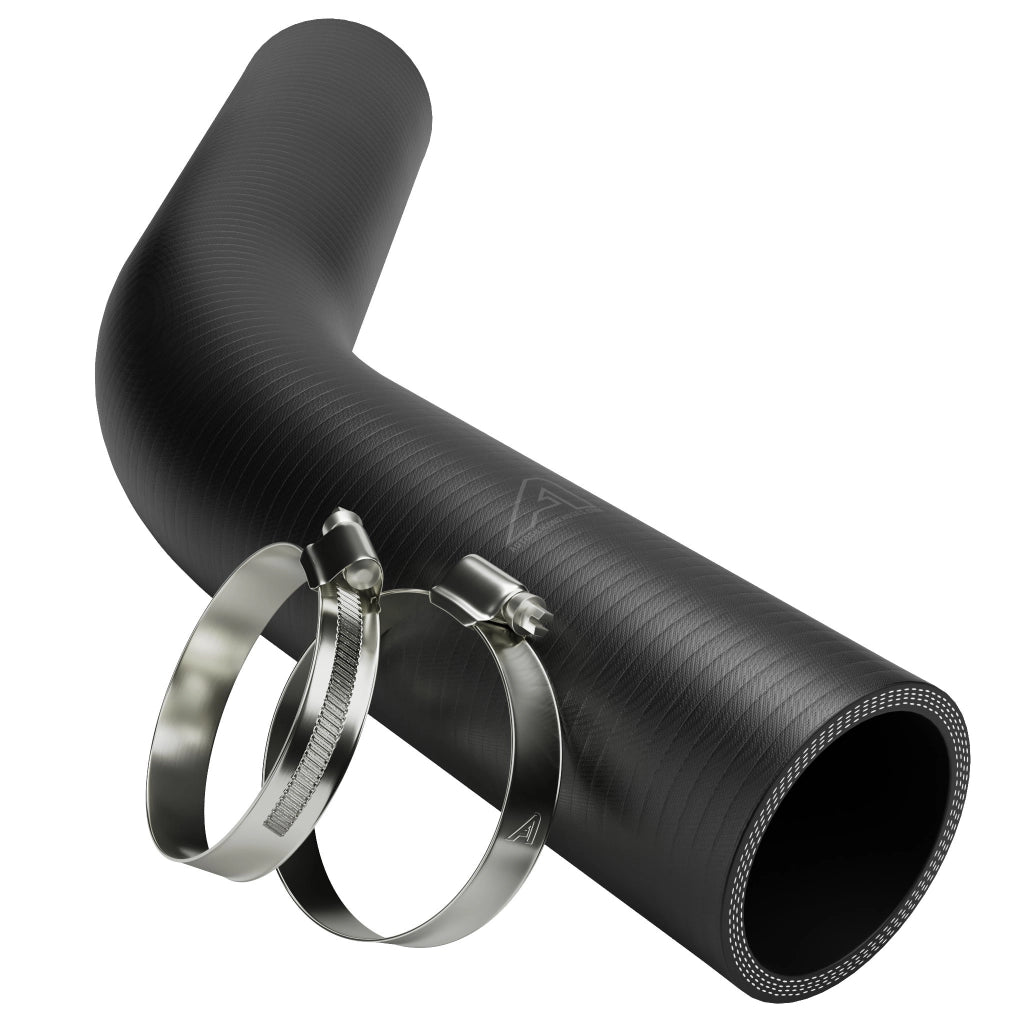

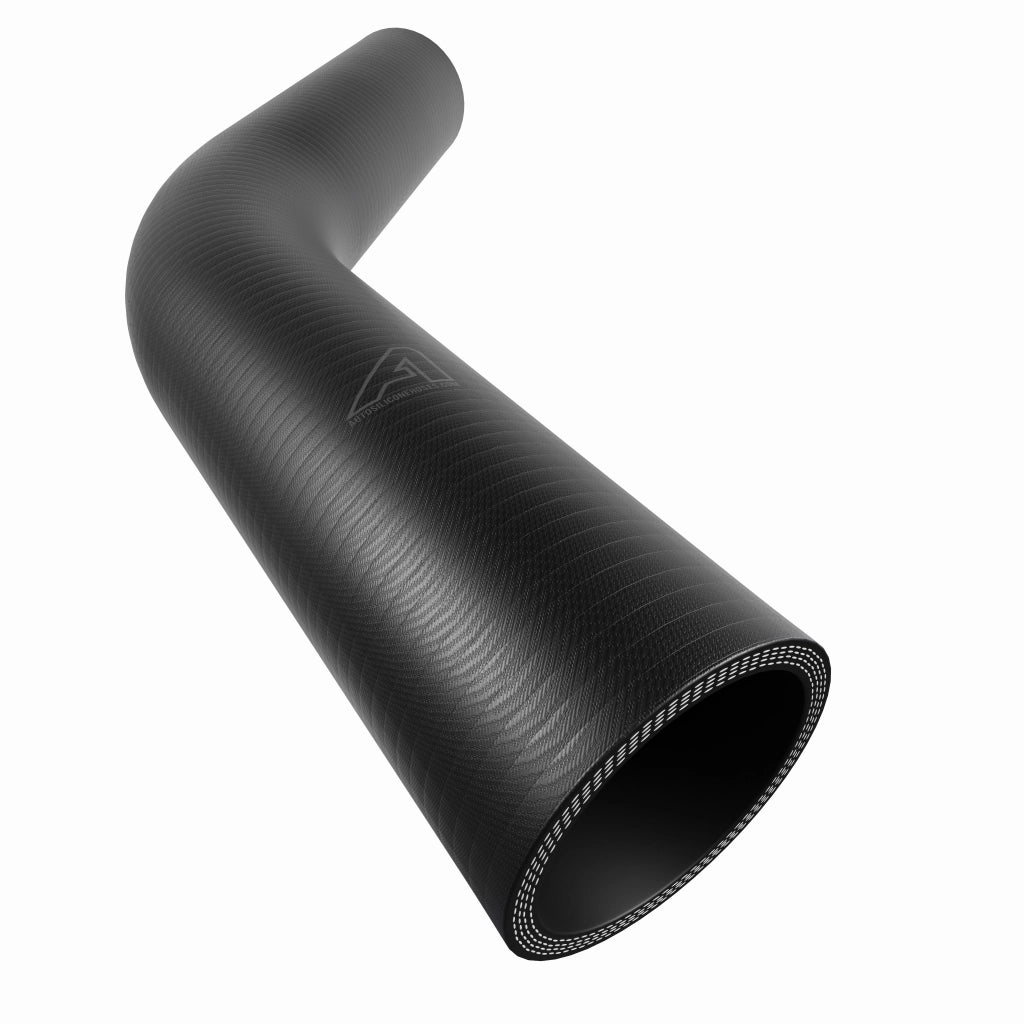

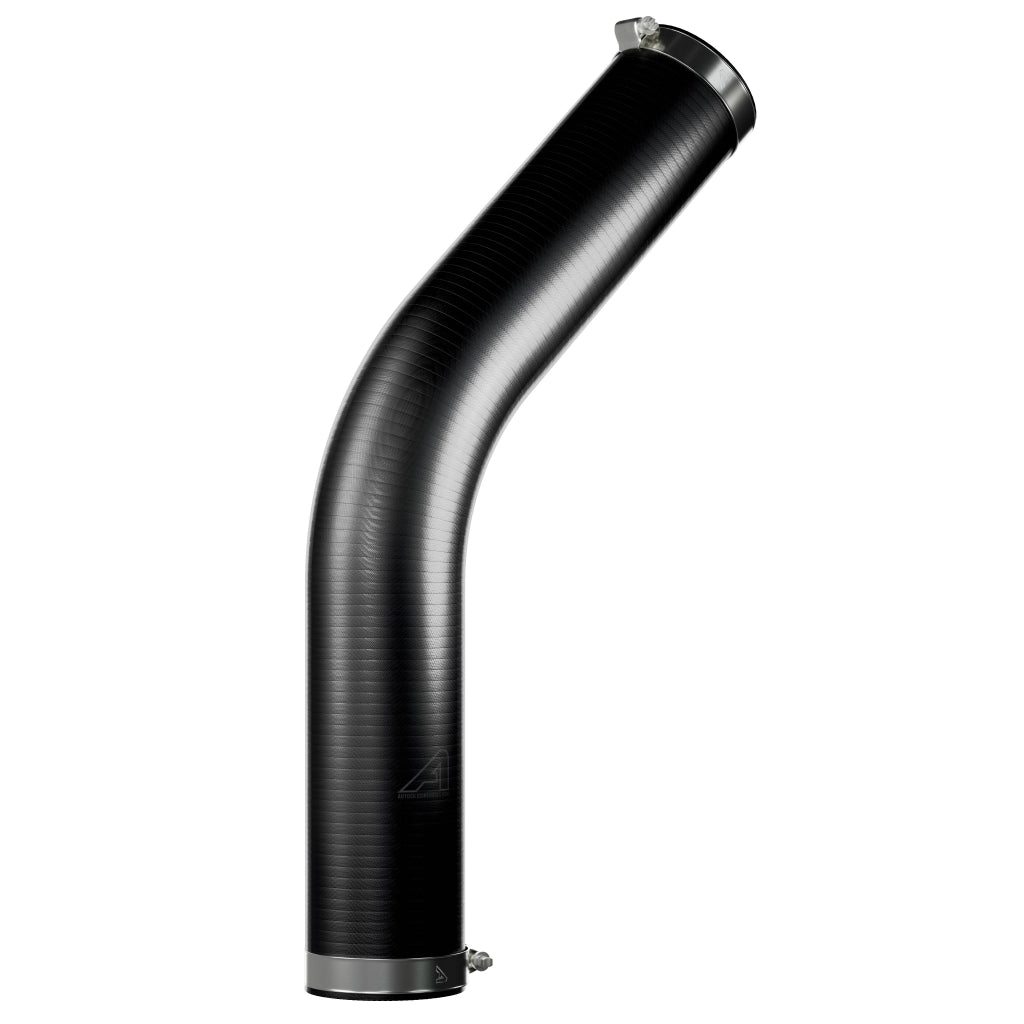

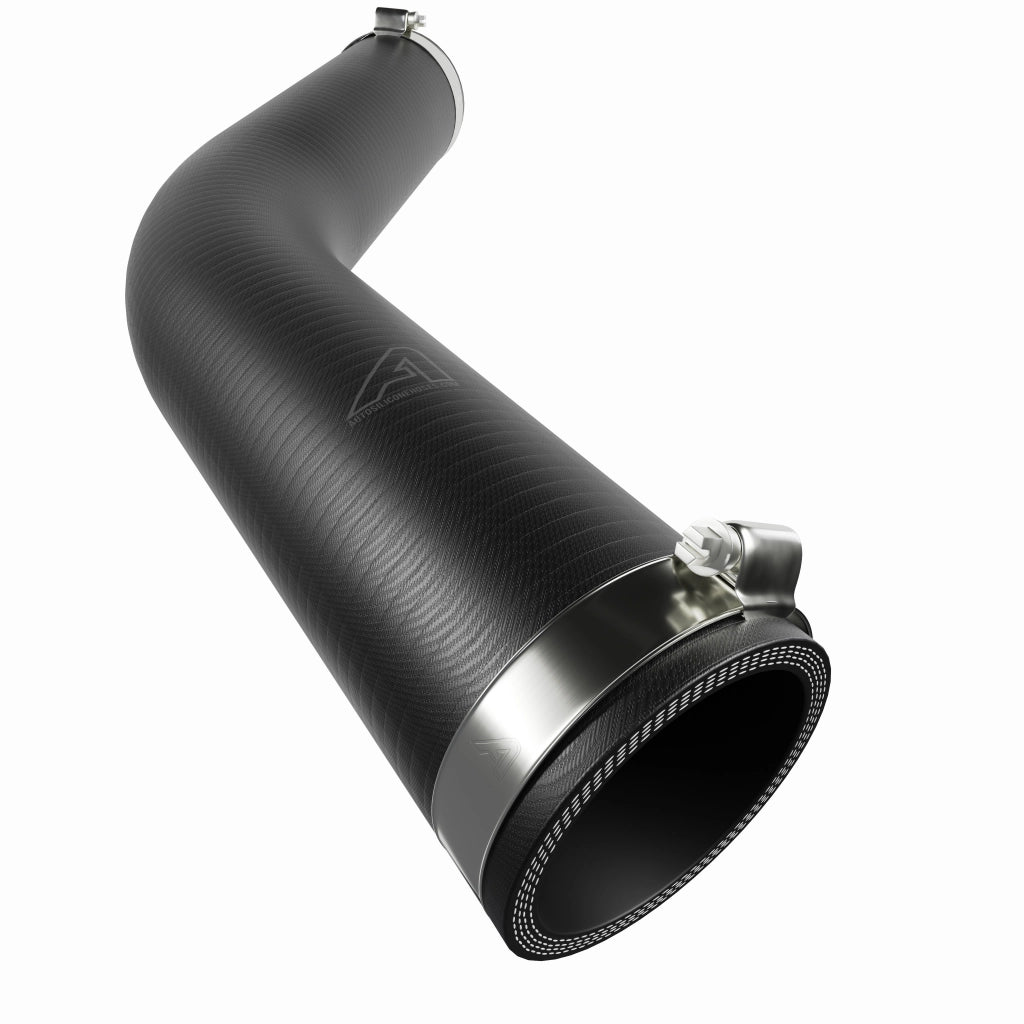

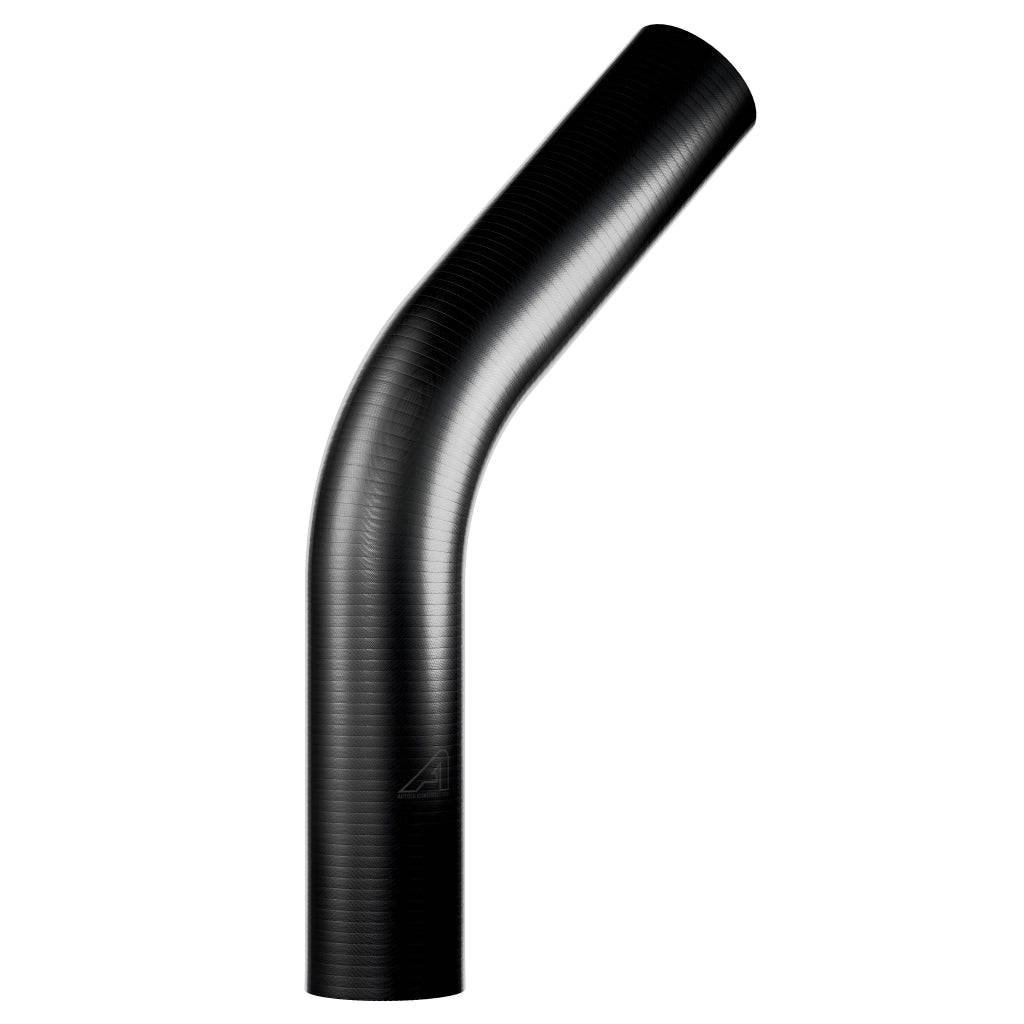

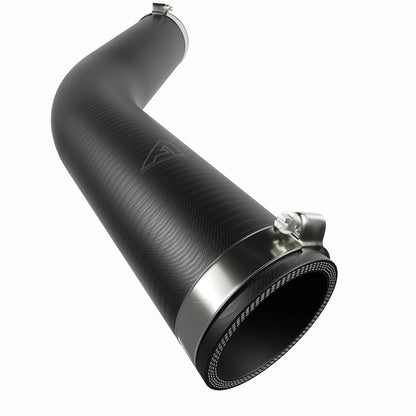

Silicone Wrapped 45° Elbow Hose provides a durable and high-performance solution for demanding automotive, industrial, and fluid transfer applications. Constructed with a fluoro silicone inner layer, fine mesh polyester yarn reinforcement, and an outer wrapped VMQ silicone layer, this elbow hose delivers superior flexibility, pressure stability, and chemical resistance. The 45-degree bend design allows efficient installation in confined systems where angled routing is essential, making it suitable for coolant, air, and fluid handling across a wide temperature range. Engineered to SAE J20 R6 standards, the wrapped silicone elbow maintains operating reliability from -60°C to +180°C, with peak tolerance up to +200°C. With multiple ply options for added strength and consistent wall thickness, the hose offers secure flow control and durability under vibration, pressure cycling, and thermal stress.

Key Features:

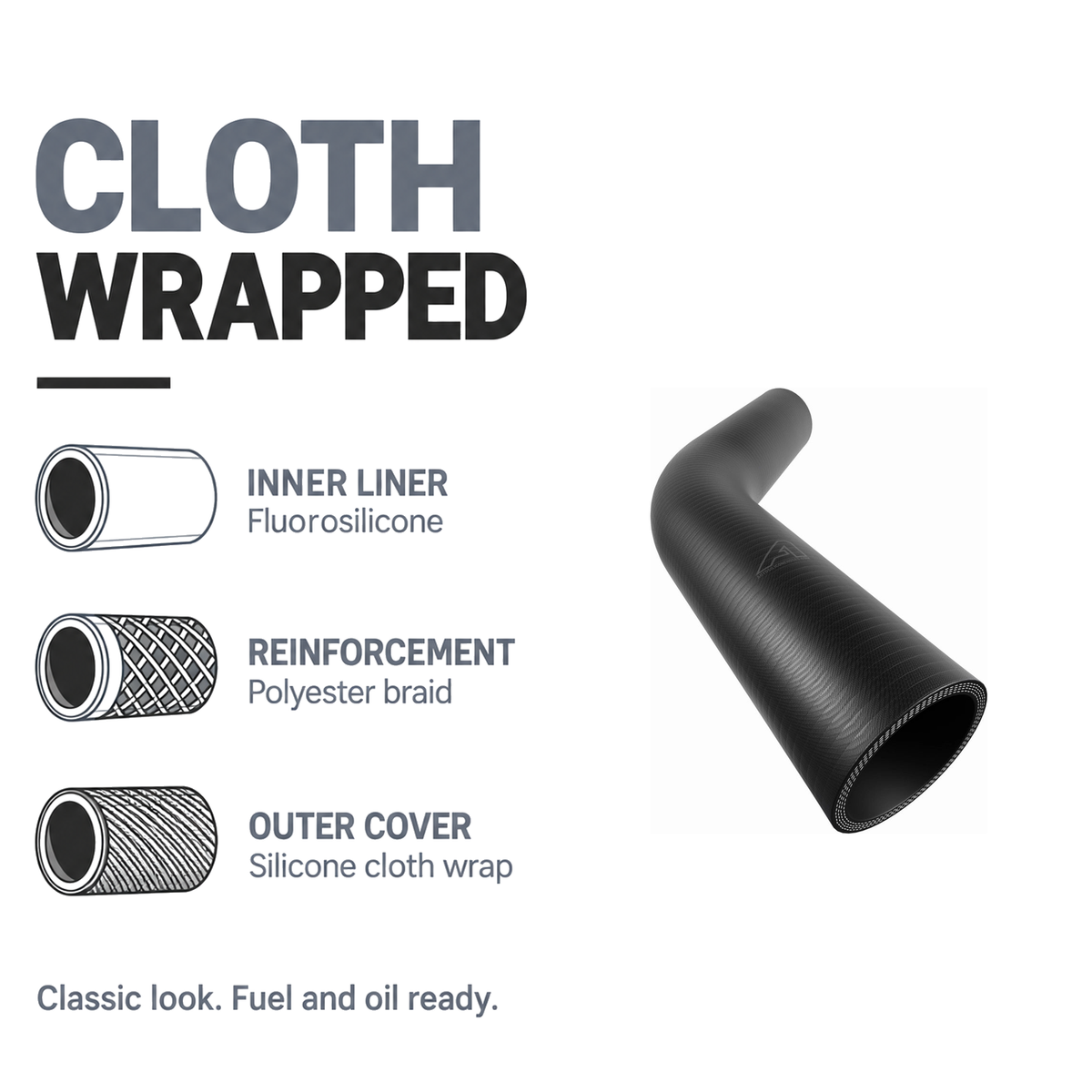

• Material (Inner Layer): Fluoro silicone for chemical and temperature resistance.

• Reinforcement: Fine mesh polyester yarn for strength and pressure handling.

• Outer Layer: Wrapped VMQ silicone for durability and weathering resistance.

• Construction: 3–4 ply, precision-engineered for dimensional stability.

• Operating Temperature: -60°C to +180°C (short peaks to +200°C).

• Working Pressure: Approx. 12.33 bar (small bore) down to 2.8 bar (large bore), size dependent.

• Bursting Pressure: Typically 3x working pressure for safety margin.

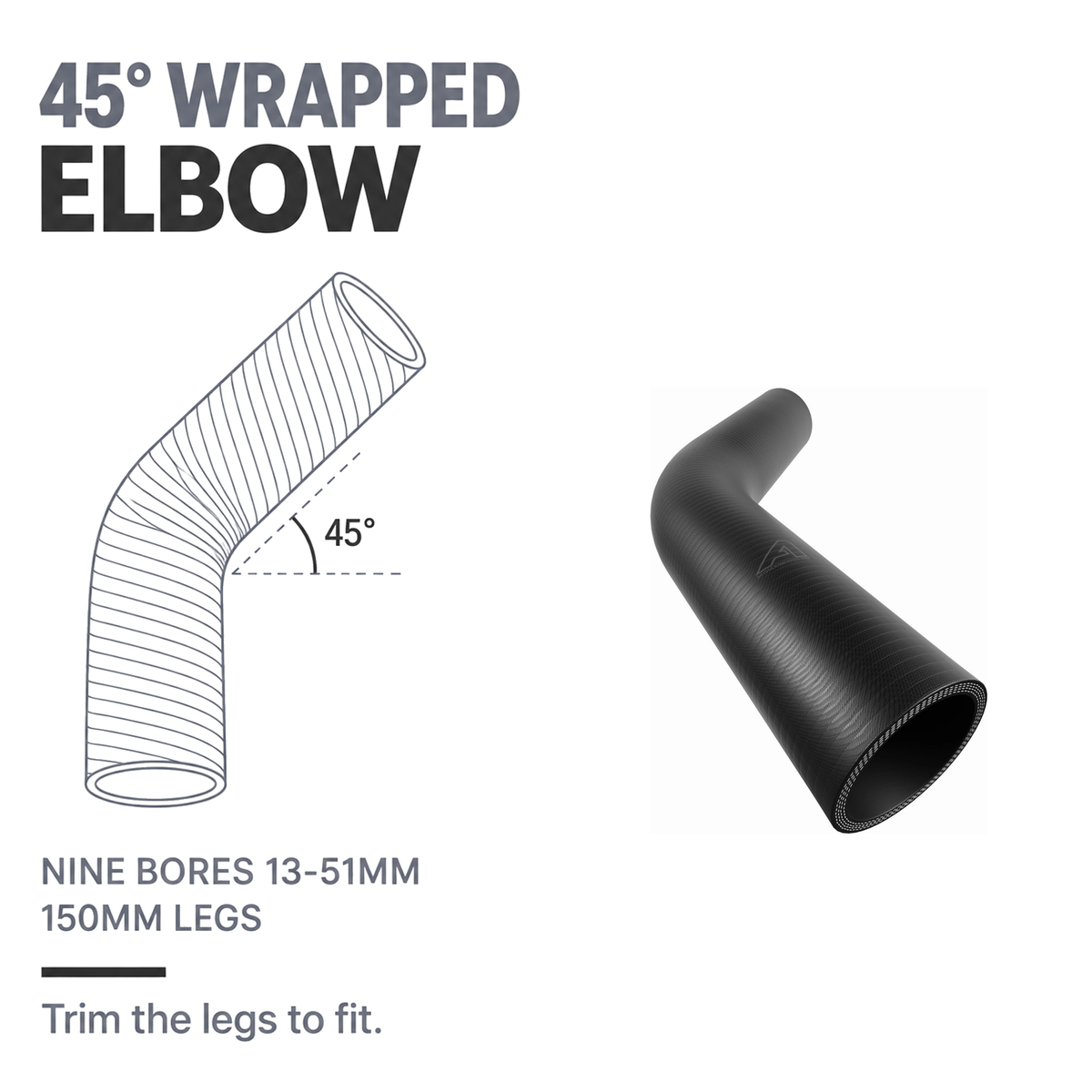

• Bend Angle: 45° with 150 mm leg length per side for easy fitment.

• Standards: SAE J20 R6 compliant.

The fluoro silicone inner lining provides excellent resistance to fuel, oil vapours, coolants, and other aggressive fluids, making the silicone wrapped elbow suitable for advanced automotive and industrial systems. The wrapped VMQ silicone exterior resists weathering, ozone, and long-term heat exposure, ensuring consistent performance in under-bonnet and harsh environments. Polyester mesh reinforcement delivers controlled flexibility while maintaining stability against working pressures ranging from 2.8 bar to 12.33 bar depending on bore size. With bursting pressures up to three times the working rating, the 45-degree silicone elbow offers a reliable margin of safety for fluid transfer and pneumatic use. The robust multi-ply structure supports durability under thermal cycling and vibration, while the wrapped surface finish enhances grip and abrasion resistance during assembly. Combined with its broad temperature range, this elbow hose represents a dependable choice for high-performance applications where reliability and endurance are critical.

Applications for silicone wrapped 45° elbows include automotive coolant and air intake systems, turbocharger and intercooler connections, marine and agricultural engines, pneumatic and vacuum systems, and industrial machinery requiring durable angled hose routing. The combination of fluoro silicone lining, polyester reinforcement, and wrapped VMQ silicone outer layer makes the hose ideal for fluid handling, air transfer, and thermal management tasks. Frequently used in motorsport, manufacturing, heavy equipment maintenance, and custom engineering projects, this 45-degree elbow hose ensures secure, long-life service in medium-pressure environments.
