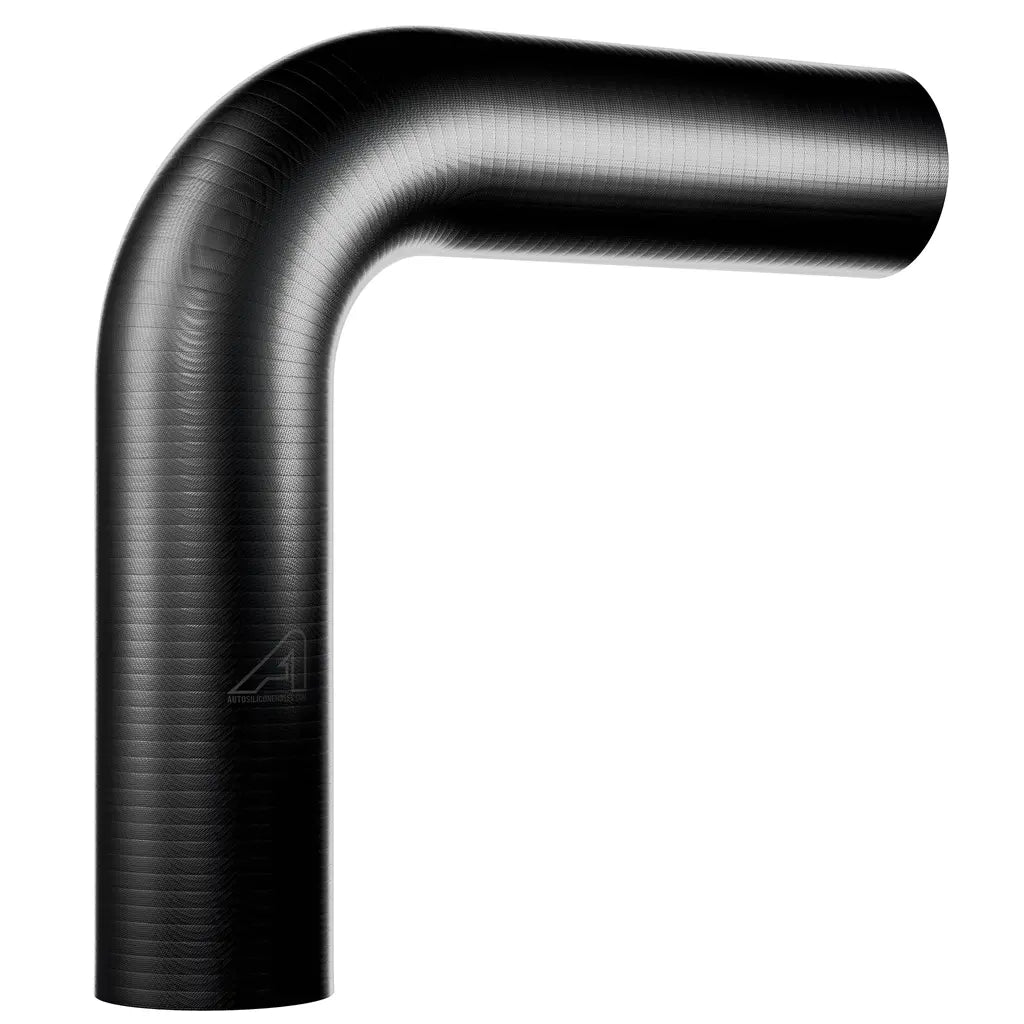

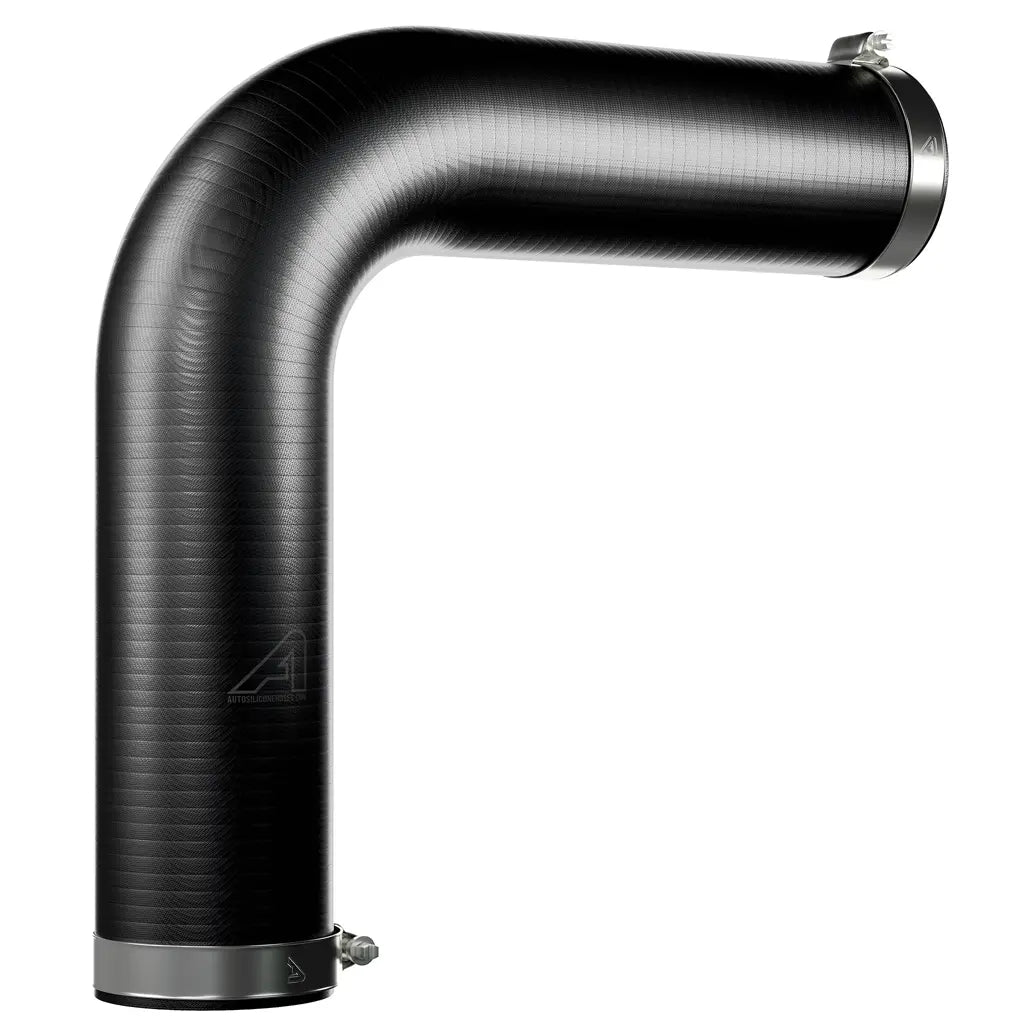

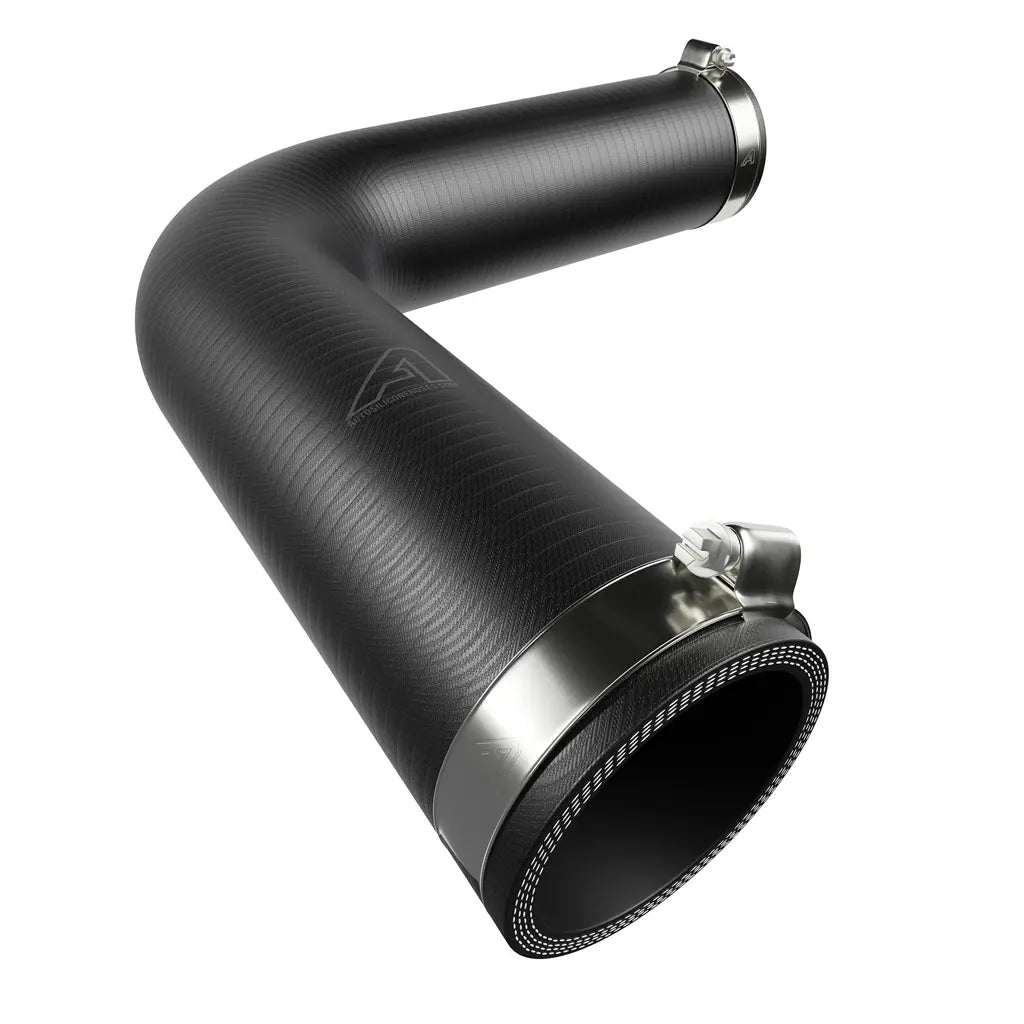

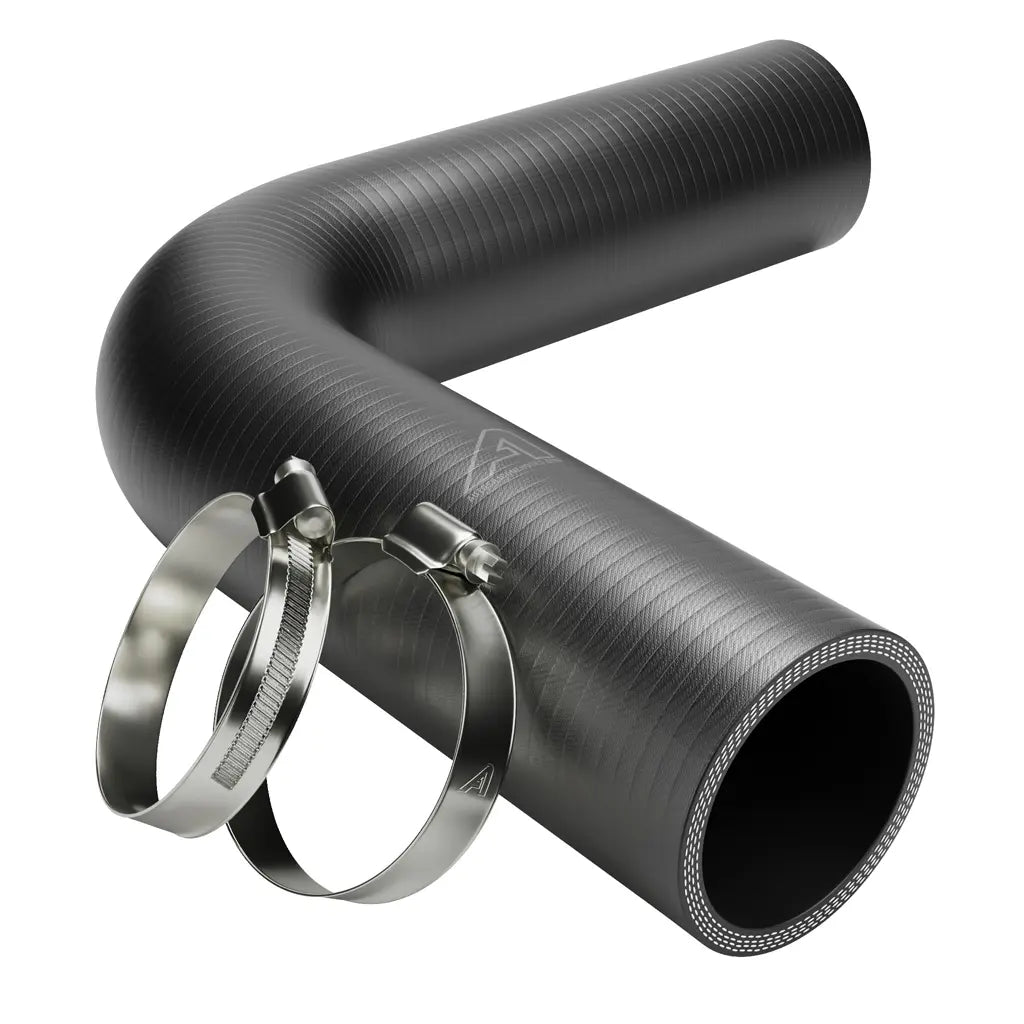

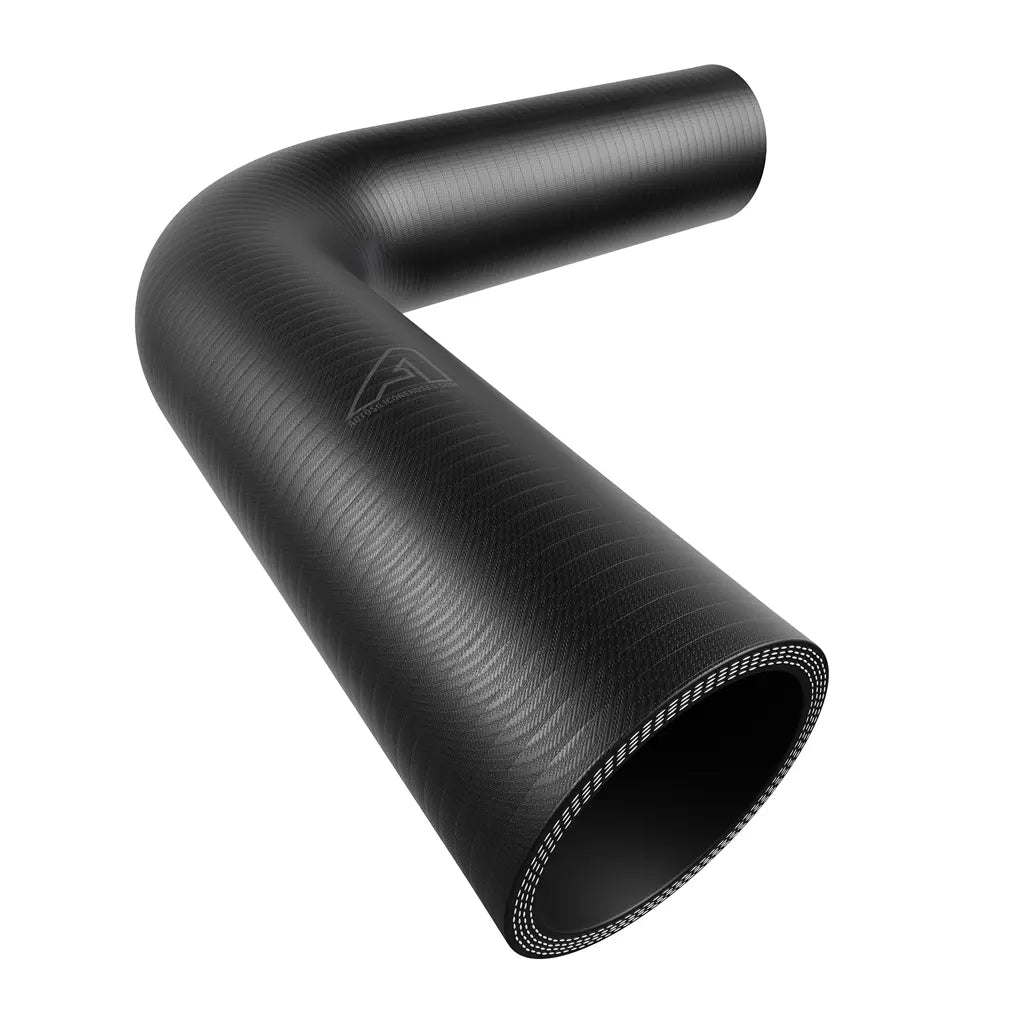

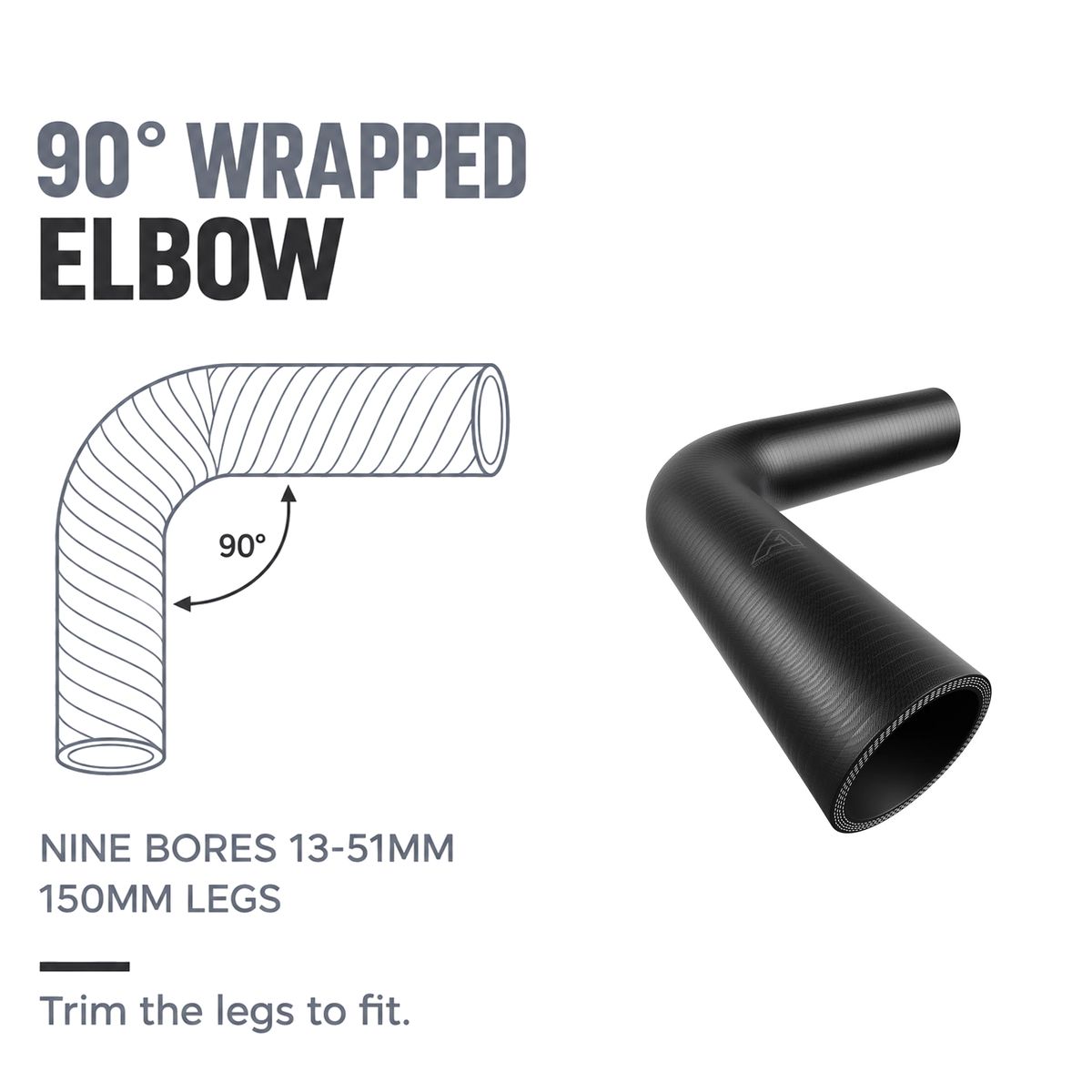

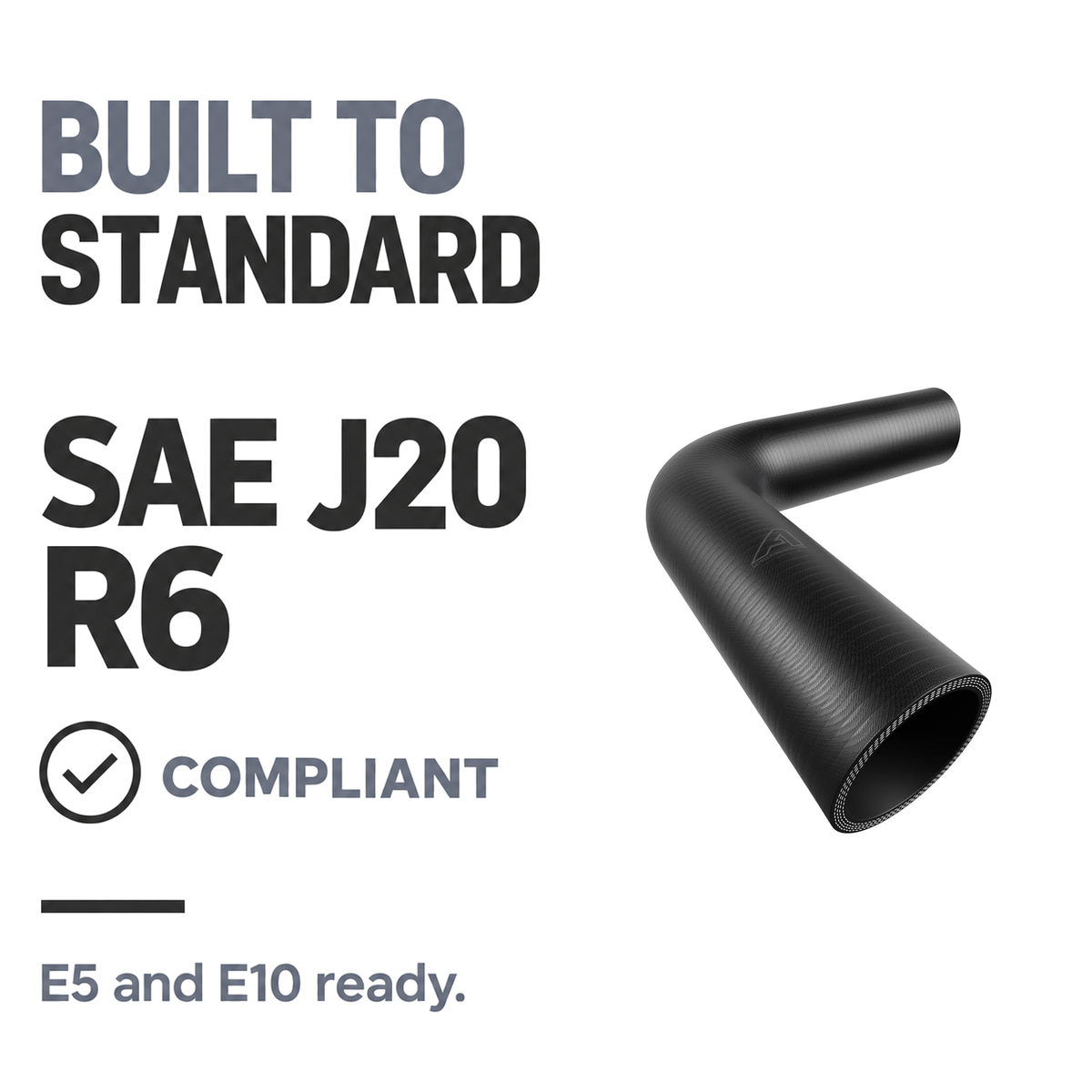

A Silicone Wrapped 90 Degree Elbow offers a durable and high-performance solution for fluid transfer systems requiring a tight bend radius. Manufactured with a fluoro silicone inner layer and a wrapped VMQ silicone outer layer, this silicone hose is reinforced with a fine mesh polyester yarn to provide exceptional strength and durability. The construction adheres to the SAEJ20R6 standard, ensuring reliability in demanding industrial environments. This 90-degree silicone elbow is engineered to handle extreme temperatures and a range of pressures, making it ideal for automotive, aerospace, and general industrial applications where a robust, flexible connection is needed.

Key Features:

• Inner Layer Material: Flouro Silicone

• Outer Layer Material: Wrapped VMQ Silicone

• Reinforcement: Fine Mesh Polyester Yarn

• Operating Temperature: -60°C to +180°C

• Peak Temperature: +200°C

• Working Pressure: Ranges from 2.8 Bar to 12.33 Bar, depending on diameter.

• Bursting Pressure: Ranges from 8.5 Bar to 37 Bar, depending on diameter.

• Bend Radius: Varies from 16mm to 70mm, depending on diameter.

• Number of Ply: 3 to 4, depending on diameter.

• Leg Length: 150mm on each leg.

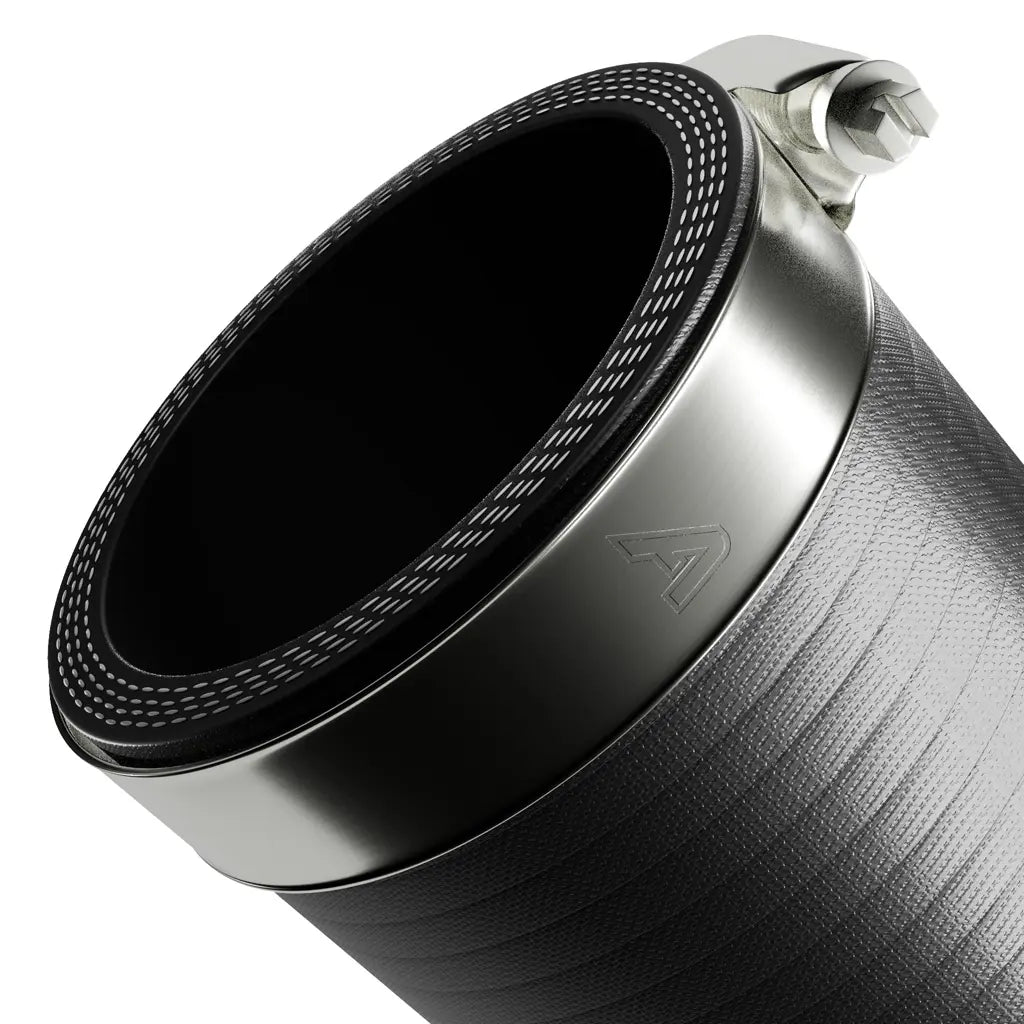

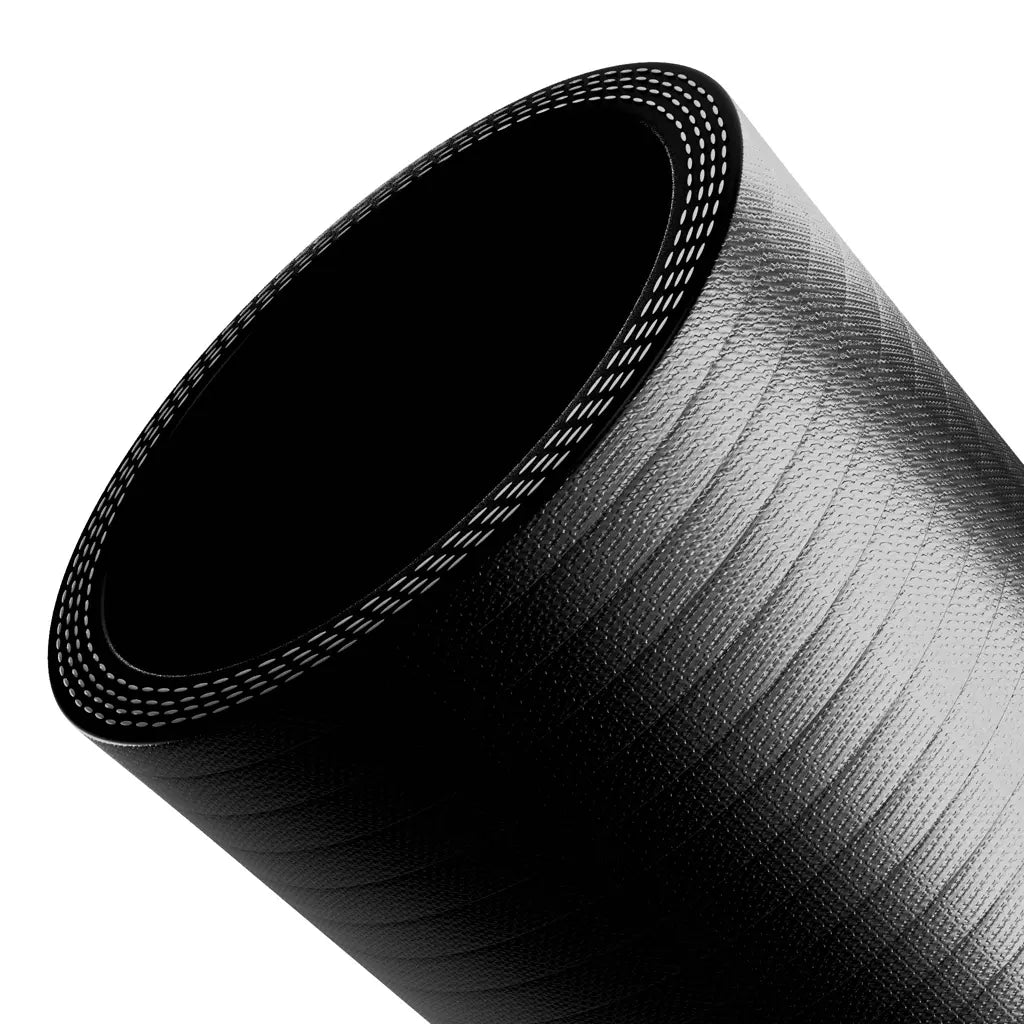

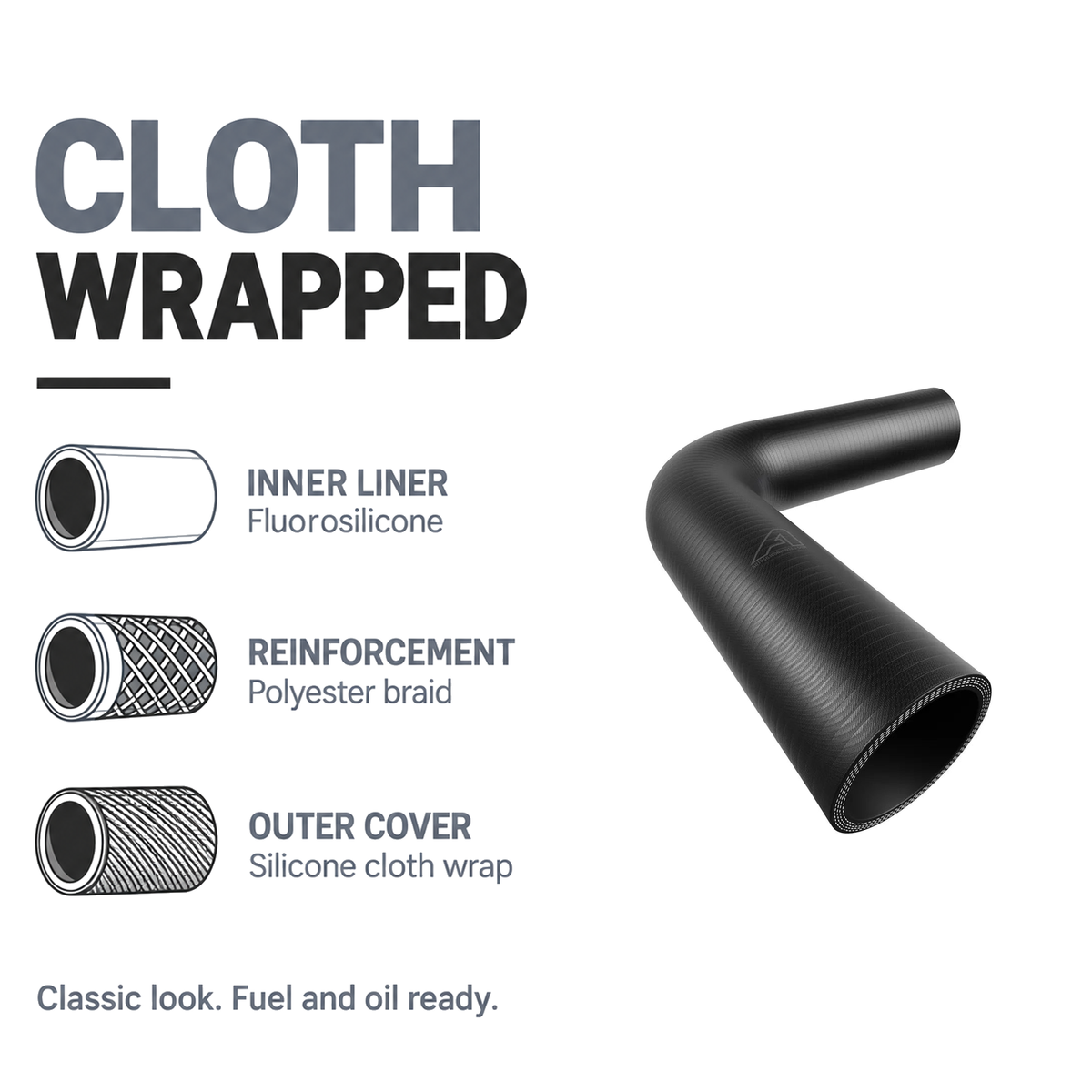

The build quality of this 90-degree silicone hose is a result of its multi-layered construction, which provides superior performance and longevity. The inner fluoro silicone layer ensures compatibility with various fluids, while the wrapped VMQ silicone outer layer provides protection against external elements and abrasion. Reinforcement with fine mesh polyester yarn adds significant burst and working pressure capabilities, allowing this silicone elbow to withstand high-stress conditions without compromising its structural integrity. The precise engineering of this silicone hose also allows for excellent flexibility and a tight bending radius, making it adaptable to complex fluid transfer pathways in industrial applications. Its robust design and high-quality materials guarantee long-term durability and reliable performance across a wide temperature range.

This wrapped silicone hose is suitable for a wide array of fluid transfer applications across various industries. It is commonly used in automotive cooling systems, turbocharger and intercooler pipework, and various industrial fluid handling systems. Its resistance to extreme temperatures makes it an excellent choice for aerospace and manufacturing processes where high-performance materials are a necessity. This durable and flexible component is also well-suited for general maintenance and repair operations, providing a reliable and long-lasting solution for connecting sections of pipe or tubing. Its robust construction ensures optimal performance in both positive and negative pressure systems, making it a versatile component for many industrial setups.
