Silicone Hump Connector

✅ 102mm Long ✅ Vibration Resistant ✅ 3 & 4 Ply Reinforcement
false

PRODUCT CONSTRUCTION.

Silicone Hump Connector

✅ 102mm Long ✅ Vibration Resistant ✅ 3 & 4 Ply Reinforcement
SKU
SHU025B-ASH
Brand
Auto Silicone Hoses
Application
Coolant Systems, Radiator & Water
Temperature Range
-60°C to +180°C
Internal Diameter
25mm
Internal Diameter Inch
1"
Outside Diameter
34mm
Outside Diameter Inch
1 5/16"
Main Body Length
102mm
Number Of Plys
3
Wall Thickness
4.5mm
Surface Finish
Gloss
Inner Layer Material
VMQ Silicone Rubber
Outer Layer Material
VMQ Silicone Rubber
Reinforcement
Polyester Braid
Conforms To
SAEJ20
Colour
Blue
Bursting Pressure
16.5 Bar
Working Pressure
5.5 Bar
Safety Factor
3 x Working Pressure
Download Datasheet
Your custom code is here (HTML, JavaScript, CSS, Shopify Liquid)
£11.21
Sale {price}%

£8.97 ex VAT

RELATED PRODUCTS.

ADD HOSE CLIPS & JOINERS.

Selected OD (Outside Diameter):
34mm
Match Hose OD To Clip Size Range
TBOLT-SPEC

DELIVERED TO YOUR DOOR.

Free standard delivery when you spend £40!

COLLECT IN STORE.

Start-EComposer-custom-liquid-pickup

Pickup Available At Silicone Hose UK.

Collect In 1 Hour

Silicone Hump Connector

Internal Diameter: 25mm, Color: Blue

  • Silicone Hose UK

    Pickup Available, collect in 1 hour

    HolmeBank Business Park, Station Road
    Unit 5
    Mirfield WF14 8NA
    United Kingdom

    +441924496111

End-EComposer-custom-liquid-pickup

BUY NOW. PAY LATER.

SKU
SHU025B-ASH
Brand
Auto Silicone Hoses
Application
Coolant Systems, Radiator & Water
Temperature Range
-60°C to +180°C
Internal Diameter
25mm
Outside Diameter
34mm
Main Body Length
102mm
Number Of Plys
3
Wall Thickness
4.5mm
Surface Finish
Gloss
Inner Layer Material
VMQ Silicone Rubber
Outer Layer Material
VMQ Silicone Rubber
Reinforcement
Polyester Braid
Conforms To
SAEJ20
Colour
Blue
Bursting Pressure
16.5 Bar
Working Pressure
5.5 Bar
Safety Factor
3 x Working Pressure
Download Datasheet

Description

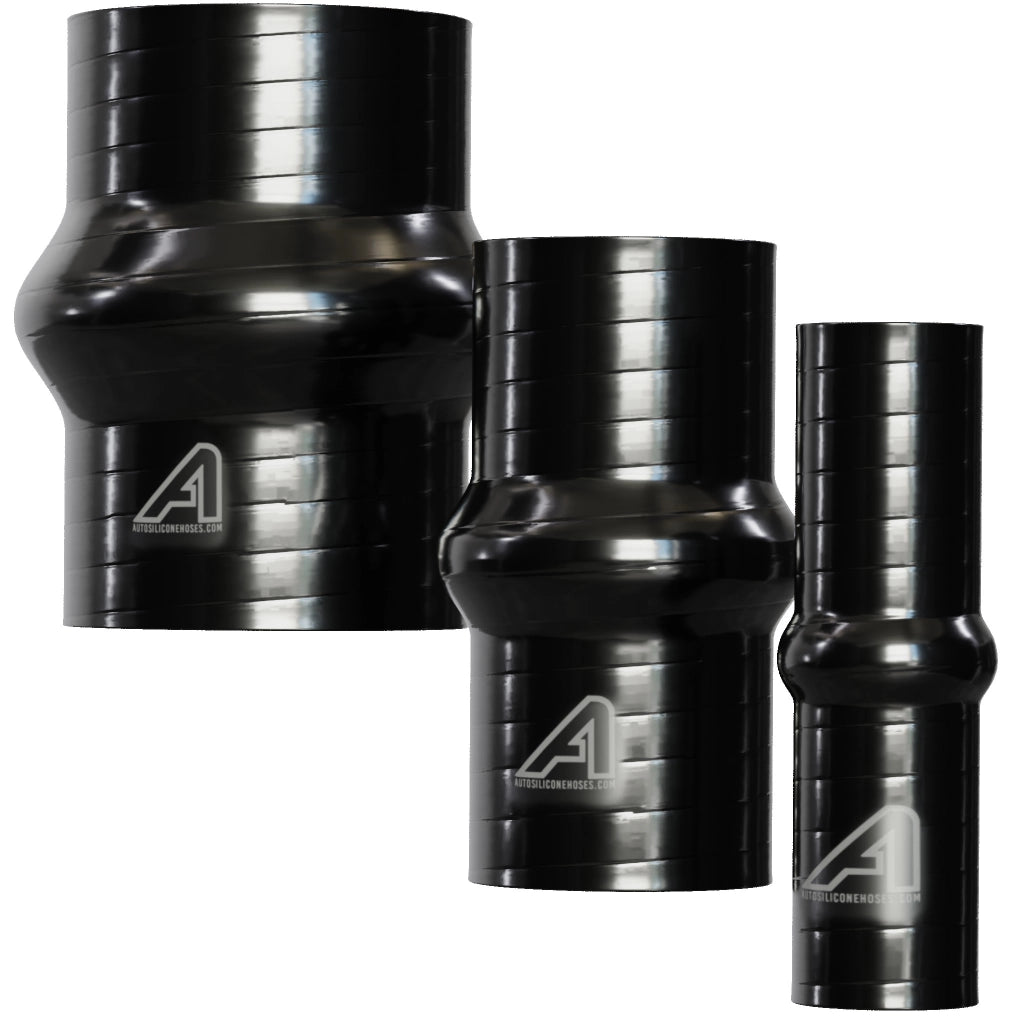

Introducing the Silicone Hump Connector, your reliable choice for various applications:

Key Specifications:

  • Temperature Rating: Ranging from -60¶øC to +180¶øC, this connector thrives in extreme temperature conditions.
  • Applications: Versatile and adaptable, it's perfect for use in: Radiator Hose, Hot Water Hose, Cooling Systems, Automotive Engines, Stationary Engines
  • Material: Crafted from Silicone Polyester Reinforcement, this connector offers exceptional durability and resistance.

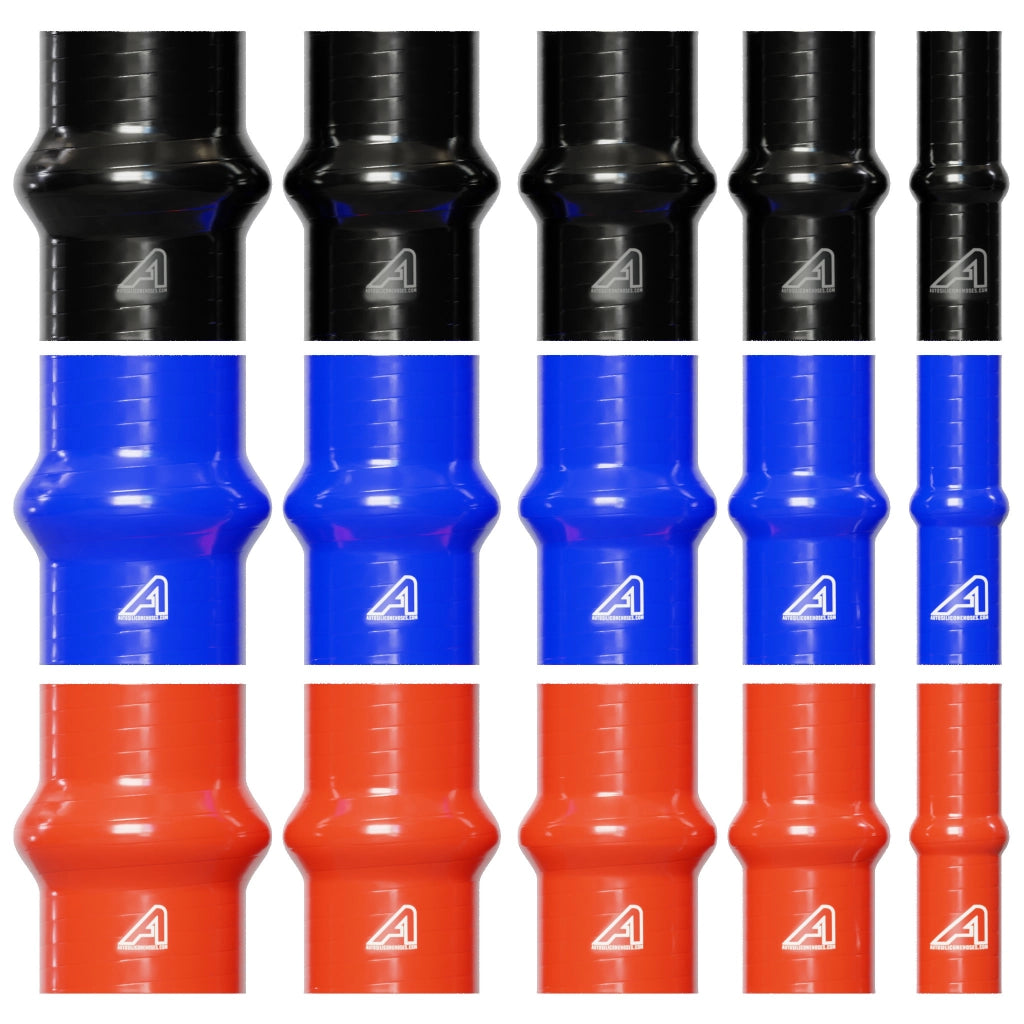

  • Size Range: Available in a range of sizes from 25mm to 102mm, making it suitable for a variety of applications.

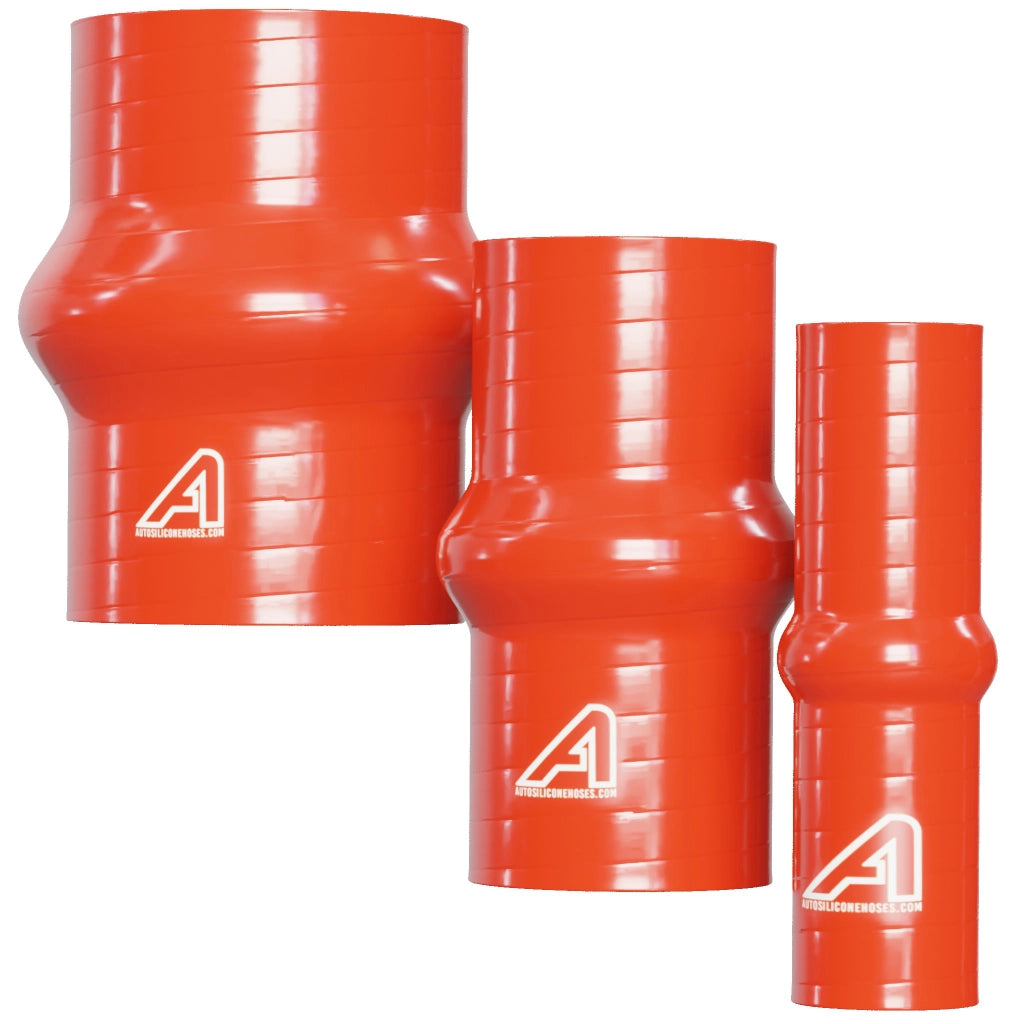

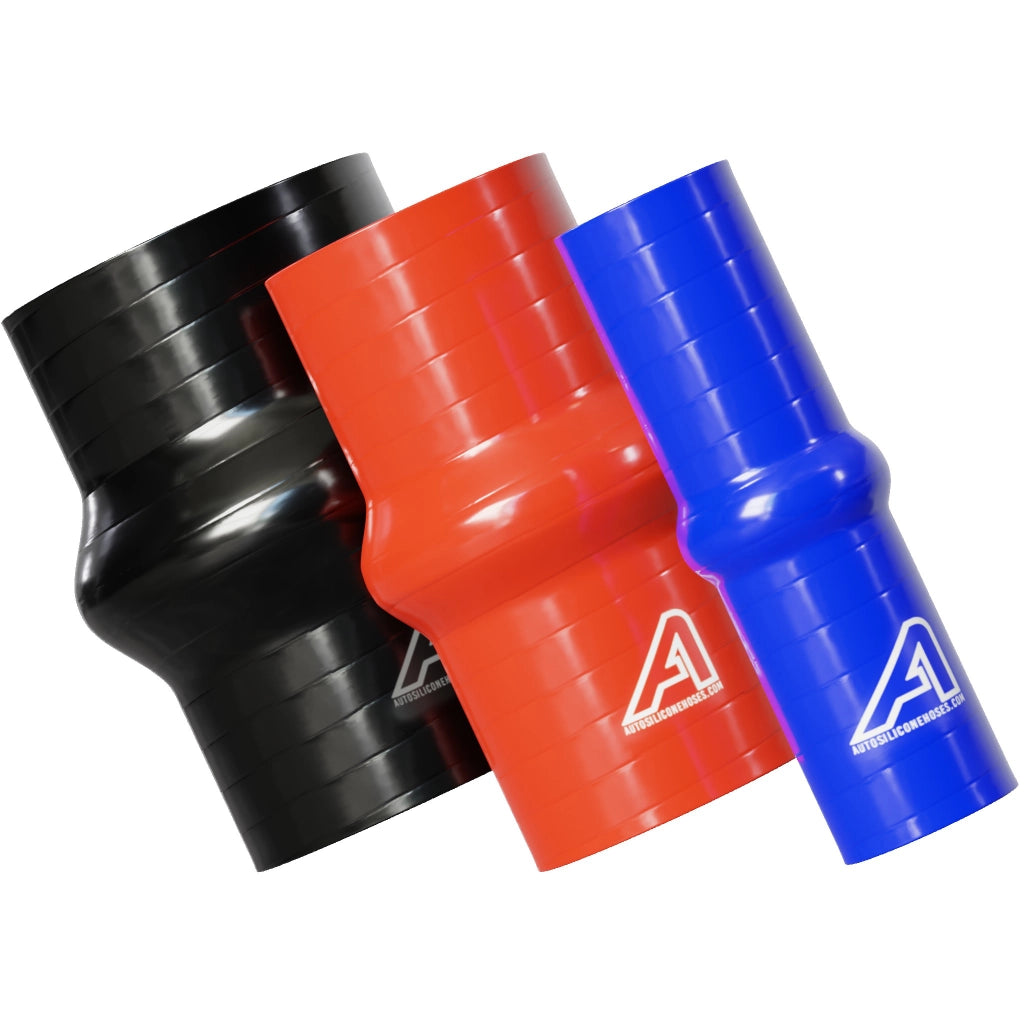

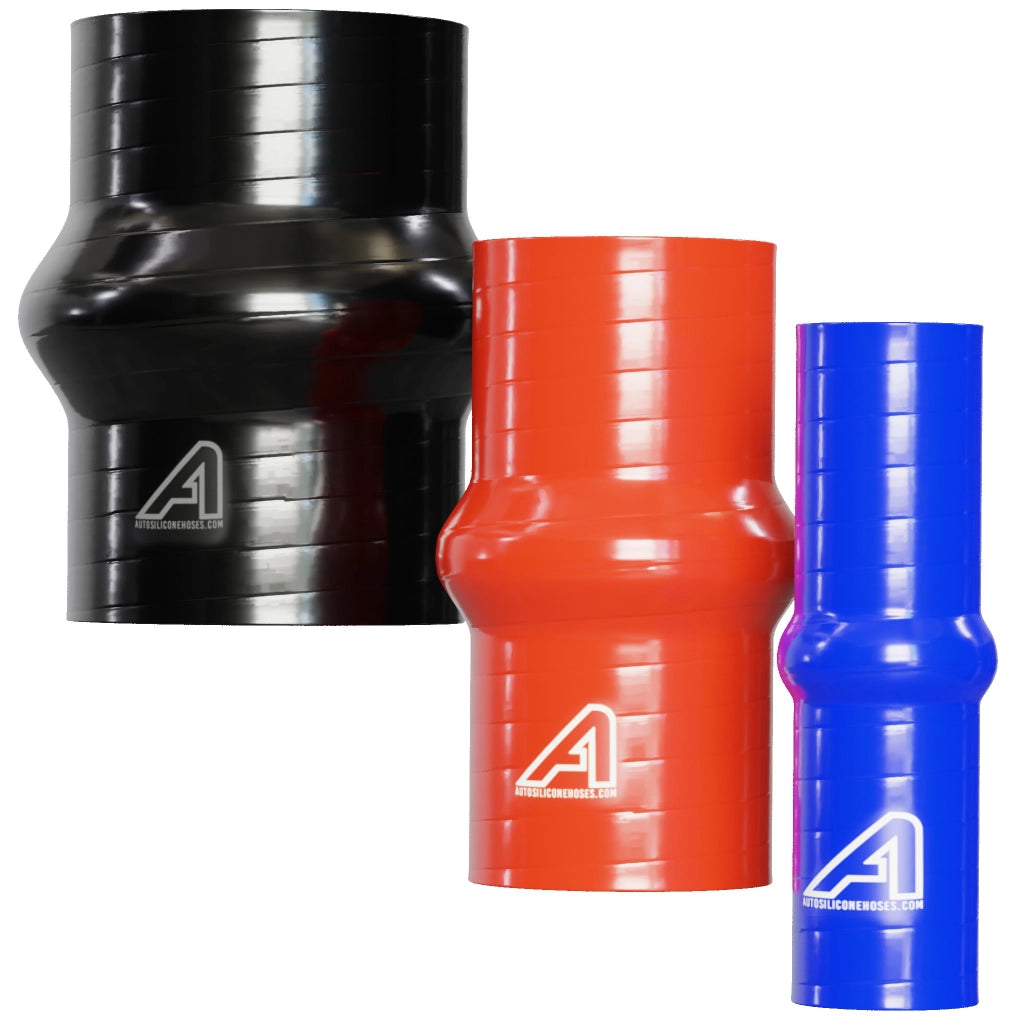

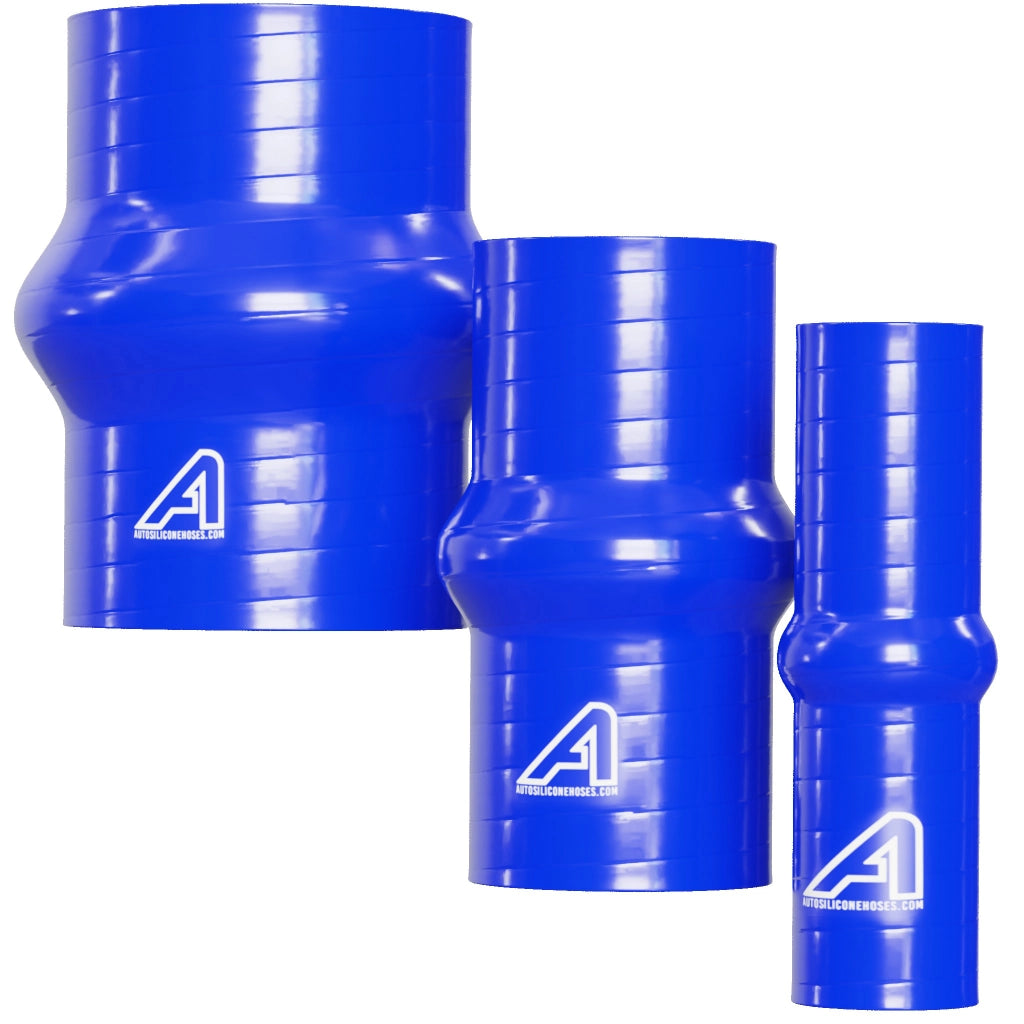

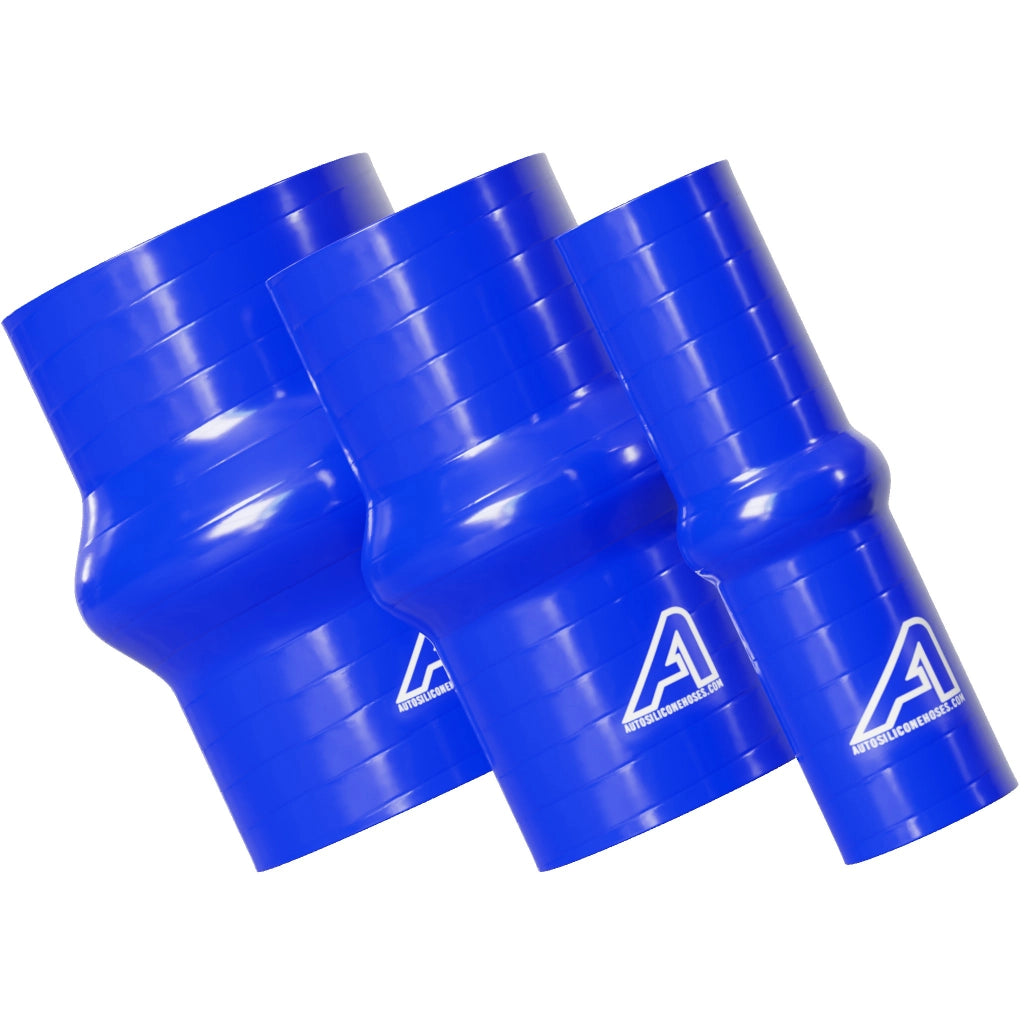

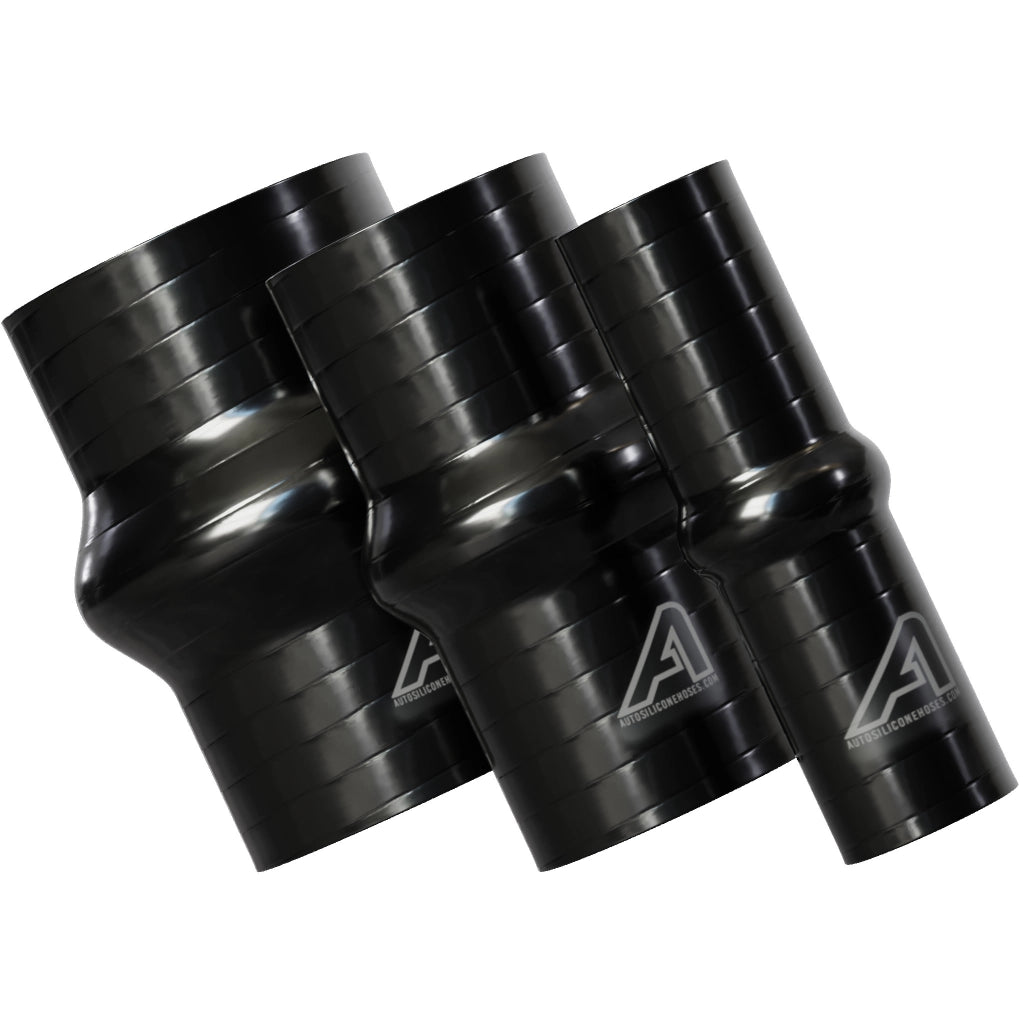

A hump hose is a flexible connector with a raised, hump-shaped profile that bridges gaps between misaligned components. It's designed to absorb vibrations, movements, and temperature-related expansion and contraction, making it a versatile solution for various applications, including automotive, HVAC, and industrial systems.

The Silicone Hump Connector ensures a secure and efficient connection for your radiator, hot water, and cooling systems. Whether you're working on automotive or stationary engines, this versatile connector performs reliably, even in extreme temperature conditions. Explore the different sizes available to find the perfect fit for your needs. Upgrade your system with this high-quality Silicone Hump Connector today.

Returns

For further details pertaining to our return policy, kindly refer to our dedicated Returns & Warranties page.We offer 30 day return policy on 99% of our items, some are considered Custom made products (This would include Alloy Joiners, Alloy Connector & Silicone Couplers as these are made specifically for each order and are classed as a 'tailor-made' product). These are non returnable.

For further details pertaining to our return policy, kindly refer to our dedicated Returns & Warranties page.
Gallery

FROM THE BRAND.

packingbanner





FREQUENTLY ASKED QUESTIONS.

Can Silicone Hoses Be Used For Fuel/Oil?

If you intend to use silicone hoses for fuel or oil applications, it is recommended to use Fluorolined Silicone, hoses are specifically designed to offer enhanced resistance to a wider range of chemicals, including fuels and oils.

Will Silicone Hose Stretch?

Silicone hoses are known for their flexibility and elasticity, which allows them to stretch to some extent. However, the degree to which a silicone hose can stretch depends on various factors, including its design, thickness, and the specific type of silicone used in its construction. We advise that our hoses can stretch a maximum of 3mm on the diameter.

Can Silicone Hoses Be Used For Coolant?

Yes, silicone hoses are commonly used for coolant applications. Silicone hoses are well-suited for coolant systems in various industries, including automotive, marine, and industrial applications.

How Long Do Silicone Hoses Last?

The lifespan of silicone hoses can vary depending on several factors, including the quality of the material, the specific formulation of the silicone, the environmental conditions, and the type of application. In general, silicone hoses are known for their durability and longevity, and they often outlast traditional rubber hoses in many applications.

What is the temperature rating of silicone hoses?

The temperature rating of silicone hoses is typically in the range of -60°C to +180°C (-76°F to 356°F). Silicone hoses are known for their ability to withstand a wide range of temperatures, making them suitable for various applications in industries such as automotive, aerospace, and manufacturing. It's important to note that specific products may have slightly different temperature ratings, so it's advisable to refer to the manufacturer's specifications for precise details on a particular silicone hose.
