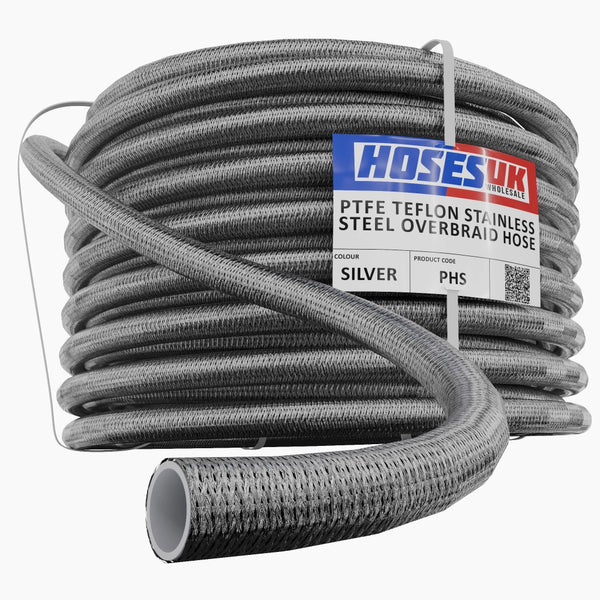

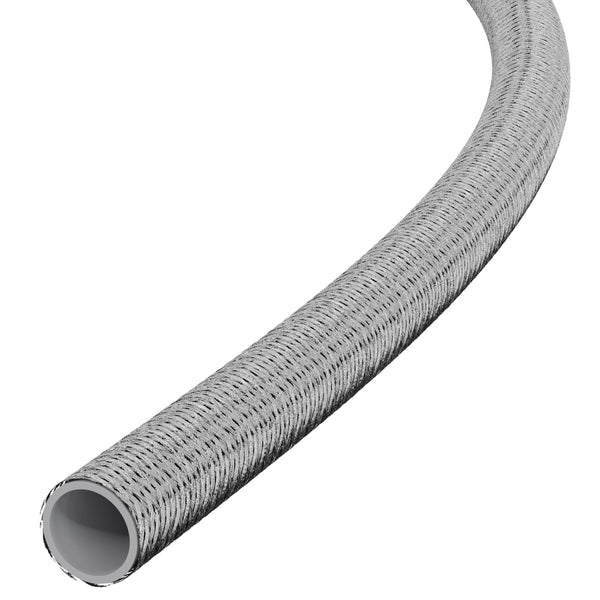

AN6 PTFE Lined Stainless Steel Braided Hose

PTFE Lined 304 Stainless Steel High Pressure

PHS008-ASH

£10.75

Delivery/Collection

Collect from Silicone Hose UK

Orders can be collected once you receive your ready-to-collect email.

Address

Silicone Hose UK

HolmeBank Business Park, Station Road
Unit 5
Mirfield WF14 8NA
United Kingdom

Get Directions

Opening hours

Monday	07:00 – 19:00
Tuesday	07:00 – 19:00
Wednesday	07:00 – 18:00
Thursday	07:00 – 18:00
Friday	07:00 – 17:00
Saturday	07:00 – 13:00
Sunday	Closed

Bank holidays may affect our opening hours and delivery times.

Returns

It's OK to change your mind
Return within 30 days for a full refund*. Learn More

Loved by our customers

Sorry, it's out of stock.

But we can let you know when it's back in.

Shop safely

Secure your shopping experience with various safe and trusted payment methods.

Shop safely with us

AN6 PTFE Lined Stainless Steel Braided Hose is a premium-grade, high-pressure hose designed for fluid transfer in performance automotive, motorsport, marine, and industrial applications. Constructed with a smooth-bore PTFE (polytetrafluoroethylene) liner, the hose provides outstanding chemical resistance and compatibility with a wide range of fluids including fuels, oils, hydraulic fluids, and coolants. Reinforced with a tightly woven stainless steel braid, the hose delivers excellent pressure stability, kink resistance, and abrasion protection. Built to AN6 specification, it is ideal for high-performance fuel systems, turbocharger oil feeds, and hydraulic line applications where durability and safety are paramount.

Key Features:

Specification: AN6 sizing for use with AN6 hose ends and fittings.
Inner Layer: Smooth-bore PTFE liner for maximum chemical resistance and fluid compatibility.
Reinforcement: Stainless steel braided outer for strength, pressure stability, and kink resistance.
Operating Temperature: -70°C to +260°C continuous service.
Burst Pressure: Minimum 3x working pressure for safety margin.
Compatibility: Suitable for petrol, diesel, ethanol blends, oils, brake fluids, hydraulic fluids, and coolants.
Applications: High-performance fuel delivery, turbo oil feed and return, hydraulic brake and clutch systems, power steering, and cooling circuits.

The PTFE liner provides full resistance to modern ethanol-based fuels and aggressive chemicals, eliminating permeation and ensuring long-term stability. The stainless steel braid prevents expansion under pressure, offering consistent performance in high-stress environments, while also protecting against abrasion and mechanical wear. Lightweight yet exceptionally strong, the hose is designed for maximum safety and reliability in motorsport and performance applications. Compatible with AN6 fittings, it ensures secure, leak-free connections for critical fluid systems.

Applications include fuel lines, turbocharger oil supply and return, brake and clutch hydraulics, power steering hoses, and industrial fluid transfer systems. AN6 PTFE Lined Stainless Steel Braided Hose is trusted in motorsport, performance builds, and custom engineering projects where chemical resistance, high-pressure capability, and durability are essential.

Specifications

Type: Stainless Steel Braided PTFE Hose
Material: Stainless Steel
Colour: Silver
Standard: PTFE

Size Guide

Inside Diametermm	Outside Diametermm	Wall Thicknessmm	Working Pressurebar	Bursting Pressurebar	Bending Radiusmm	Coil Weightkg	Coil Lengthm
8	12.5	2.25	80	240	56	12	100

Measurements are nominal and may vary slightly.

How to measure ID

Measure the pipe, not the old hose

Heat and age make a used hose swell and go out of round. Take your reading across the metal outlet the hose slides onto — that measurement is your ID.

Use vernier calipers

Set the outer jaws across the widest point of the pipe. A tape measure round a curve reads low by a millimetre or two — enough to buy the wrong size.

Take three readings, keep the largest

Rotate 60° between each. If they disagree the pipe is oval; size to the biggest figure so the hose still seals.

Round to the nearest listed bore

Never go up: a bore wider than the fitting will not grip, whatever the hose is made of. If you land between listed sizes take the smaller bore, and secure it with a clip.

Order by ID, always. Every hose on this site is listed by internal diameter. OD is given for clearance only — it changes with wall thickness and ply count, so it is never the ordering size. On reducers, quote both ends, largest first.

Construction

1 · Reinforcement

Stainless steel braided outer

Strength, pressure stability, and kink resistance · Minimum 3x working pressure for safety margin

2 · Inner liner

Smooth-bore PTFE liner

Maximum chemical resistance and fluid compatibility · -70°C to +260°C continuous service

Auto Silicone Hoses

AN6 PTFE Lined Stainless Steel Braided Hose

PTFE Lined 304 Stainless Steel High Pressure

AN6 braided. Eighty bar.

A PTFE liner inside a braided outer, for fuel and oil lines.

INTERNAL DIAMETERS

8mm

RATED

−70°C to +260°C

WORKING PRESSURE

80 bar across all sizes

MATERIAL

PTFE

SOLD BY

The metre

Product gallery

Frequently Asked Questions.

Answers to the questions we’re asked most about sizing, fitment and performance.

Still can't find your answer?

What is PTFE braided hose?

An AN6 hose with a PTFE inner tube inside a stainless steel braid. PTFE is chemically inert and essentially impermeable, which makes it the choice for aggressive fuels and anywhere permeation through the hose wall is a problem.

When do I need PTFE rather than rubber-lined?

For E85, methanol and race fuels, for high-pressure fuel injection, and where fuel smell through the hose wall is unacceptable. It is also better for long-term storage, since it does not degrade with age or ethanol content.

Why the bare stainless finish?

Bare stainless braid gives maximum abrasion protection and the traditional look. Bear in mind it is abrasive itself, so it must be properly supported and kept clear of panels, looms and brake lines.

What fittings does it need?

AN6 hose ends designed specifically for PTFE. The olive and collet arrangement differs from rubber-lined AN hose, and using the wrong ends is a common and expensive mistake - the joint will leak or let go. Check your fittings are PTFE-specific before assembling.

How do I cut it?

Wrap the cut area tightly in tape, cut through the tape with a sharp cut-off wheel or proper hose shears, then remove the tape. That stops the braid fraying. Take care not to crush or distort the PTFE liner - a deformed liner will not seal in the fitting.

Is it as flexible as rubber hose?

No, noticeably less. PTFE has a larger minimum bend radius and does not flex as freely, so routing needs more planning and gentler sweeps. Do not force it round a tight corner near a fitting - use an angled hose end instead.
