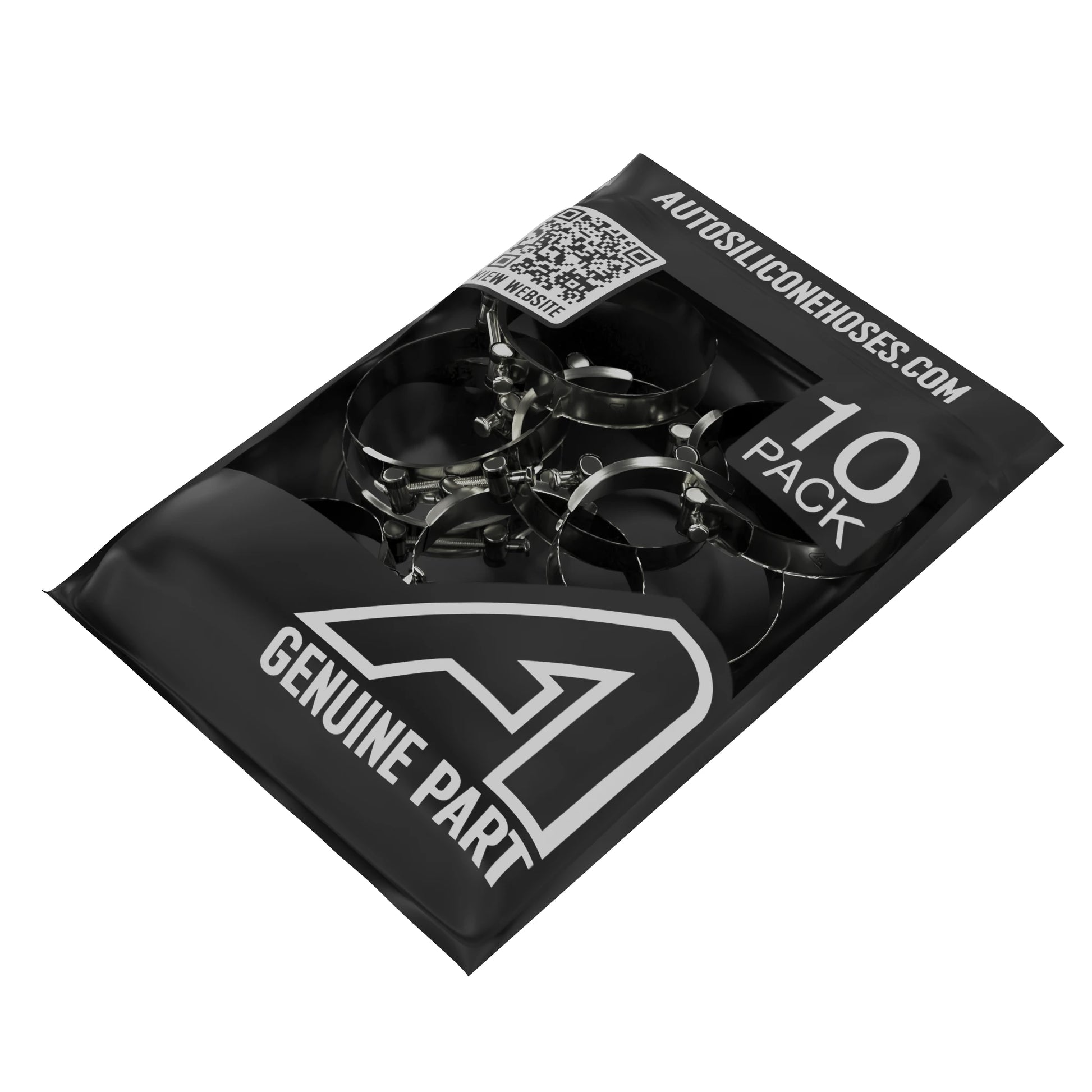

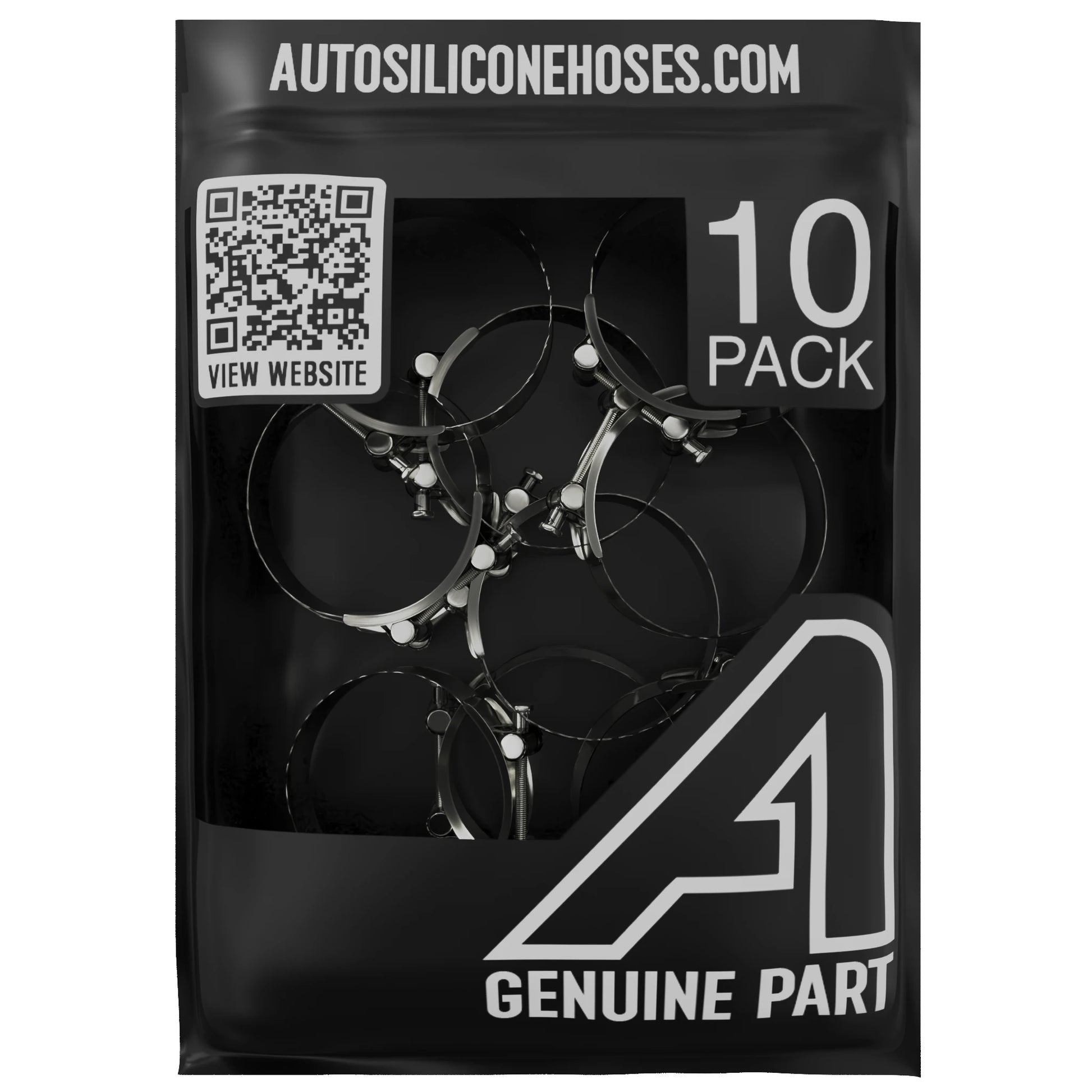

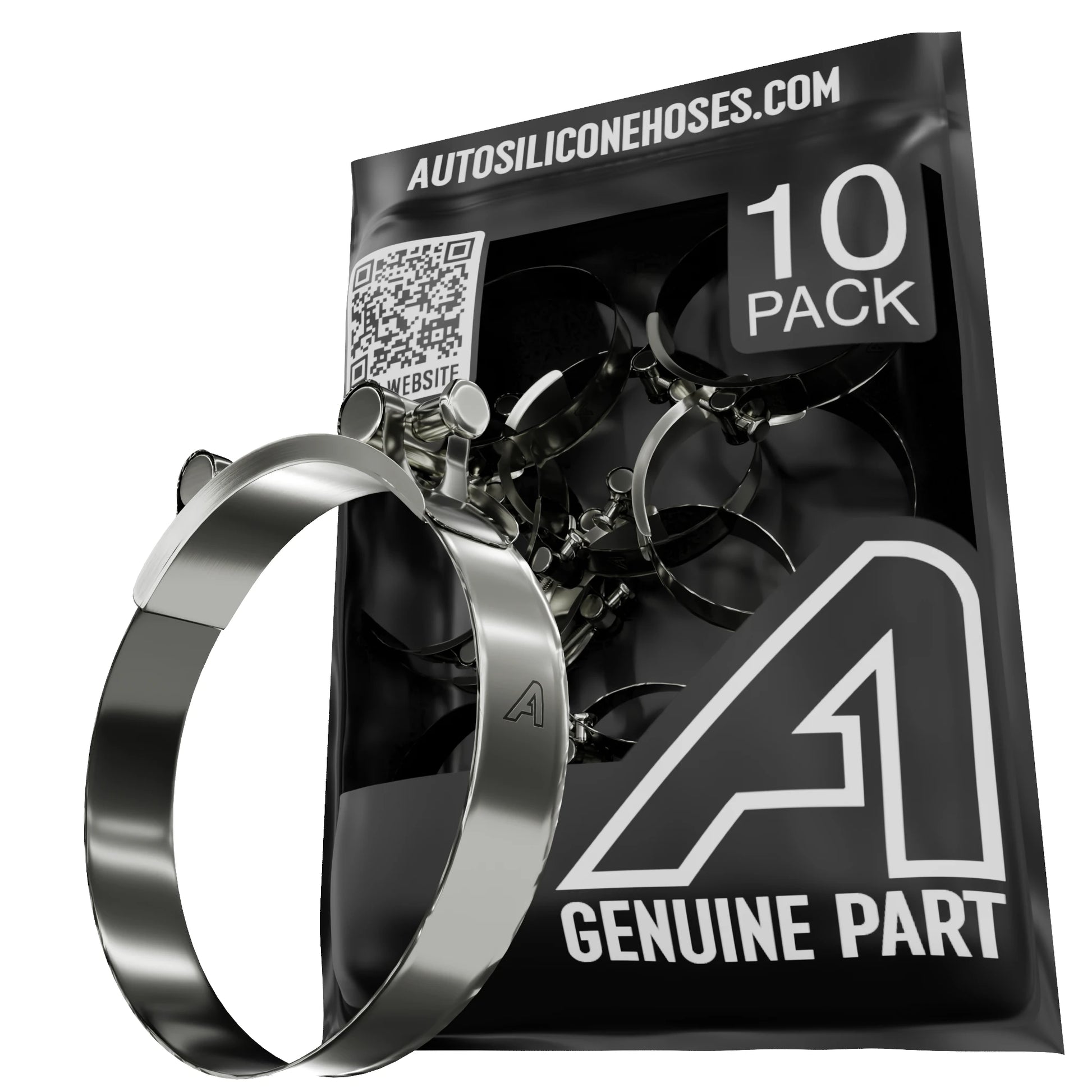

T-Bolzen-Schlauchschelle - 10er-Pack

Strapazierfähig Breites Band Glatte Innenseite

PTB017019-ASH#10

£10.90

Delivery/Collection

Collect from Silicone Hose UK

Orders can be collected once you receive your ready-to-collect email.

Address

Silicone Hose UK

HolmeBank Business Park, Station Road
Unit 5
Mirfield WF14 8NA
Vereinigtes Königreich

Get Directions

Opening hours

Monday	07:00 – 19:00
Tuesday	07:00 – 19:00
Wednesday	07:00 – 18:00
Thursday	07:00 – 18:00
Friday	07:00 – 17:00
Saturday	07:00 – 13:00
Sunday	Closed

Bank holidays may affect our opening hours and delivery times.

Returns

It's OK to change your mind
Return within 30 days for a full refund*. Learn More

Shop safely

Secure your shopping experience with various safe and trusted payment methods.

Shop safely with us

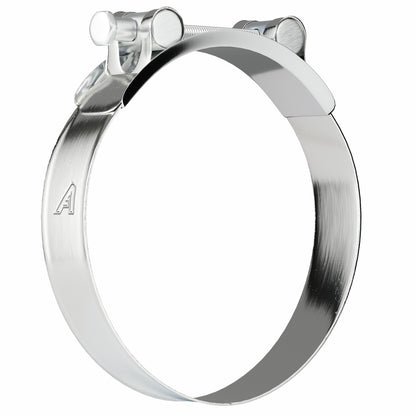

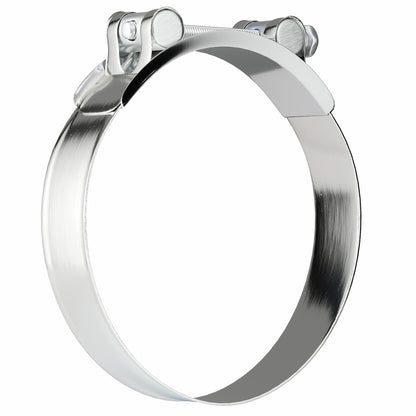

Unsere T-Bolzen-Schlauchschellen sind für eine sichere und zuverlässige Befestigung konzipiert und die ideale Lösung für Hochleistungsanwendungen. Diese Schellen wurden speziell für die Verwendung mit Silikon-, Gummi- und PVC-Schläuchen entwickelt und bieten eine langlebige und vibrationsfeste Verbindung. Damit sind sie für Automobil-, Industrie- und Schiffssysteme unverzichtbar.

Jede Klemme ist aus hochwertigen Materialien gefertigt und besteht aus W4-Edelstahl für das Band und das Gehäuse, was eine hervorragende Korrosions- und Rostbeständigkeit gewährleistet, während der Bolzen W1-verzinkt ist und zusätzliche Haltbarkeit und Langlebigkeit in anspruchsvollen Umgebungen bietet. Das elegante Silberfinish unterstreicht ihr professionelles Aussehen und fügt sich nahtlos in Ihr Setup ein.

Diese Klemmen sind für extreme Temperaturen ausgelegt und funktionieren zuverlässig unter Bedingungen von -60 °C bis +180 °C. Egal, ob Sie mit Kühlmittelleitungen, Ansaugschläuchen oder unter Druck stehenden Schläuchen arbeiten, dieser vielseitige Klemmensatz sorgt für festen Halt und auslaufsichere Abdichtung.

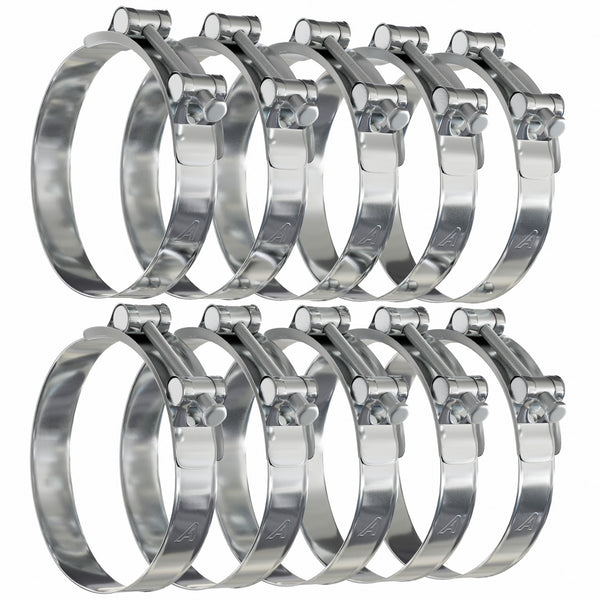

Dieses 10er-Pack ist perfekt für Werkstätten, Mechaniker und Heimwerker, die konstante Leistung und dauerhafte Qualität verlangen. Investieren Sie in ein Produkt, das Stärke, Präzision und Anpassungsfähigkeit für Ihre anspruchsvollsten Projekte vereint.

Specifications

Type: T-Bolt Hose Clamp
Colour: Silver
Standard: W1 / W4

Size Guide

Clip Range Diameter	Band Widthmm	Screw	Break Torque
17mm - 19mm	18	M5 x 40	6
20mm - 22mm	18	M5 x 40	6
23mm - 25mm	18	M5 x 40	6
26mm - 28mm	18	M5 x 40	6
29mm - 31mm	20	M6 x 50	12
32mm - 35mm	20	M6 x 50	12
36mm - 39mm	20	M6 x 50	12
40mm - 43mm	20	M6 x 50	12
44mm - 47mm	22	M6 x 55	12
48mm - 51mm	22	M6 x 55	12
52mm - 55mm	22	M6 x 55	12
56mm - 59mm	22	M6 x 55	12
60mm - 63mm	22	M6 x 55	12
64mm - 67mm	24	M8 x 70	24
68mm - 73mm	24	M8 x 70	24
74mm - 79mm	24	M8 x 70	24
80mm - 85mm	24	M8 x 70	24
86mm - 91mm	24	M8 x 70	24
92mm - 97mm	24	M8 x 70	24
98mm - 103mm	24	M8 x 70	24
104mm - 112mm	24	M8 x 80	24
113mm - 121mm	24	M8 x 80	24
122mm - 130mm	24	M8 x 80	24

Measurements are nominal and may vary slightly.

How to size a clip

Measure over the hose, not the pipe

A clip closes around the outside of the hose once the hose is already on its fitting. That outside diameter is the clip size — the bore the hose runs on is not.

Or work it out from the hose's own figures

If the hose is not to hand, take its internal diameter and add twice the wall thickness — both are listed in that hose's own Size Guide. A 19 mm bore silicone hose has a 4.5 mm wall, so it measures 28 mm across the outside.

Use vernier calipers, keep the largest reading

Set the outer jaws across the widest point of the assembled joint and rotate 60° between readings. Hose is soft and rarely perfectly round, so size to the biggest figure.

Pick the range that spans your figure

Aim for the middle of a clip's range rather than either end. Wound out near its limit a clip has little thread left to bite on; at the bottom of its range it may not open far enough to pass over the hose in the first place.

Size the clip to the hose OD, not the bore. A 19 mm hose does not take a 19 mm clip — with a 4.5 mm wall it measures about 28 mm across the outside. Every figure on this page is the outside diameter the clip closes on.

Construction

Material

Zinc-plated or stainless steel

High strength and corrosion resistance

Design

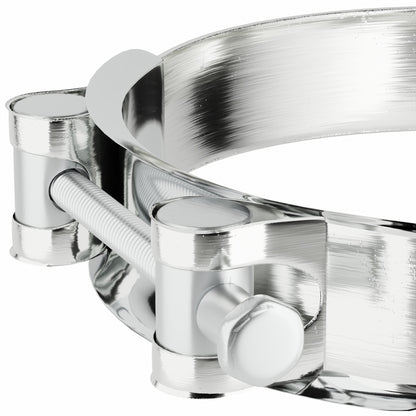

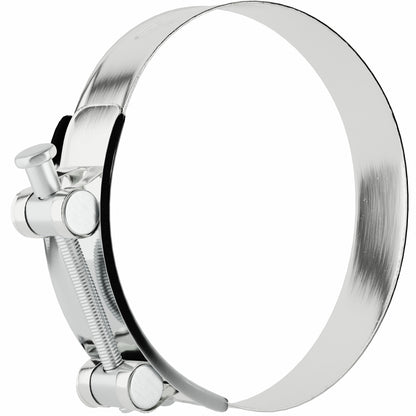

T-bolt fastening with hex nut

Secure, even clamping force · -60°C to +180°C (peak +190°C)

T-Bolzen-Schlauchschelle - 10er-Pack

Strapazierfähig Breites Band Glatte Innenseite

Even pressure. All the way round.

A solid band and T-bolt, for boost joints and big-bore hose.

CLAMPING RANGE

17mm to 130mm

RATED

−60°C to +180°C

MATERIAL

W1 Zinc or W4 Stainless

BREAK TORQUE

6 to 24 Nm

BAND WIDTH

18mm to 24mm

Frequently Asked Questions.

Answers to the questions we’re asked most about sizing, fitment and performance.

Still can't find your answer?

What is it and when do I use it?

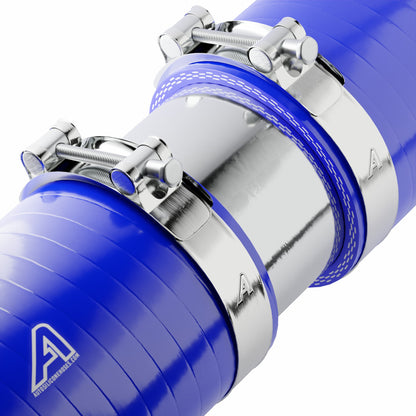

A heavy-duty clamp where a solid bolt and trunnion pull a wide, smooth-inner band evenly around the whole joint. That is fundamentally different from a worm drive, which tightens through slots in a perforated band at one point. Use it on boost, intercooler and turbo pipework, and anywhere with real vibration.

What sizes do you stock?

Adjustment ranges run from 17mm to 19mm up to 122mm to 130mm across 23 sizes.

How do I choose the right size?

Size to the outside diameter of the hose once fitted over the pipe, not to the hose bore. Clips are listed by adjustment range and your fitted diameter should sit around the middle of it - a clip at the very end of its travel either will not close far enough or has almost no thread engaged.

What is the difference between W1 and W4?

Available in W1 Zinc Plated and W4 Stainless Steel. W1 is zinc-plated steel - cheaper, fine for dry indoor use. W4 is stainless throughout, band, housing and screw, which is what you want for weather, coolant, road salt or a marine environment.

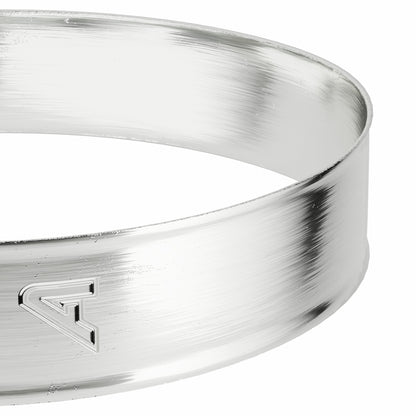

Why does the smooth inner band matter?

Because silicone is soft. A perforated worm drive band presses its slot edges into the hose wall under high clamping force, which marks and eventually damages it. A T-bolt's smooth band spreads the load evenly, so you can apply the force a boost joint needs without cutting the hose.

How tight should it be?

Firm, not crushed. Compress the hose evenly against the pipe without the band biting in - over-tightening causes more leaks than under-tightening. Re-check after the first few heat cycles, because the joint beds in and a clip that felt tight cold usually needs a small nip.
