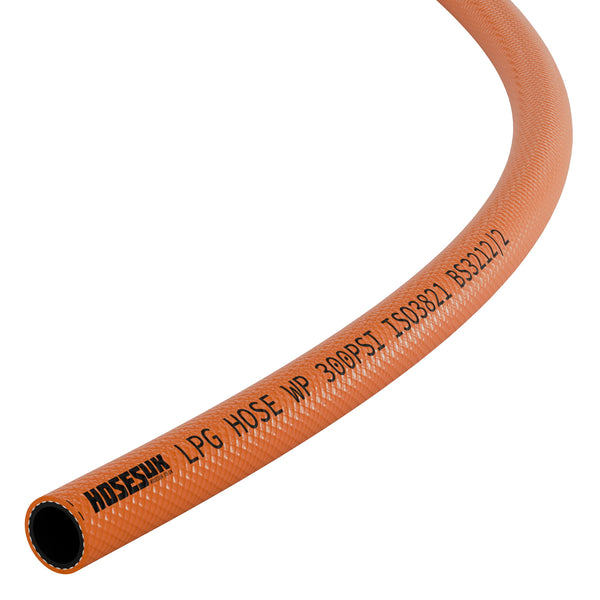

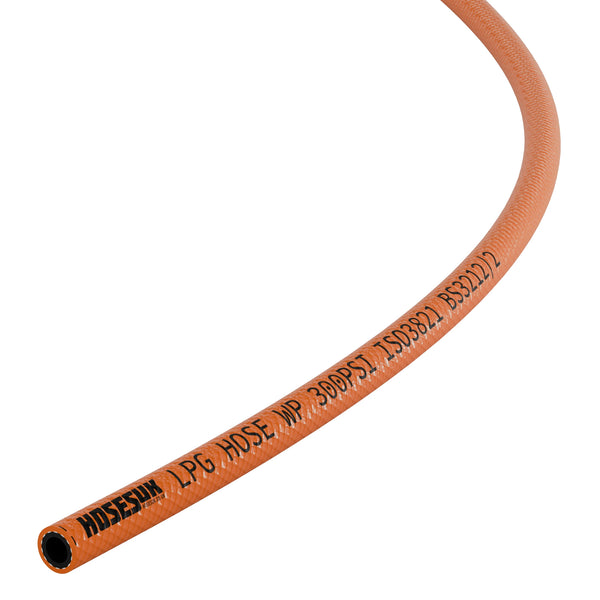

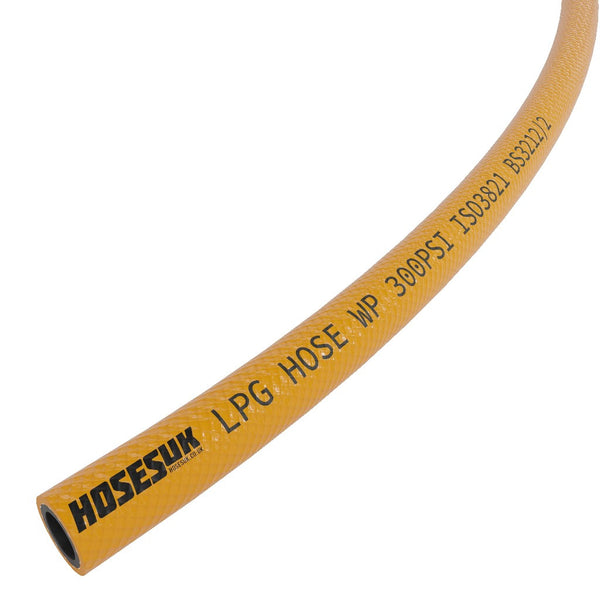

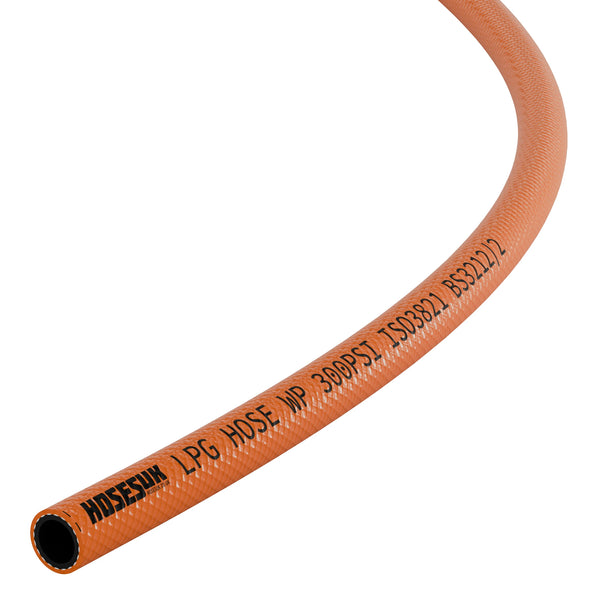

PVC-LPG-Schlauch mit Innendurchmesser 8 mm

-10°C to +65°C 20 Bar Flame Resistant

PLH005-ASH#1

£0.96

Delivery/Collection

Collect from Silicone Hose UK

Orders can be collected once you receive your ready-to-collect email.

Address

Silicone Hose UK

HolmeBank Business Park, Station Road
Unit 5
Mirfield WF14 8NA
Vereinigtes Königreich

Get Directions

Opening hours

Monday	07:00 – 19:00
Tuesday	07:00 – 19:00
Wednesday	07:00 – 18:00
Thursday	07:00 – 18:00
Friday	07:00 – 17:00
Saturday	07:00 – 13:00
Sunday	Closed

Bank holidays may affect our opening hours and delivery times.

Returns

It's OK to change your mind
Return within 30 days for a full refund*. Learn More

Shop safely

Secure your shopping experience with various safe and trusted payment methods.

Shop safely with us

Die ideale Lösung für den zuverlässigen und sicheren Transport von Flüssiggas (LPG) in verschiedenen Anwendungen. Dieser präzise aus hochwertigem PVC gefertigte Schlauch erfüllt strenge Sicherheitsstandards und bietet gleichzeitig Flexibilität und Haltbarkeit.

Mit einem Innendurchmesser von 8 mm gewährleistet dieser LPG-Schlauch einen effizienten Gasfluss für eine Reihe von Anwendungen im Haushalt und in der Industrie. Die PVC-Konstruktion bietet eine leichte und einfach zu handhabende Lösung ohne Kompromisse bei der Festigkeit. Die Flexibilität des Schlauchs ermöglicht eine einfache Installation und macht ihn sowohl für private als auch gewerbliche LPG-Anwendungen geeignet.

Specifications

Colour: Orange
Standard: ISO3821
Working Pressure: 20bar
Bursting Pressure: 60bar

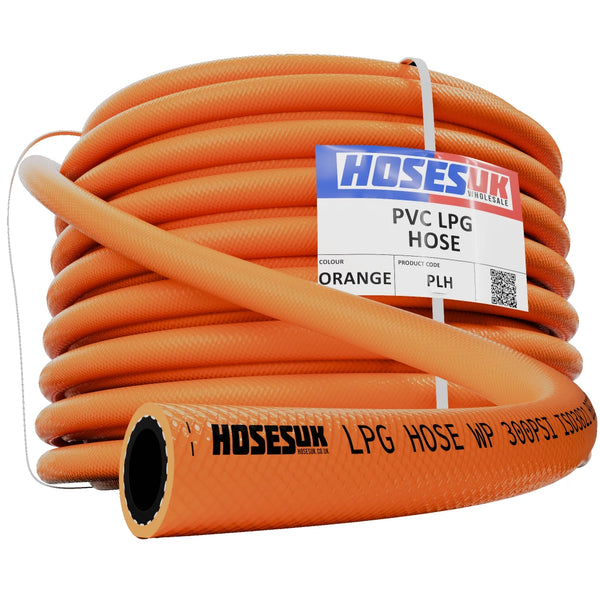

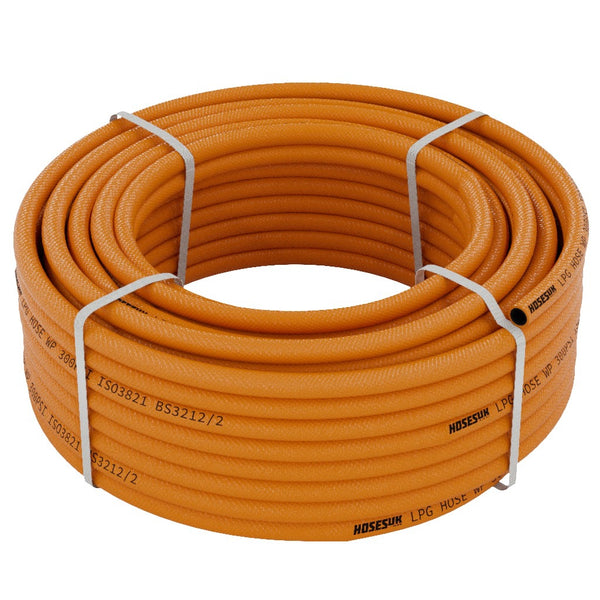

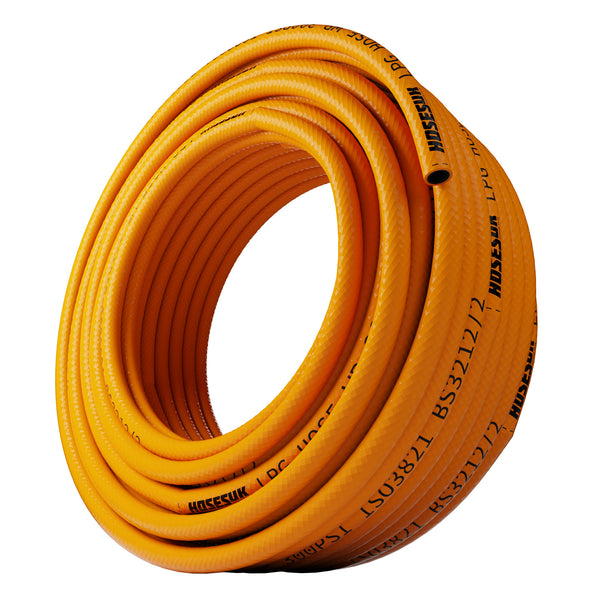

Coil Length: 100m

Size Guide

Inside Diametermm	Outside Diametermm	Wall Thicknessmm	Bending Radiusmm	Coil Weightkg
5	11	3	55	10.2
6	12	3	60	11.5
8	15	3.5	75	17
10	17	3.5	85	20
13	21	4	105	28.8

Measurements are nominal and may vary slightly.

How to measure ID

1

Measure the pipe, not the old hose

Heat and age make a used hose swell and go out of round. Take your reading across the metal outlet the hose slides onto — that measurement is your ID.

2

Use vernier calipers

Set the outer jaws across the widest point of the pipe. A tape measure round a curve reads low by a millimetre or two — enough to buy the wrong size.

3

Take three readings, keep the largest

Rotate 60° between each. If they disagree the pipe is oval; size to the biggest figure so the hose still seals.

4

Round to the nearest listed bore

Never go up: a bore wider than the fitting will not grip, whatever the hose is made of. If you land between listed sizes take the smaller bore, and secure it with a clip.

Order by ID, always. Every hose on this site is listed by internal diameter. OD is given for clearance only — it changes with wall thickness and ply count, so it is never the ordering size. On reducers, quote both ends, largest first.

Construction

1 · Outer cover

PVC cover

Resistance to abrasion, handling, and weather exposure

2 · Reinforcement

Triple polyester yarn

High strength and pressure stability · 20 bar across available sizes · 60 bar (3:1 safety factor)

3 · Inner liner

Black Polyvinyl Chloride (PVC) smooth bore

Steady gas transfer · -10°C to +65°C (short-term peak +70°C)

Conforms to ISO 5774:2016 Type C.

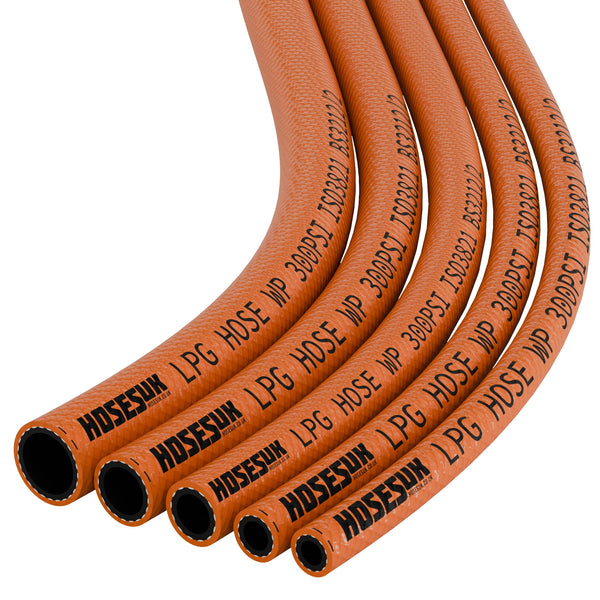

5 bore sizes5mm to 13mm internal diameter

-10°C to +65°Ccontinuous service temperature

60 bar burst20 bar working on the smallest bore

Clear PVC. Every reinforcement.

The PVC range - unreinforced, polyester braided, or steel spiral.

INTERNAL DIAMETERS

5mm to 13mm

RATED

−10°C to +65°C

WORKING PRESSURE

20 bar across all sizes

BUILT TO

ISO 3821

SOLD BY

The metre

Specification at a glance

Across the whole 5mm–13mm range.

5mm –13mm Inside diameter

11mm –21mm Outside diameter

3mm –4mm Wall thickness

55mm –105mm Bending radius

20bar Working pressure

60bar Bursting pressure

Inside diameter (mm)	Outside diameter (mm)	Wall thickness (mm)	Working pressure (bar)	Bursting pressure (bar)	Bending radius (mm)	Coil weight (kg)	Coil length (m)
5	11	3	20	60	55	10.2	100
6	12	3	20	60	60	11.5	100
8	15	3.5	20	60	75	17	100
10	17	3.5	20	60	85	20	100
13	21	4	20	60	105	28.8	100

Show all 5 sizes → Show fewer

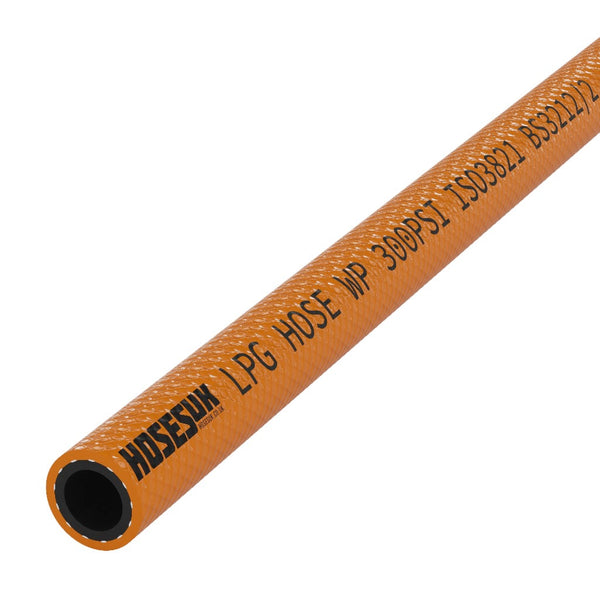

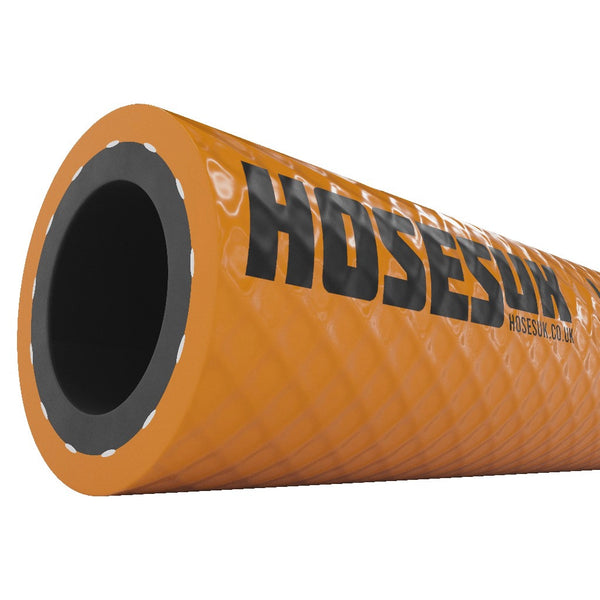

How it's built

Three layers, each doing one job.

Three layers, from the outside in: PVC cover, triple polyester yarn and black Polyvinyl Chloride (PVC) smooth bore. Each one is doing a different job.

1

Outer cover

PVC cover

Resistance to abrasion, handling, and weather exposure

2

Reinforcement

Triple polyester yarn

High strength and pressure stability20 bar across available sizes60 bar (3:1 safety factor)

3

Inner liner

Black Polyvinyl Chloride (PVC) smooth bore

Steady gas transfer-10°C to +65°C (short-term peak +70°C)

Product gallery

Frequently Asked Questions.

Answers to the questions we’re asked most about sizing, fitment and performance.

Still can't find your answer?

Contact Us

What is it used for?

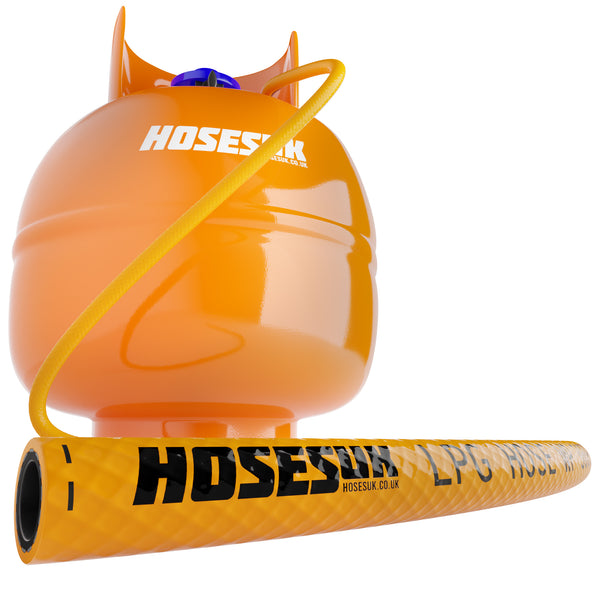

Carrying liquefied petroleum gas from a cylinder or tank to an appliance - patio heaters, barbecues, catering equipment, caravans and motorhomes, plant and industrial burners.

What size and length do I order?

Order by internal diameter, matched to the outside diameter of the pipe stub or spigot it slides over. Measure the pipe with vernier callipers rather than the old hose, which stretches in service and reads large. Available in internal diameters from 5mm to 13mm, lengths from 1 Metre to 100 Metres (Full Coil). Full coils work out considerably better value per metre than cut lengths.

What standard is it built to?

It is manufactured to ISO 3821, and the temperature range is -10C to +65C. Buying to a recognised standard matters here - it means the construction, pressure rating and performance have been benchmarked rather than simply described.

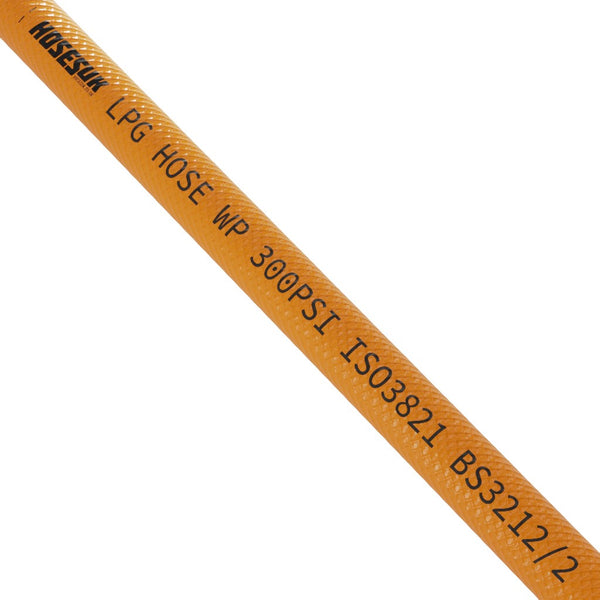

Why is it date stamped?

Because LPG hose degrades with age even when it looks sound. The stamp tells you when it was made and therefore when it is due for replacement - commonly five years, but check the appliance manufacturer's requirement. No legible date means replace it now.

How do I check for a leak?

Brush washing-up liquid and water over every joint with the gas on and the appliance off. Bubbles mean a leak. Never test with a flame. If you find one, turn off at the cylinder, do not operate electrical switches, ventilate the area and do not use the appliance until it is fixed.

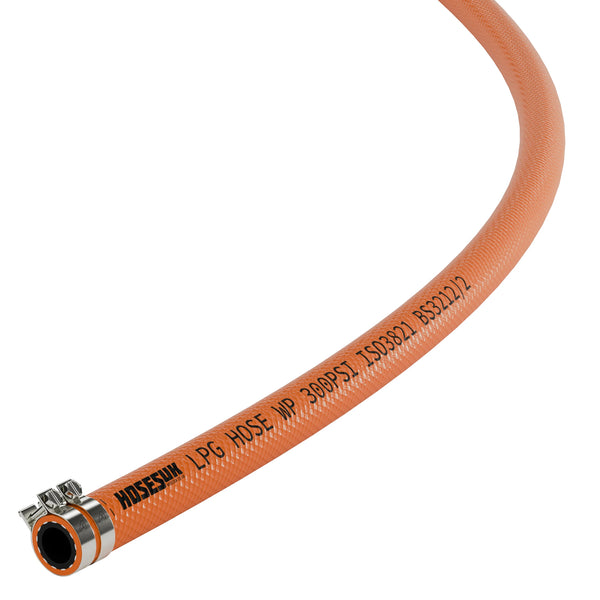

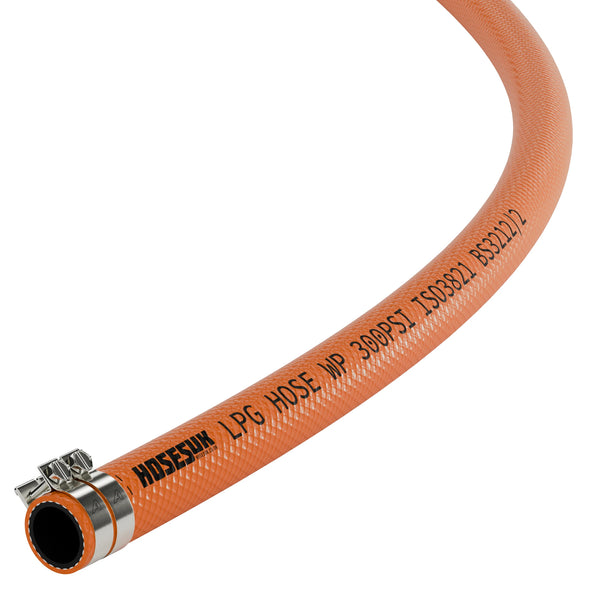

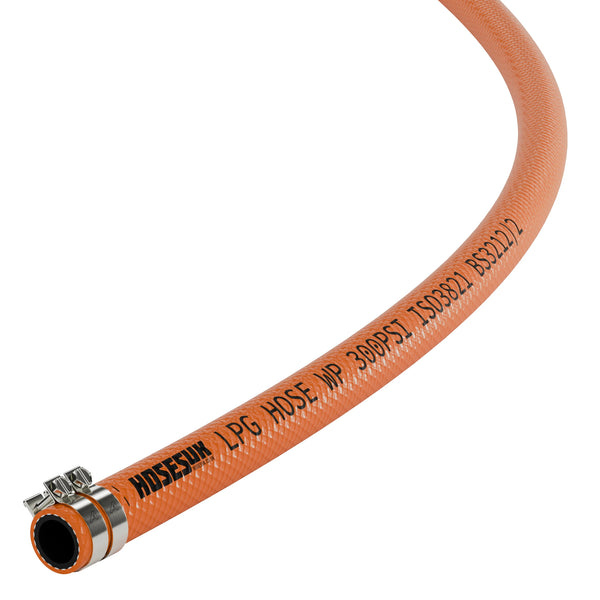

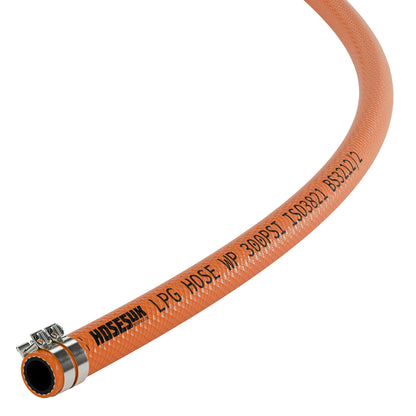

How should it be secured?

Proper gas hose clips at each end, positioned squarely over the nozzle - never rely on a push fit. Then leak-test every joint with soapy water before use.
