PVC Corrugated Reinforced Flexible Hose

-10°C to +65°C Smooth Bore UV Resistant

CDH019-ASH#1

£1.34

Delivery/Collection

Collect from Silicone Hose UK

Orders can be collected once you receive your ready-to-collect email.

Address

Silicone Hose UK

HolmeBank Business Park, Station Road
Unit 5
Mirfield WF14 8NA
Vereinigtes Königreich

Get Directions

Opening hours

Monday	07:00 – 19:00
Tuesday	07:00 – 19:00
Wednesday	07:00 – 18:00
Thursday	07:00 – 18:00
Friday	07:00 – 17:00
Saturday	07:00 – 13:00
Sunday	Closed

Bank holidays may affect our opening hours and delivery times.

Returns

It's OK to change your mind
Return within 30 days for a full refund*. Learn More

Shop safely

Secure your shopping experience with various safe and trusted payment methods.

Shop safely with us

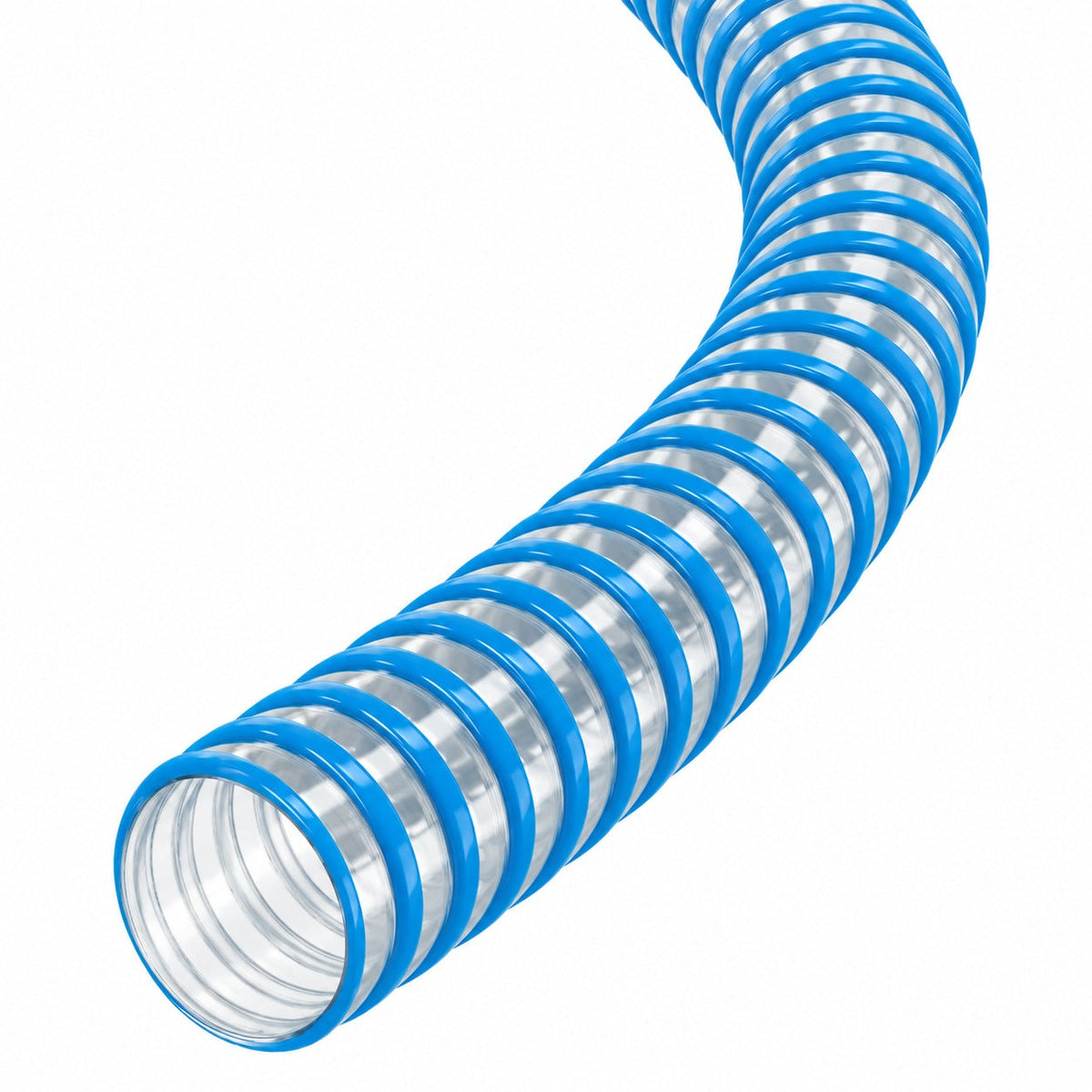

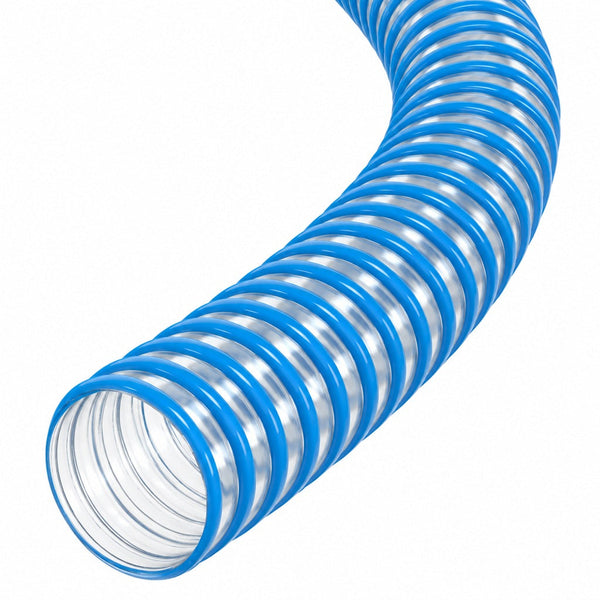

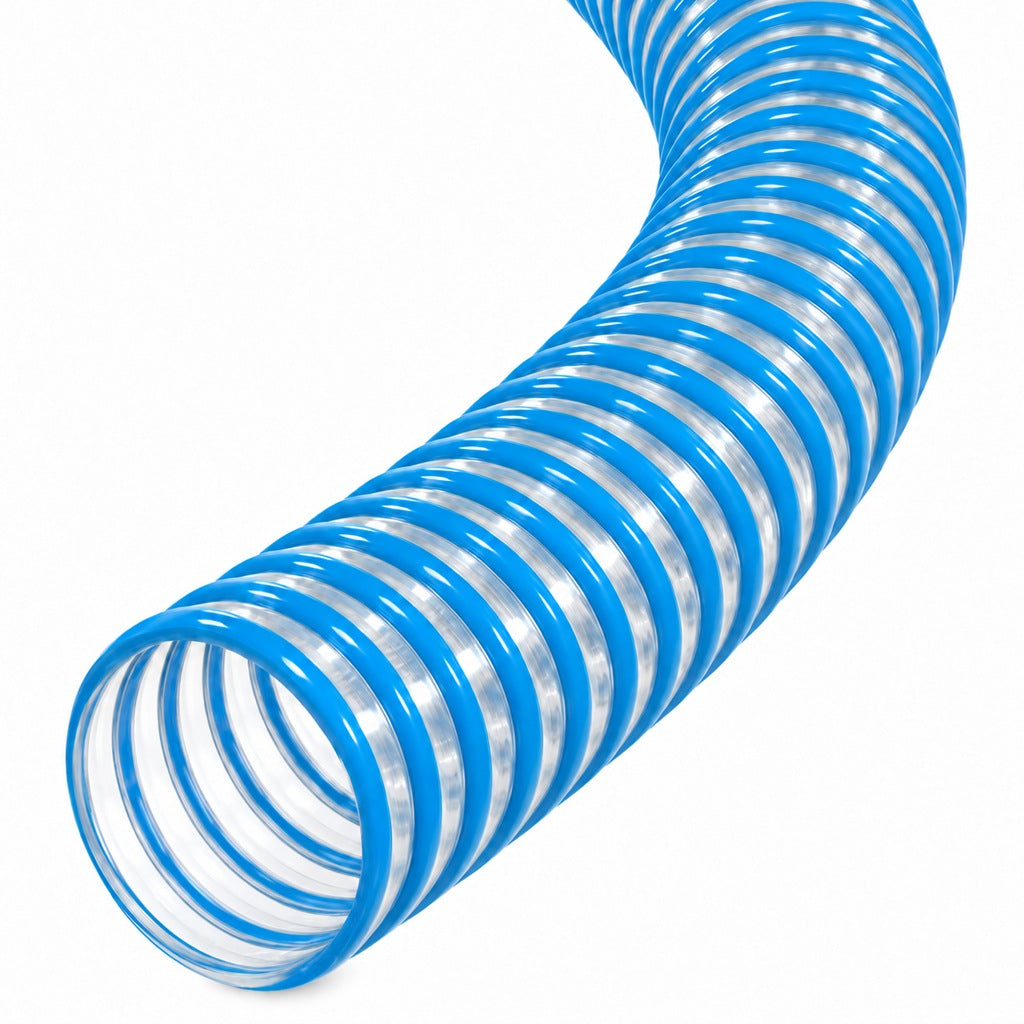

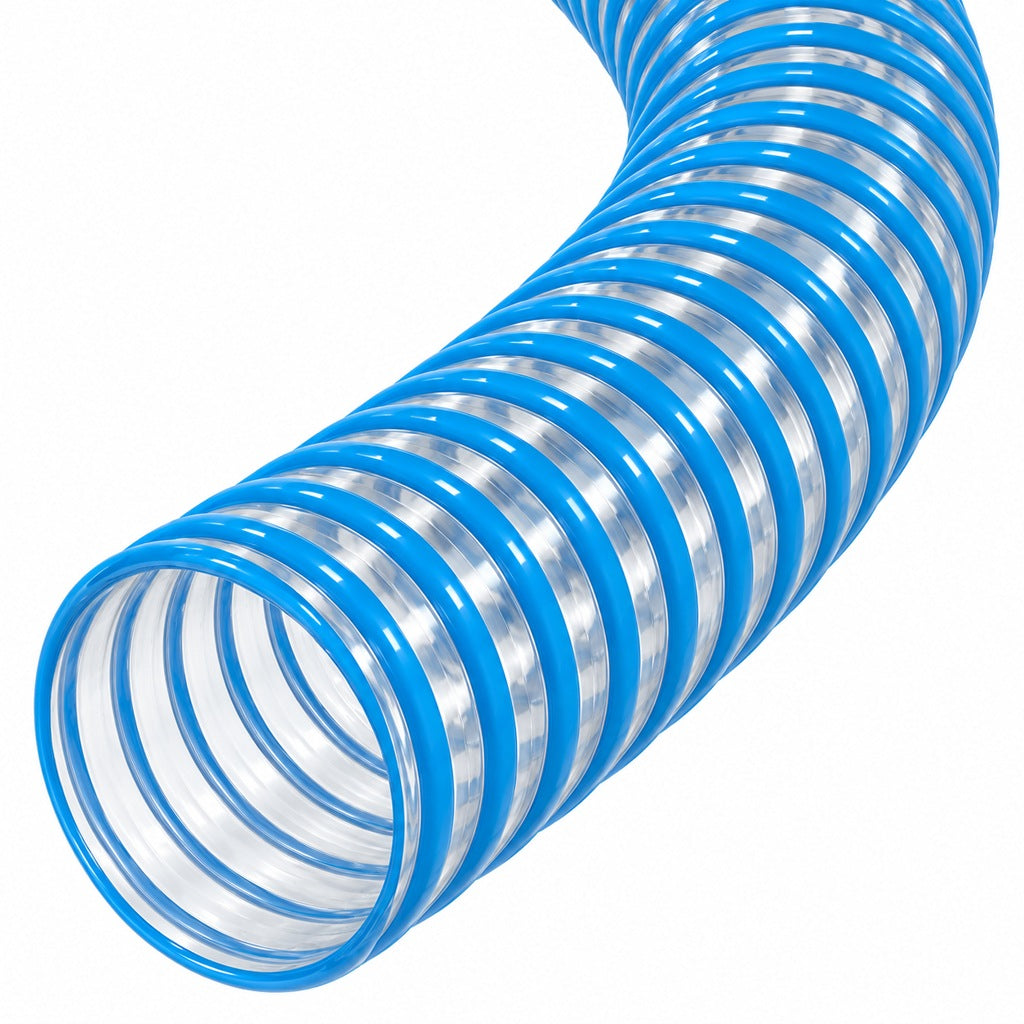

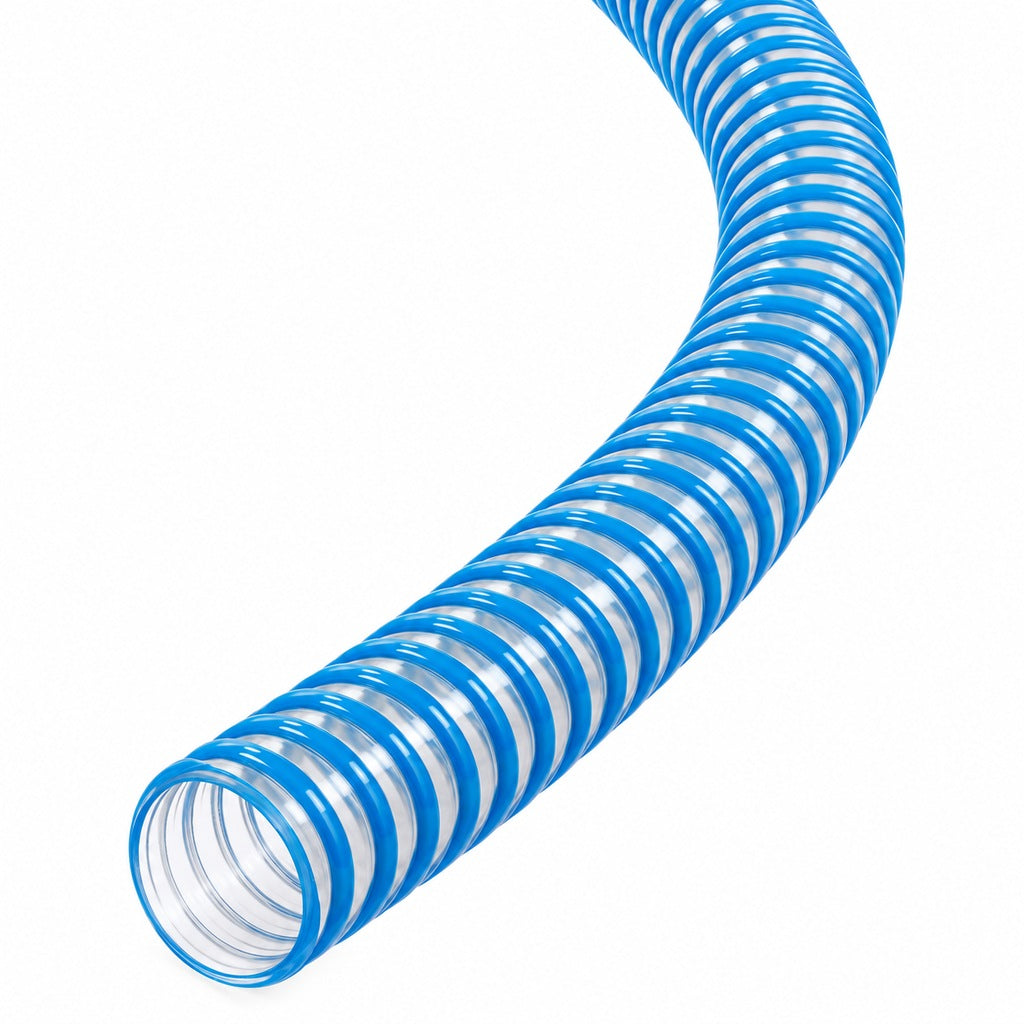

PVC Corrugated Hose is a lightweight, flexible and crush-resistant hose for water transfer, pond circulation and general fluid handling. It pairs a smooth PVC inner wall with a UV-resistant corrugated PVC outer wall and a high-tensile plastic rib reinforcement, and comes in nine internal diameters from 19mm to 51mm in three colours: clear, black, and blue (a clear wall with a solid blue rib). Buy it cut to length from 1 metre or as a full coil: 30 metres on the 19mm size and 50 metres on every other size. Operating from -10°C to +65°C (peak +70°C) and made to BS EN ISO 3994-2001, it suits light to medium-duty work around the pond, garden and workshop.

Key Features:

Colours: Clear, Black, or Blue (clear wall with a solid blue rib).
Material: Smooth PVC inner layer with a UV-resistant corrugated PVC outer wall.
Reinforcement: High-tensile plastic rib for crush resistance and flexibility.
Internal Diameters: 19, 25, 28, 32, 35, 38, 40, 45 and 51mm.

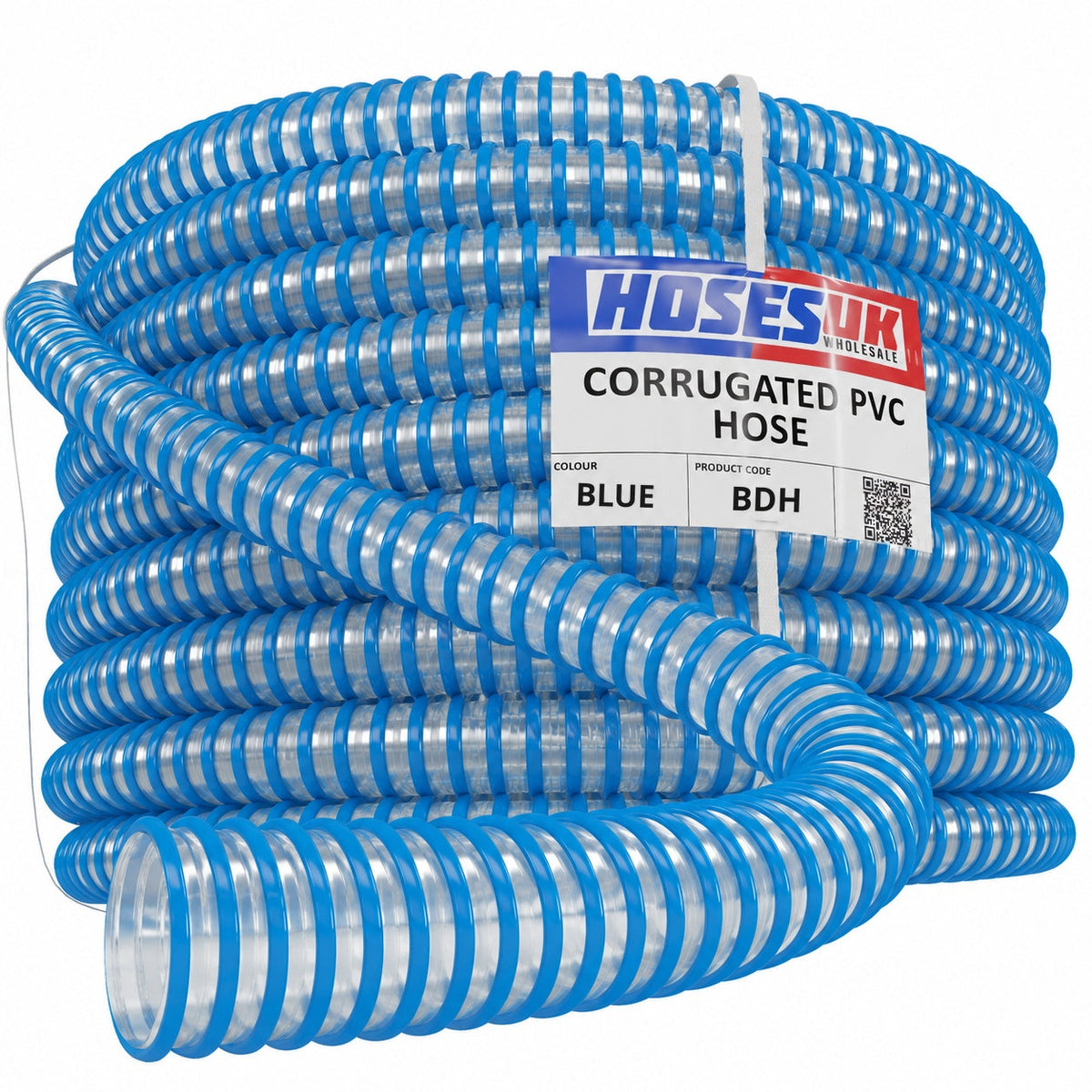

Coil Lengths: 30 metres for 19mm and 50 metres for all other sizes, or cut to length from 1 metre.
Wall Thickness: 2mm to 4mm depending on size.
Working Pressure: 3 to 5 bar depending on size.
Burst Pressure: 9 to 15 bar, a 3:1 safety factor.
Bending Radius: 70mm on the 19mm hose to 170mm on the 51mm hose.
Temperature Range: -10°C to +65°C; peak +70°C.
Standard: BS EN ISO 3994-2001.

The smooth bore keeps flow resistance low, while the corrugated outer wall lets the hose bend round corners and over uneven ground without kinking. The plastic rib resists crushing and holds the bore open when the hose is flexed, so flow is maintained. Smaller bores carry the higher pressure ratings (5 bar on 19mm and 25mm) and larger bores move more water at lower pressure (3 bar on 38mm and above).

Choose clear or blue when you want to see water moving through the line and spot blockages, debris or trapped air without disconnecting anything. The blue rib also makes the line easy to tell apart from other hoses running alongside it. Choose black for long runs in direct sunlight, where light passing through a clear wall would let algae grow inside the hose.

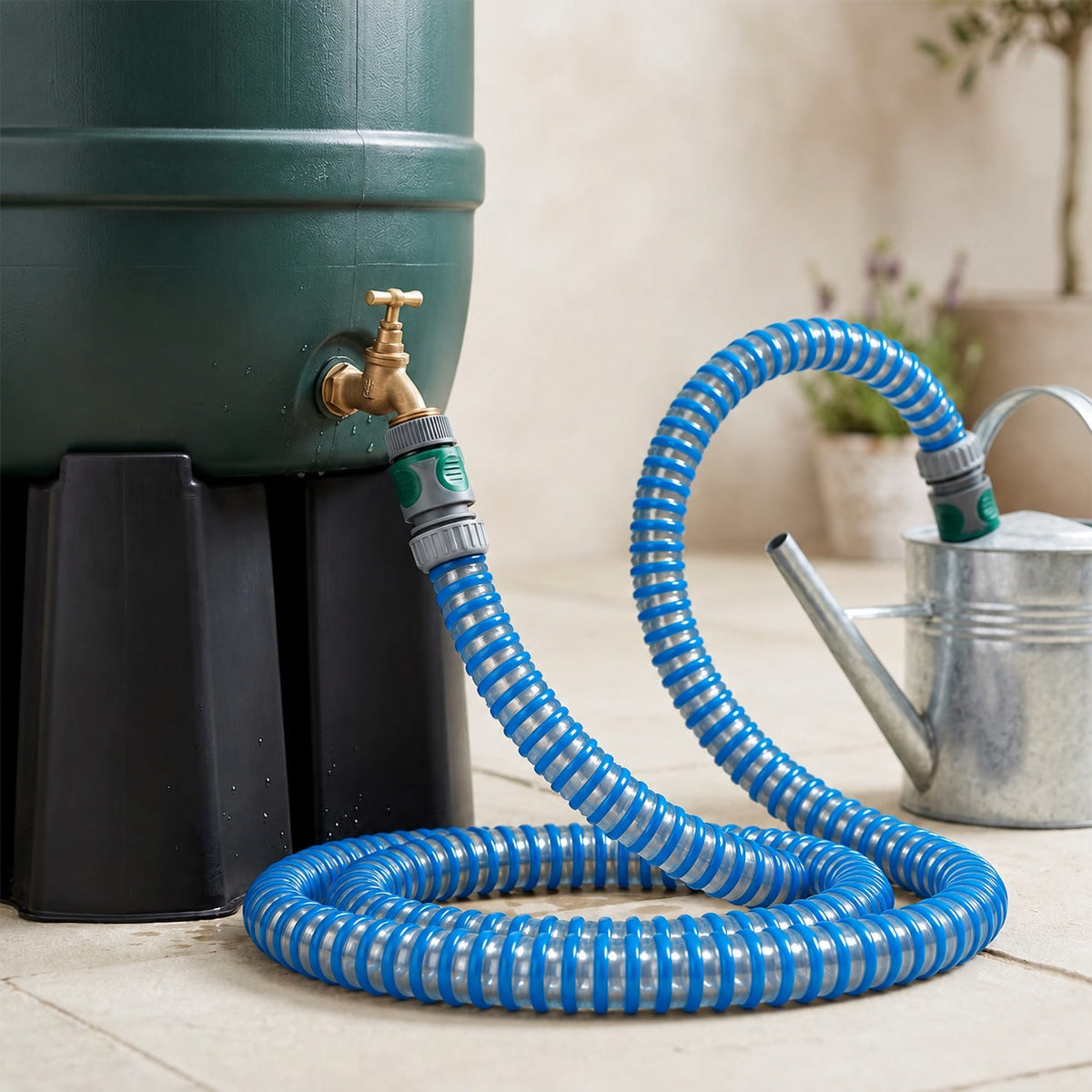

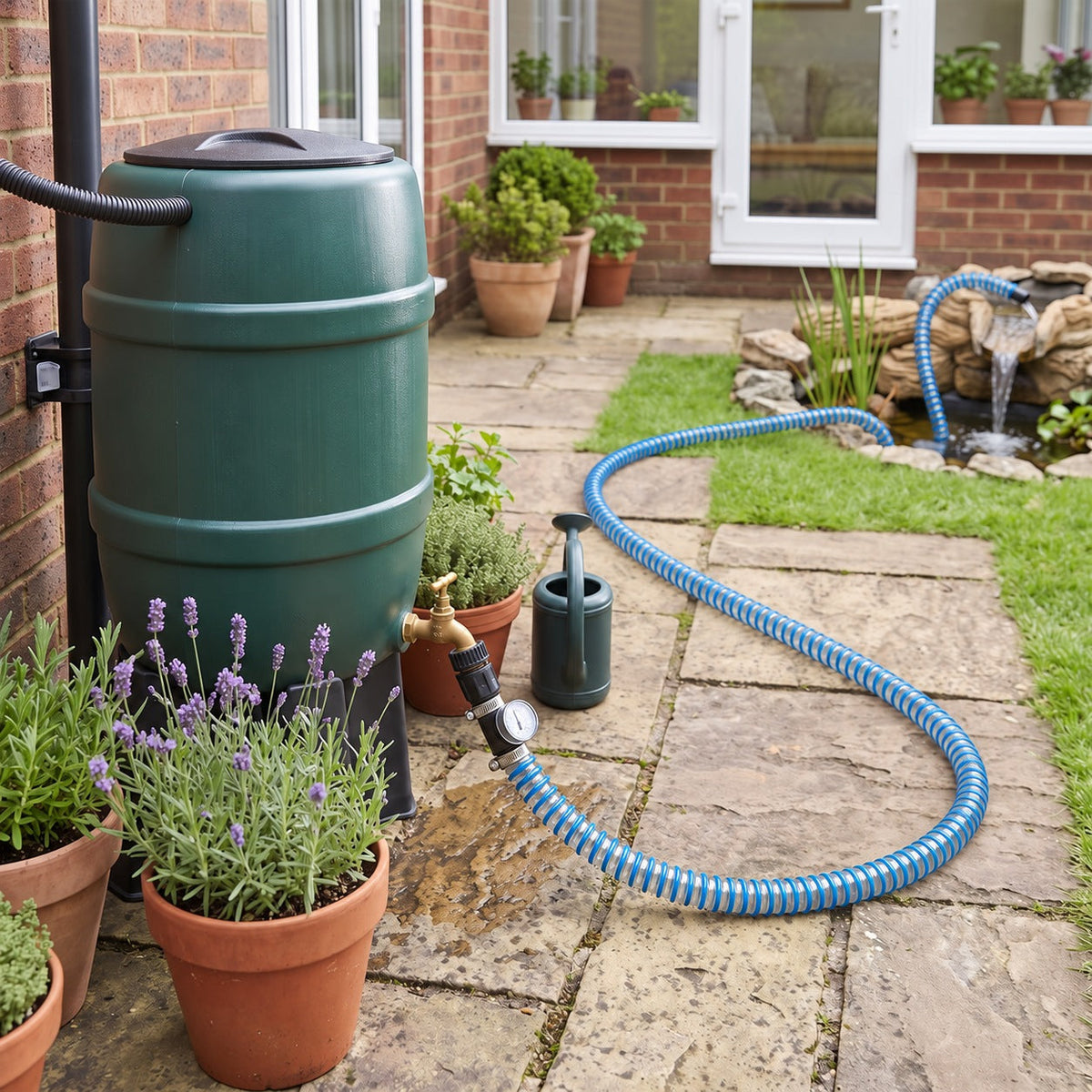

Typical applications include pond pump and filter circulation, waterfalls and garden water features, water butt connections, aquarium plumbing, irrigation and drainage runs, and workshop water transfer. Push the hose firmly over the spigot or hose tail and secure it with a hose clip.

Specifications

Type: Corrugated PVC Hose
Colour: Clear, Black, Blue
Standard: BS EN ISO 3994-2001

Size Guide

Inside Diametermm	Outside Diametermm	Wall Thicknessmm	Working Pressurebar	Bursting Pressurebar	Bending Radiusmm	Coil Weightkg	Coil Lengthm
19	23	2	5	15	70	4.1	30
25	30	2.6	5	15	70	9.5	50
28	33	2.5	4	12	80	11	50
32	38	3	4	12	90	11.9	50
38	44	3	3	9	110	14	50
40	46	3	3	9	150	14.7	50
50	58	4	3	9	170	23.5	50

Measurements are nominal and may vary slightly.

How to measure ID

1

Measure the pipe, not the old hose

Heat and age make a used hose swell and go out of round. Take your reading across the metal outlet the hose slides onto — that measurement is your ID.

2

Use vernier calipers

Set the outer jaws across the widest point of the pipe. A tape measure round a curve reads low by a millimetre or two — enough to buy the wrong size.

3

Take three readings, keep the largest

Rotate 60° between each. If they disagree the pipe is oval; size to the biggest figure so the hose still seals.

4

Round to the nearest listed bore

Never go up: a bore wider than the fitting will not grip, whatever the hose is made of. If you land between listed sizes take the smaller bore, and secure it with a clip.

Order by ID, always. Every hose on this site is listed by internal diameter. OD is given for clearance only — it changes with wall thickness and ply count, so it is never the ordering size. On reducers, quote both ends, largest first.

Construction

Outer wall

UV-resistant corrugated PVC with a high-tensile plastic rib (solid blue rib on the blue hose)

Crush resistant

Inner liner

Smooth PVC inner layer

Smooth internal bore

7 bore sizes19mm to 50mm internal diameter

-10°C to +65°Ccontinuous service temperature

15 bar burst5 bar working on the smallest bore

Clear, black or blue. Crush-resistant rib.

The PVC range - unreinforced, polyester braided, or steel spiral.

INTERNAL DIAMETERS

19mm to 50mm

WORKING PRESSURE

Up to 5 bar

MATERIAL

PVC

SOLD BY

The metre

Find your perfect colour

Clear to see the flow, black to block light on long sunny runs, or blue - a clear wall with a solid blue rib - to see the flow and pick the line out at a glance. All 9 sizes, 19mm to 51mm, are built to the same specification in every colour.

Clear

Black

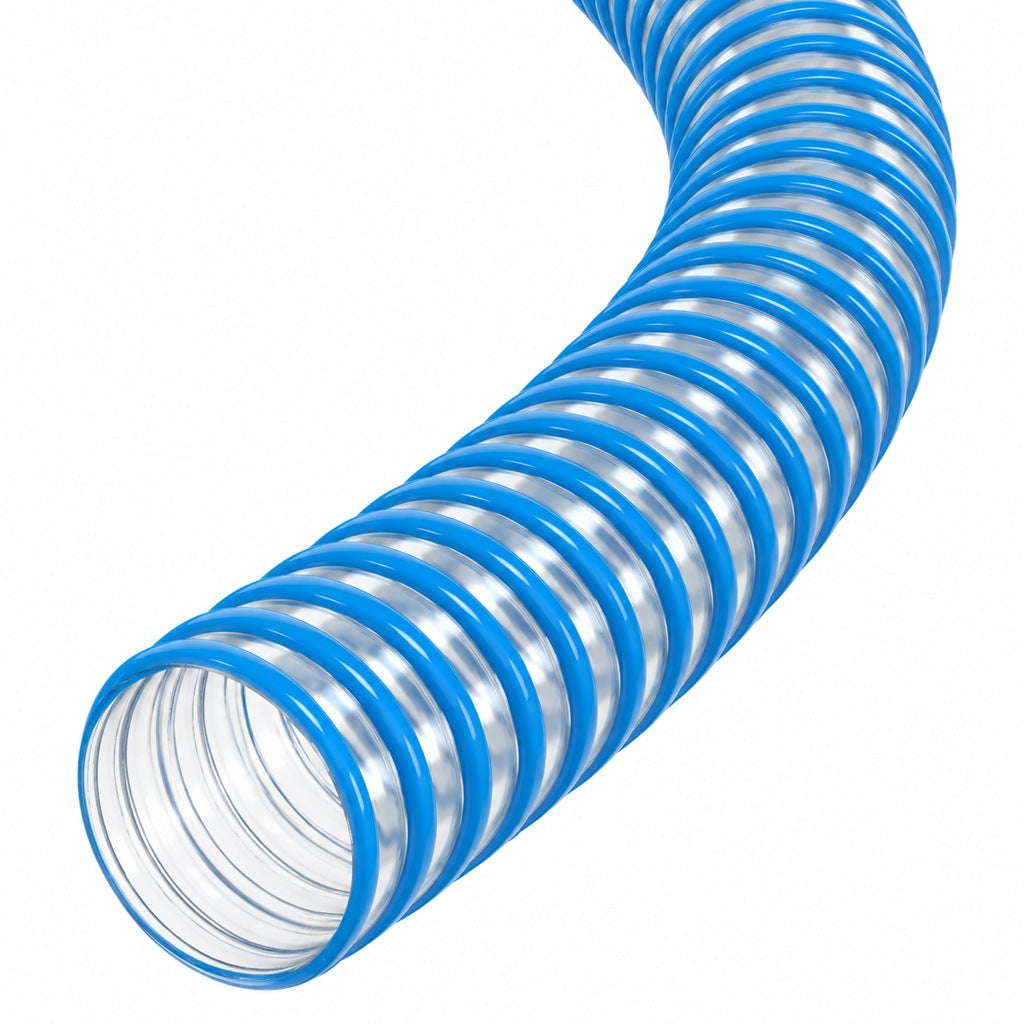

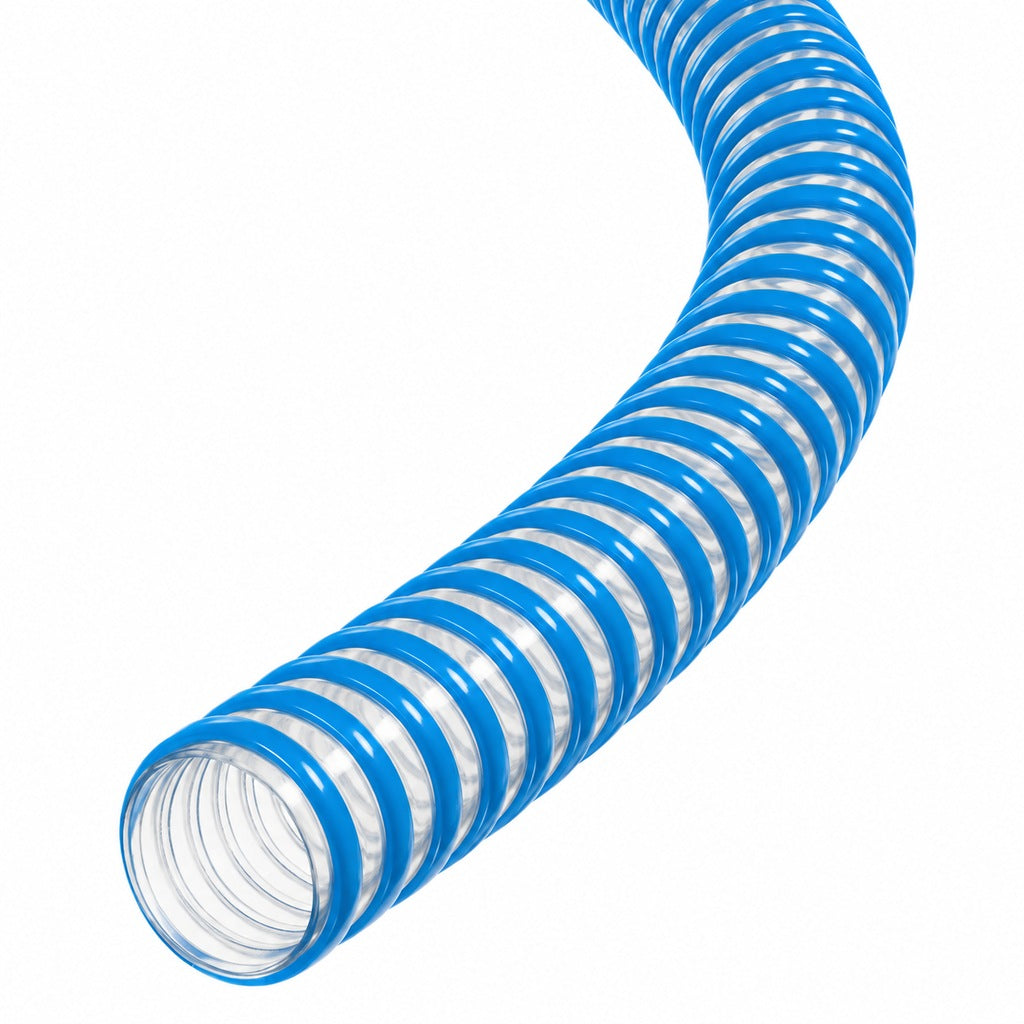

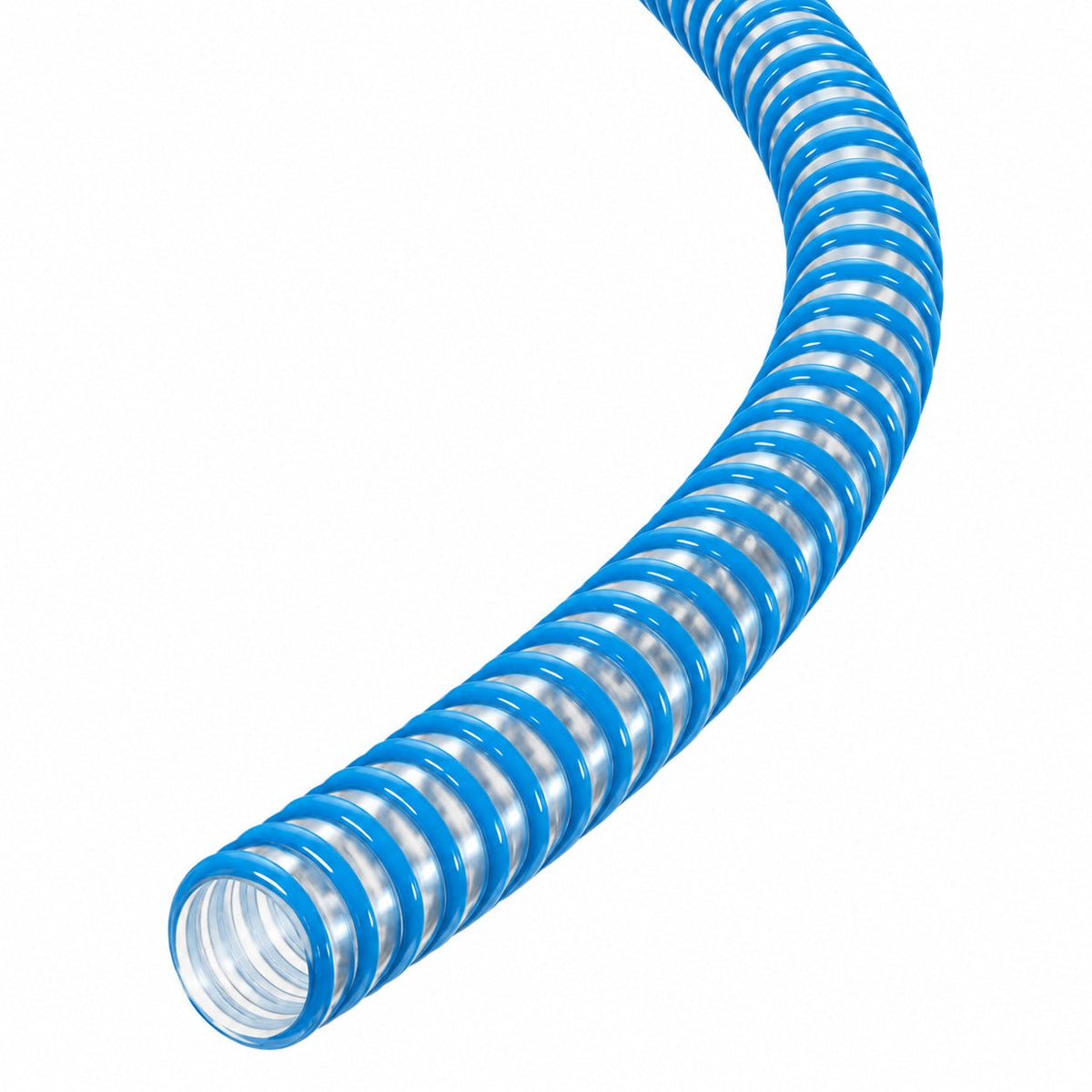

Blue

Colours shown are indicative — screen rendering varies.

Specification at a glance

Across the whole 19mm–50mm range.

19mm –50mm Inside diameter

23mm –58mm Outside diameter

2mm –4mm Wall thickness

70mm –170mm Bending radius

3bar –5bar Working pressure

9bar –15bar Bursting pressure

Inside diameter (mm)	Outside diameter (mm)	Wall thickness (mm)	Working pressure (bar)	Bursting pressure (bar)	Bending radius (mm)	Coil weight (kg)	Coil length (m)
19	23	2	5	15	70	4.1	30
25	30	2.6	5	15	70	9.5	50
28	33	2.5	4	12	80	11	50
32	38	3	4	12	90	11.9	50
38	44	3	3	9	110	14	50
40	46	3	3	9	150	14.7	50
50	58	4	3	9	170	23.5	50

Show all 7 sizes → Show fewer

How it's built

Two layers, each doing one job.

Two layers, from the outside in: a UV-resistant corrugated PVC wall with a high-tensile plastic rib, and a smooth PVC inner layer. Each one is doing a different job.

1

Outer wall

UV-resistant corrugated PVC with a high-tensile plastic rib (solid blue rib on the blue hose)

Crush resistant

2

Inner liner

Smooth PVC inner layer

Smooth internal bore

Product gallery

Frequently Asked Questions.

Answers to the questions we’re asked most about sizing, fitment and performance.

Still can't find your answer?

Contact Us

What is it used for?

Water transfer, pond pump and filter circulation, garden water features, irrigation and drainage, and general light to medium-duty fluid handling. The high-tensile plastic rib gives crush resistance while keeping a smooth internal bore.

What sizes and lengths do you supply?

Available in internal diameters from 19mm to 51mm, lengths from 1 Metre up to the full coil (30 Metres on 19mm, 50 Metres on all other sizes), in clear, black and blue. Order by internal diameter to match the outside diameter of the barb or spigot it pushes onto. Full coils work out considerably better value per metre than cut lengths.

What is the difference between the clear, black and blue hose?

They share the same construction and ratings. Clear lets you see the flow. Blue is a clear wall with a solid blue rib, so you can still see the flow and the line is easy to pick out from other hoses. Black blocks light, so choose it for long runs in direct sunlight where algae could grow inside a clear hose.

What pressure and temperature is it rated for?

Working pressure runs from 5 bar on the smallest bore down to 3 bar on the largest, with burst pressure from 15 bar down to 9 bar across the range. The operating range is -10C to +65C (peak +70C), built to BS EN ISO 3994-2001. PVC also stiffens noticeably in cold weather, so uncoil it gently on a frosty morning rather than pulling it straight.

Can I use it on the suction side of a pump?

Yes, for light-duty suction such as pond and water butt pumps. The plastic rib holds the bore open under light negative pressure, so it works on both the suction and discharge sides. This is the key difference between it and layflat hose, which collapses immediately under suction.

Is it safe for drinking water or food use?

No - this is a general-purpose industrial hose and is not certified for potable water or food contact. If you need a certified food-grade or potable hose, tell us the application and we will point you at an appropriately certified product.
