Audi A3 1.9TDI 131 PS ASZ Motor AGR-Abdeckung Silikonschlauch

SNR057051K-ASH

£20.59

Delivery/Collection

Collect from Silicone Hose UK

Orders can be collected once you receive your ready-to-collect email.

Address

Silicone Hose UK

HolmeBank Business Park, Station Road
Unit 5
Mirfield WF14 8NA
Vereinigtes Königreich

Get Directions

Opening hours

Monday	07:00 – 19:00
Tuesday	07:00 – 19:00
Wednesday	07:00 – 18:00
Thursday	07:00 – 18:00
Friday	07:00 – 17:00
Saturday	07:00 – 13:00
Sunday	Closed

Bank holidays may affect our opening hours and delivery times.

Returns

It's OK to change your mind
Return within 30 days for a full refund*. Learn More

Shop safely

Secure your shopping experience with various safe and trusted payment methods.

Shop safely with us

Dieser Schlauch ist auf der einen Seite ein 57 mm 90°-Kniestück und auf der anderen Seite 51 m. Bitte überprüfen Sie, ob Ihre Auslassgröße 51 mm Außendurchmesser und der Außendurchmesser des Hartrohrsatzes 57 mm beträgt.

Dieser Schlauch ist für die Verbindung der 57-mm-AGR-Löschung mit dem Aluminium-Hartrohrsatz vorgesehen.

Silikonschläuche sind für die Verbindung von Metallrohren und -komponenten in Systemen konzipiert, die Kühlmittel auf Wasser- und Ethylenglykolbasis verwenden. Unsere 90-Grad-Kniestücke sind perfekt geeignet, um rechtwinklige Biegungen in Rohrleitungen zu erzeugen. Zusammen können sie auch S-Bögen erzeugen.

Silikonschläuche sind im Vergleich zu Gummi extrem flexibel und behalten diese Flexibilität über die gesamte Nutzungsdauer. Unter bestimmten Bedingungen besteht bei Gummischläuchen die Gefahr des Reißens, Verhärtens oder Verrottens. Deshalb werden Silikonschläuche für viele LKWs, Busse, Hochleistungsautos und viele andere Fahrzeug- und Industrieanwendungen bevorzugt.

Wir erhöhen die Anzahl der Lagen und die Wandstärke unserer 90-Grad-Schläuche mit zunehmendem Durchmesser, da wir möchten, dass unser gesamtes Sortiment Flüssigkeiten und Luft bei sehr hohem Druck transportieren kann. Wenn Sie also ein Rennfahrzeug bauen und Turbolader oder Kompressoren hinzufügen, ist unser Silikonschlauch die richtige Wahl.

Polyestermaterial, geeignet für Kühlmittel/Glykol, Wasser, Dampf, Ölnebel und Luft usw. Marine, Automobil

Size Guide

Inside Diametermm	Outside Diametermm	Wall Thicknessmm	Working Pressurebar	Bursting Pressurebar	Bending Radiusmm	Number Of Ply	Each Leg Lengthmm
6.5	15.5	4.5	12.33	37	16	3	150
8	17	4.5	11.67	35	16	3	150
9.5	18.5	4.5	11.67	35	16	3	150
11	20	4.5	9	30	16	3	150
13	22	4.5	8.33	27	16	3	150
16	25	4.5	7.17	25	18	3	150
19	28	4.5	6.5	19.5	18	3	150
22	31	4.5	5.8	17.4	20	3	150
25	34	4.5	5.5	16	30	3	150
28	37	4.5	5.33	16	30	3	150
30	39	4.5	5.33	16	30	3	150
32	41	4.5	5.17	15.5	32	3	150
35	44	4.5	5	15	35	3	150
38	47	4.5	5	15	35	3	150
40	49	4.5	4.83	14.5	35	3	150
45	54	4.5	4.67	14	40	3	150
48	57	4.5	4.5	13.5	45	3	150
51	62	5.5	4.5	13.5	51	4	150
54	65	5.5	4.33	13	60	4	150
57	68	5.5	4.33	13	60	4	150
60	71	5.5	4.17	12.5	60	4	150
63	74	5.5	4	12	63	4	150
65	76	5.5	3.85	11.5	65	4	150
68	79	5.5	3.6	11	65	4	150
70	81	5.5	3.5	10.5	65	4	150
76	87	5.5	3.5	10.5	65	4	150
80	91	5.5	3.33	10	70	4	127
83	94	5.5	3.17	9.5	70	4	150
90	101	5.5	3	9	70	4	150
102	113	5.5	2.8	8.5	70	4	150
111	122	5.5	2.5	7.5	85	4	150
114	125	5.5	2.2	6.6	92	4	150
127	138	5.5	1.9	5.7	98	4	150

Measurements are nominal and may vary slightly.

How to measure ID

Measure the pipe, not the old hose

Heat and age make a used hose swell and go out of round. Take your reading across the metal outlet the hose slides onto — that measurement is your ID.

Use vernier calipers

Set the outer jaws across the widest point of the pipe. A tape measure round a curve reads low by a millimetre or two — enough to buy the wrong size.

Take three readings, keep the largest

Rotate 60° between each. If they disagree the pipe is oval; size to the biggest figure so the hose still seals.

Round to the nearest listed bore

Silicone stretches slightly. If you land between sizes, go down to the smaller bore for a tight seal — never up.

Order by ID, always. Every hose on this site is listed by internal diameter. OD is given for clearance only — it changes with wall thickness and ply count, so it is never the ordering size. On reducers, quote both ends, largest first.

Construction

1 · Outer cover

Silicone, gloss finishPigmented through

UV, ozone & abrasion resistant · colour will not fade or peel

2 · Reinforcement

Polyester textile pliesCross-woven, embedded

Holds shape under pressure and vacuum · ply count rises with bore

3 · Inner liner

Silicone, smooth boreVMQ

−50 °C to +180 °C · non-toxic, odourless · resists coolant & water/glycol

Ply count varies by bore. Hoses up to 51 mm are 3-ply; 57 mm and above are 4-ply.

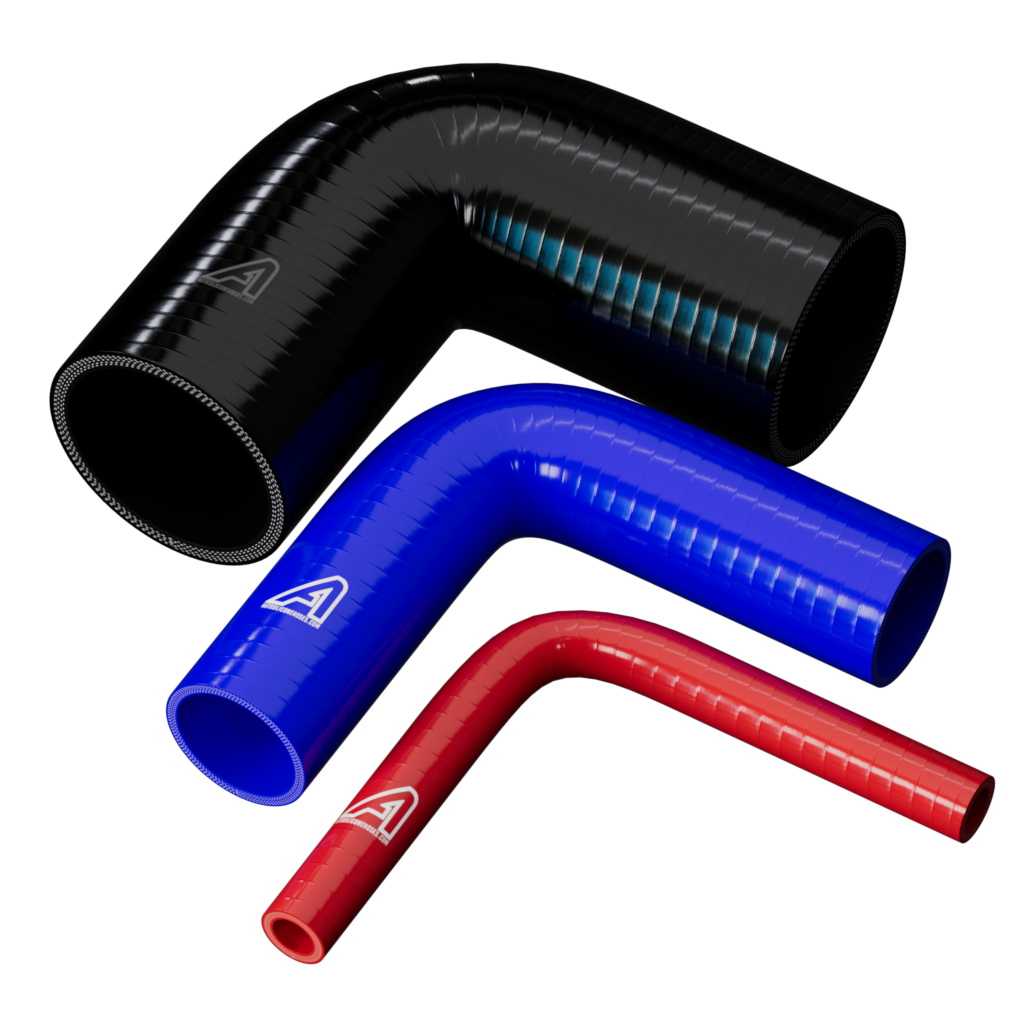

Audi A3 1.9TDI 131hp ASZ Engine EGR Blanking Silicone Hose Silicone Hose Auto Silicone Hoses

Audi A3 1.9TDI 131 PS ASZ Motor AGR-Abdeckung Silikonschlauch

Frequently Asked Questions.

Answers to the questions we’re asked most about sizing, fitment and performance.

Still can't find your answer?

What is it, and what does it fit?

A direct-fit silicone blanking hose for this Audi engine. Check the model, engine and year range on this page against your vehicle before ordering.

How do I make sure it fits my car?

Match on model, engine and year or facelift, because hoses often change mid-generation. The most certain method is the OE part number on the part you are removing. If you cannot find one, send us photos of the old hose with a tape measure alongside, or your registration, and we will confirm.

Is blanking the EGR road legal?

Blanking off EGR removes an emissions control device, which can affect the MOT emissions check and the vehicle's road legality, and on a car still under manufacturer warranty it may cause a dispute. Many customers use these on off-road, competition or engine-swap projects. It is your call, but go in knowing that.

Why do people blank the EGR on this engine?

The EGR system recirculates exhaust gas into the intake, and over time that combines with oil mist to coke up the inlet manifold, costing airflow and driveability. Blanking it prevents that. The trade-off is the emissions and legality point above, which is a real one.

What colours are available?

black, blue and red. The colour is cosmetic - construction and rating are identical. If you are doing several hoses on the same vehicle, order them together so the shades match.

Does it come with clips?

Some of our listings offer clips as an option at checkout - check the options on this page. Where they are not included, we stock stainless worm drive clips and T-bolt clamps in every matching size. Always renew clips with a hose: old ones lose tension and corrode where you cannot see.
