Grey Double Layer Silicone Air Ducting

✅ High Temperature ✅ Very Flexible ✅ Steel Reinforcement
false

PRODUCT CONSTRUCTION.

Grey Double Layer Silicone Air Ducting

✅ High Temperature ✅ Very Flexible ✅ Steel Reinforcement
SKU
FGD045-ASH
Brand
Auto Silicone Hoses
Application
Hot/Cold Air & Gas/Fume Extraction
Temperature Range
-60°C to +260°C
Internal Diameter
45mm
Internal Diameter Inch
1 3/4"
Outside Diameter
49mm
Outside Diameter Inch
1 15/16"
Main Body Length
1 Metre
Bend Radius
49mm
Max Coil Length
4 Metre
Wall Thickness
2mm
Surface Finish
Gloss With Sring Spiral
Inner Layer Material
Silicone Glass Fibre
Outer Layer Material
Silicone Coated Glass Fiber
Reinforcement
Spring Steel Wire With Glass Fiber Cord
Colour
Nardo Grey
Bursting Pressure
7.8 Bar
Working Pressure
2.6 Bar
Safety Factor
3 X Working Pressure
Weight
0.275 kg/m
Download Datasheet
Your custom code is here (HTML, JavaScript, CSS, Shopify Liquid)
£18.76
Sale {price}%

£15.01 ex VAT

RELATED PRODUCTS.

ADD HOSE CLIPS & JOINERS.

Selected OD (Outside Diameter):
49mm
Match Hose OD To Clip Size Range
TBOLT-SPEC

DELIVERED TO YOUR DOOR.

Free standard delivery when you spend £40!

COLLECT IN STORE.

Start-EComposer-custom-liquid-pickup

Pickup Available At Silicone Hose UK.

Collect In 1 Hour

Grey Double Layer Silicone Air Ducting

Internal Diameter: 45mm, Color: Grey, Length: 1 Metre

  • Silicone Hose UK

    Pickup Available, collect in 1 hour

    HolmeBank Business Park, Station Road
    Unit 5
    Mirfield WF14 8NA
    United Kingdom

    +441924496111

End-EComposer-custom-liquid-pickup

BUY NOW. PAY LATER.

SKU
FGD045-ASH
Brand
Auto Silicone Hoses
Application
Hot/Cold Air & Gas/Fume Extraction
Temperature Range
-60°C to +260°C
Internal Diameter
45mm
Outside Diameter
49mm
Main Body Length
1 Metre
Bend Radius
49mm
Max Coil Length
4 Metre
Wall Thickness
2mm
Surface Finish
Gloss With Sring Spiral
Inner Layer Material
Silicone Glass Fibre
Outer Layer Material
Silicone Coated Glass Fiber
Reinforcement
Spring Steel Wire With Glass Fiber Cord
Colour
Nardo Grey
Bursting Pressure
7.8 Bar
Working Pressure
2.6 Bar
Safety Factor
3 X Working Pressure
Weight
0.275 kg/m
Download Datasheet

Description

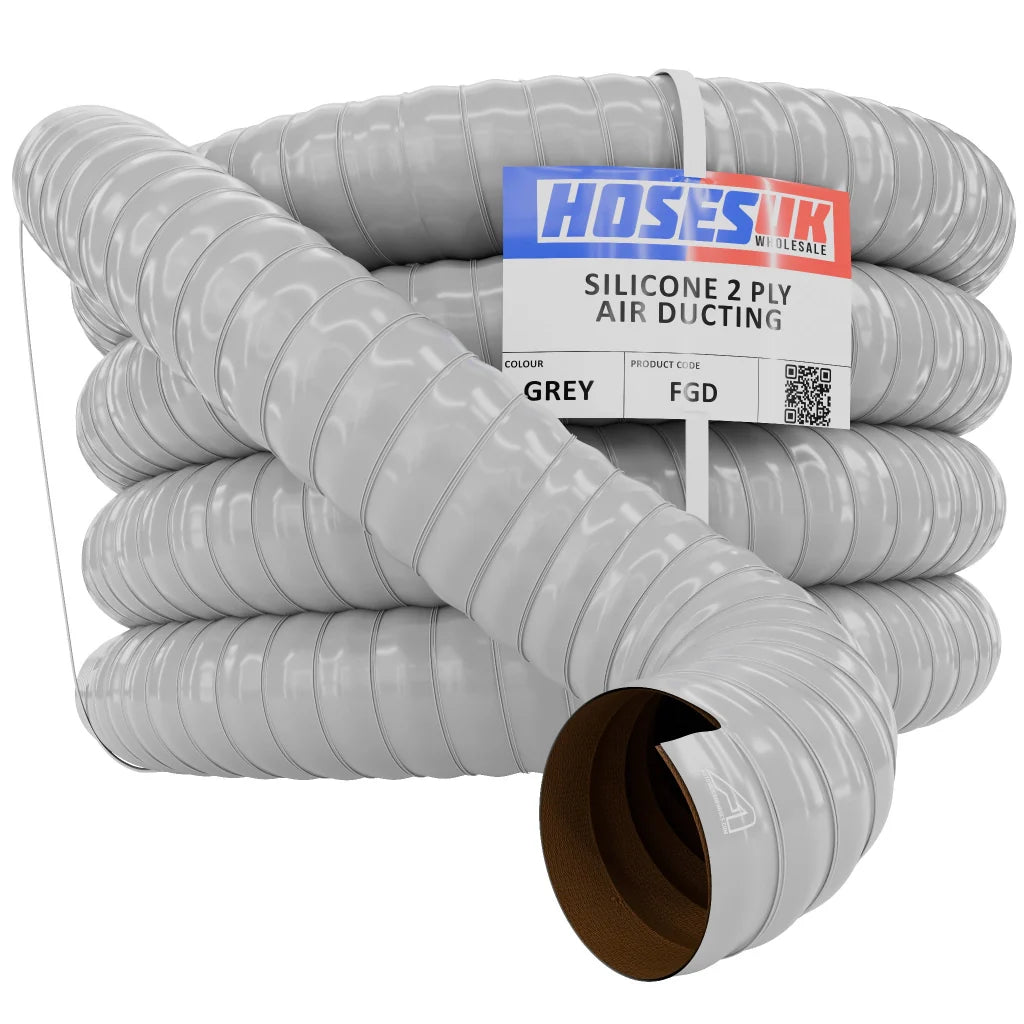

Grey flexible air intake hose/brake ducting. Manufactured from a double layer of specially formulated Silicone Rubber whilst the Bronze coated internal spring helps to maintain shape and prevent kinking.

Operating temperature -60 to +260¶øC.

Grey double layer ducting is available in many different internal diameters (I.D.)

Super lightweight, neoprene flexible ducting hoses are ideal for varied applications. We recommend this product for air intakes, cone air filters, cold and hot air extraction, exhaust gas, dust extraction, heater hoses and numerous other applications; hence we can provide a range of ducting hoses specific to your application needs. All of our ducting hoses are internally reinforced with a steel wire helix (spiral wire), which gives these ducting hoses flexibility and a tight bend radius. Our highly Flexible neoprene hoses are lightweight, kink-proof and great for high temperatures.

Returns

For further details pertaining to our return policy, kindly refer to our dedicated Returns & Warranties page.We offer 30 day return policy on 99% of our items, some are considered Custom made products (This would include Alloy Joiners, Alloy Connector & Silicone Couplers as these are made specifically for each order and are classed as a 'tailor-made' product). These are non returnable.

For further details pertaining to our return policy, kindly refer to our dedicated Returns & Warranties page.
Gallery

FROM THE BRAND.

packingbanner





FREQUENTLY ASKED QUESTIONS.

Can Silicone Hoses Be Used For Fuel/Oil?

If you intend to use silicone hoses for fuel or oil applications, it is recommended to use Fluorolined Silicone, hoses are specifically designed to offer enhanced resistance to a wider range of chemicals, including fuels and oils.

Will Silicone Hose Stretch?

Silicone hoses are known for their flexibility and elasticity, which allows them to stretch to some extent. However, the degree to which a silicone hose can stretch depends on various factors, including its design, thickness, and the specific type of silicone used in its construction. We advise that our hoses can stretch a maximum of 3mm on the diameter.

Can Silicone Hoses Be Used For Coolant?

Yes, silicone hoses are commonly used for coolant applications. Silicone hoses are well-suited for coolant systems in various industries, including automotive, marine, and industrial applications.

How Long Do Silicone Hoses Last?

The lifespan of silicone hoses can vary depending on several factors, including the quality of the material, the specific formulation of the silicone, the environmental conditions, and the type of application. In general, silicone hoses are known for their durability and longevity, and they often outlast traditional rubber hoses in many applications.

What is the temperature rating of silicone hoses?

The temperature rating of silicone hoses is typically in the range of -60°C to +180°C (-76°F to 356°F). Silicone hoses are known for their ability to withstand a wide range of temperatures, making them suitable for various applications in industries such as automotive, aerospace, and manufacturing. It's important to note that specific products may have slightly different temperature ratings, so it's advisable to refer to the manufacturer's specifications for precise details on a particular silicone hose.
