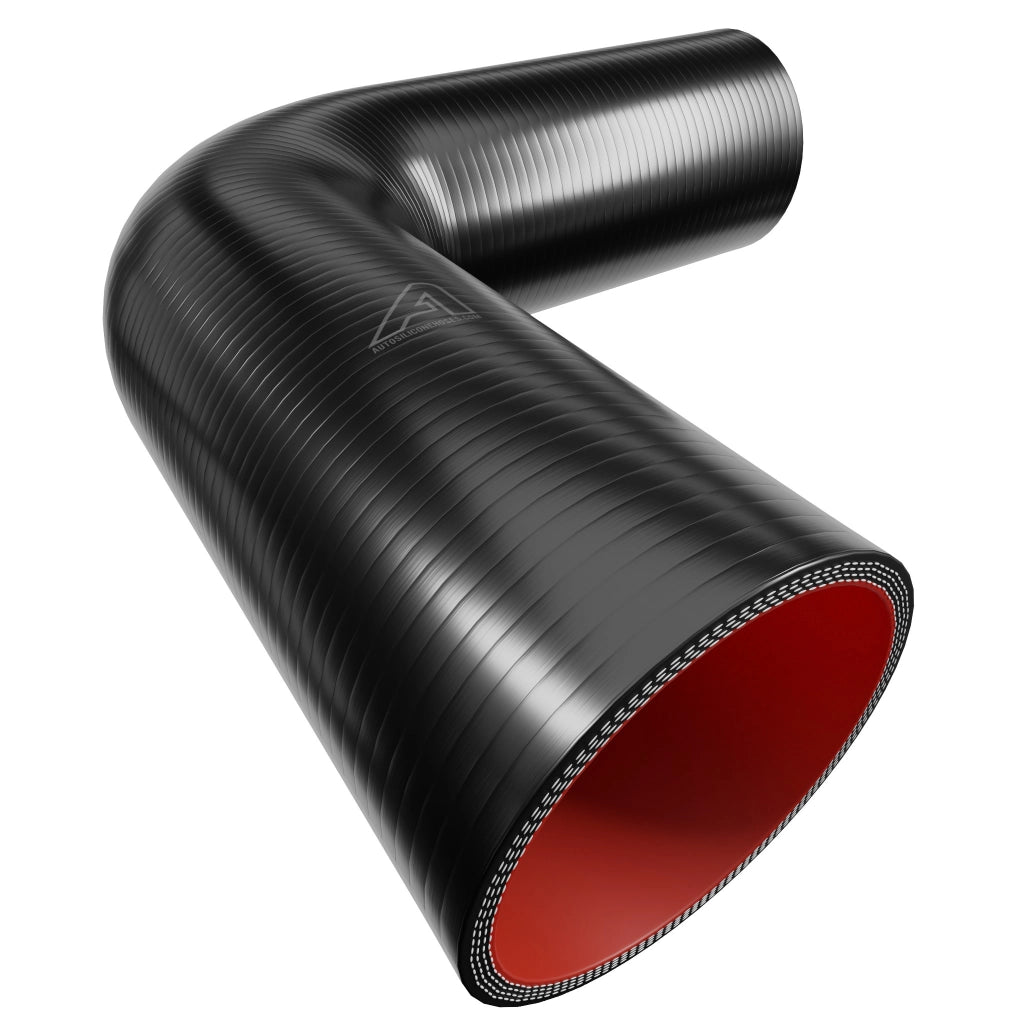

90 Degree Fuel & Oil Silicone Elbow

✅ 150mm Leg Length ✅ 300mm Total Length ✅ Fuel & Oil Safe
false

90 Degree Fuel & Oil Silicone Elbow

✅ 150mm Leg Length ✅ 300mm Total Length ✅ Fuel & Oil Safe
SKU
FSL090006B-ASH
Brand
Auto Silicone Hoses
Application
Fuel & Oil Lines, Coolant Systems, Radiator & Water
Temperature Range
-60°C to +180°C
Internal Diameter
6mm
Internal Diameter Inch
15/64"
Outside Diameter
15mm
Outside Diameter Inch
9/16"
Main Body Length
300mm
Number Of Plys
3
Leg Length
150mm
Wall Thickness
4.5mm
Surface Finish
Gloss
Inner Layer Material
Flouro Silicone
Outer Layer Material
VMQ Silicone Rubber
Reinforcement
Polyester Braid
Conforms To
SAEJ30R6
Colour
Blue
Bursting Pressure
37.0 Bar
Working Pressure
12.33 Bar
Safety Factor
3 x Working Pressure
Download Datasheet
Your custom code is here (HTML, JavaScript, CSS, Shopify Liquid)
£16.19

£12.95 ex VAT

RELATED PRODUCTS.

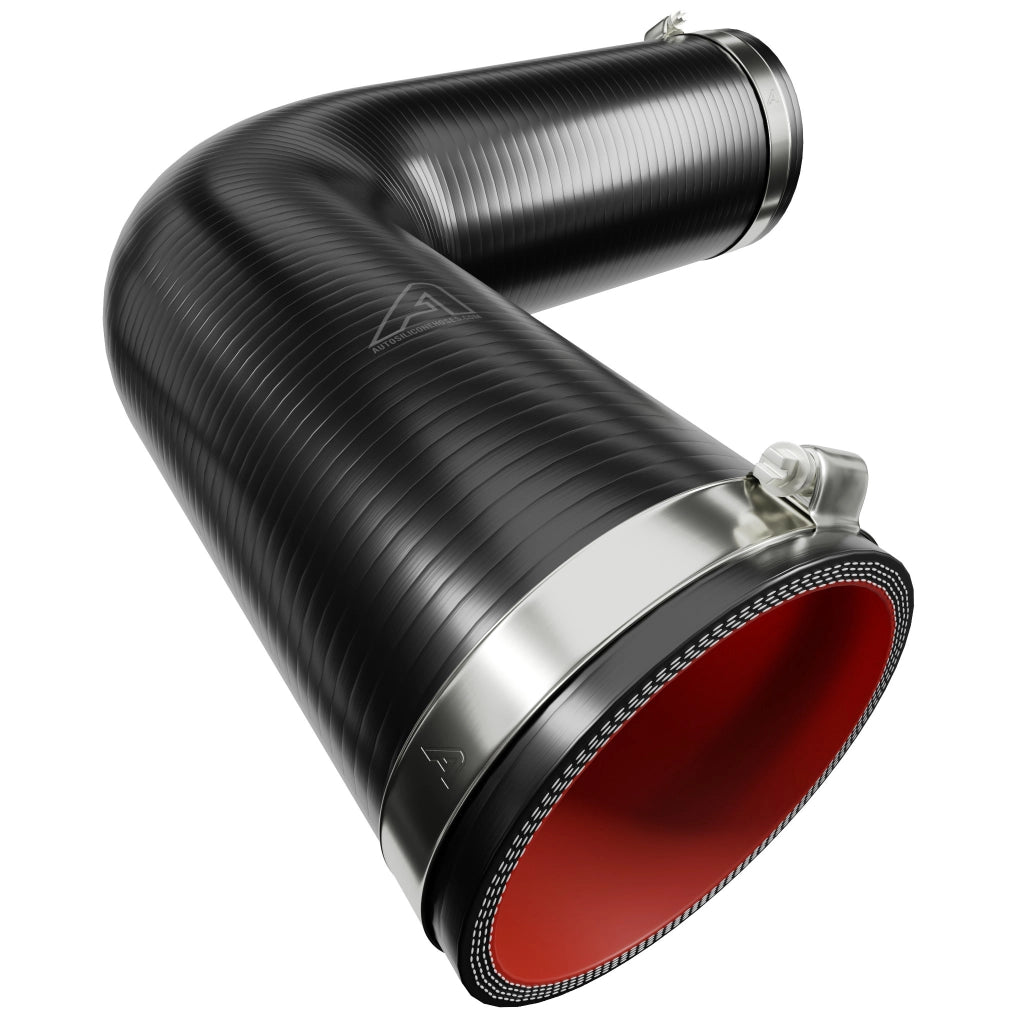

ADD HOSE CLIPS & JOINERS.

Selected OD (Outside Diameter):
15mm
Match Hose OD To Clip Size Range
TBOLT-SPEC

DELIVERED TO YOUR DOOR.

Free standard delivery when you spend £40!

Standard - £4.95
Order Within 0 day(s) 18 hrs 25 mins 42 secs
Estimated Thu 02 Jan to Fri 03 Jan
Dispatched Next Working Day
Express - £9.95
Order Within 0 day(s) 18 hrs 25 mins 42 secs
Estimated Wed 01 Jan
Dispatched Same Working Day

COLLECT IN STORE.

Pickup Available At Silicone Hose UK.

Collect In 1 Hour

90 Degree Fuel & Oil Silicone Elbow

Internal Diameter: 6mm, Color: Blue

  • Silicone Hose UK

    Pickup Available, collect in 1 hour

    HolmeBank Business Park, Station Road
    Unit 5
    Mirfield WF14 8NA
    United Kingdom

    +441924496111

BUY NOW. PAY LATER.

SKU
FSL090006B-ASH
Brand
Auto Silicone Hoses
Application
Fuel & Oil Lines, Coolant Systems, Radiator & Water
Temperature Range
-60°C to +180°C
Internal Diameter
6mm
Outside Diameter
15mm
Main Body Length
300mm
Number Of Plys
3
Leg Length
150mm
Wall Thickness
4.5mm
Surface Finish
Gloss
Inner Layer Material
Flouro Silicone
Outer Layer Material
VMQ Silicone Rubber
Reinforcement
Polyester Braid
Conforms To
SAEJ30R6
Colour
Blue
Bursting Pressure
37.0 Bar
Working Pressure
12.33 Bar
Safety Factor
3 x Working Pressure
Download Datasheet

Description

Introducing the 90 Degree Fuel & Oil Silicone Elbow, a versatile component designed for demanding applications, with exceptional resistance to fuel and oil, thanks to its Fluoro lining.

Specifications:

  • Temperature Range: -60°C to +180°C
  • Material: Polyester Reinforcement / VMQ Silicone Rubber / Fluoro Liner
  • Fluoro Lining: The Fluoro lining on the inside of this hose enhances its resistance to fuel and oil, ensuring long-lasting performance.
  • Applications: Engine Coolant Systems, Radiator, Intermediate Fuel & Oil Hose Transfer
  • Fluoro Lined Hose: A Fluoro lined hose is ideal for applications where resistance to aggressive chemicals and fuels is crucial. It's commonly used in automotive and industrial sectors for efficient fluid transfer in challenging environments.

Experience exceptional durability and performance with the 90 Degree Fuel & Oil Silicone Elbow, designed for the intermediate transfer of fuel and oil. Its Fluoro lining sets it apart for applications requiring robust chemical resistance.

Returns

For further details pertaining to our return policy, kindly refer to our dedicated Returns & Warranties page.We offer 30 day return policy on 99% of our items, some are considered Custom made products (This would include Alloy Joiners, Alloy Connector & Silicone Couplers as these are made specifically for each order and are classed as a 'tailor-made' product). These are non returnable.

For further details pertaining to our return policy, kindly refer to our dedicated Returns & Warranties page.
Gallery

POPULAR PRODUCTS.

32mm ID Black Flexible Pond Hose

32mm ID Black Flexible Pond Hose

Conforms to PVC

Starting From
£3.92

1 Metre SuperFlex Wire Reinforced Silicone

1 Metre SuperFlex Wire Reinforced Silicone

Conforms to SAEJ20R3

Starting From
£13.80

FROM THE BRAND.

packingbanner





FREQUENTLY ASKED QUESTIONS.

Can Silicone Hoses Be Used For Fuel/Oil?

If you intend to use silicone hoses for fuel or oil applications, it is recommended to use Fluorolined Silicone, hoses are specifically designed to offer enhanced resistance to a wider range of chemicals, including fuels and oils.

Will Silicone Hose Stretch?

Silicone hoses are known for their flexibility and elasticity, which allows them to stretch to some extent. However, the degree to which a silicone hose can stretch depends on various factors, including its design, thickness, and the specific type of silicone used in its construction. We advise that our hoses can stretch a maximum of 3mm on the diameter.

Can Silicone Hoses Be Used For Coolant?

Yes, silicone hoses are commonly used for coolant applications. Silicone hoses are well-suited for coolant systems in various industries, including automotive, marine, and industrial applications.

How Long Do Silicone Hoses Last?

The lifespan of silicone hoses can vary depending on several factors, including the quality of the material, the specific formulation of the silicone, the environmental conditions, and the type of application. In general, silicone hoses are known for their durability and longevity, and they often outlast traditional rubber hoses in many applications.

What is the temperature rating of silicone hoses?

The temperature rating of silicone hoses is typically in the range of -60°C to +180°C (-76°F to 356°F). Silicone hoses are known for their ability to withstand a wide range of temperatures, making them suitable for various applications in industries such as automotive, aerospace, and manufacturing. It's important to note that specific products may have slightly different temperature ratings, so it's advisable to refer to the manufacturer's specifications for precise details on a particular silicone hose.
