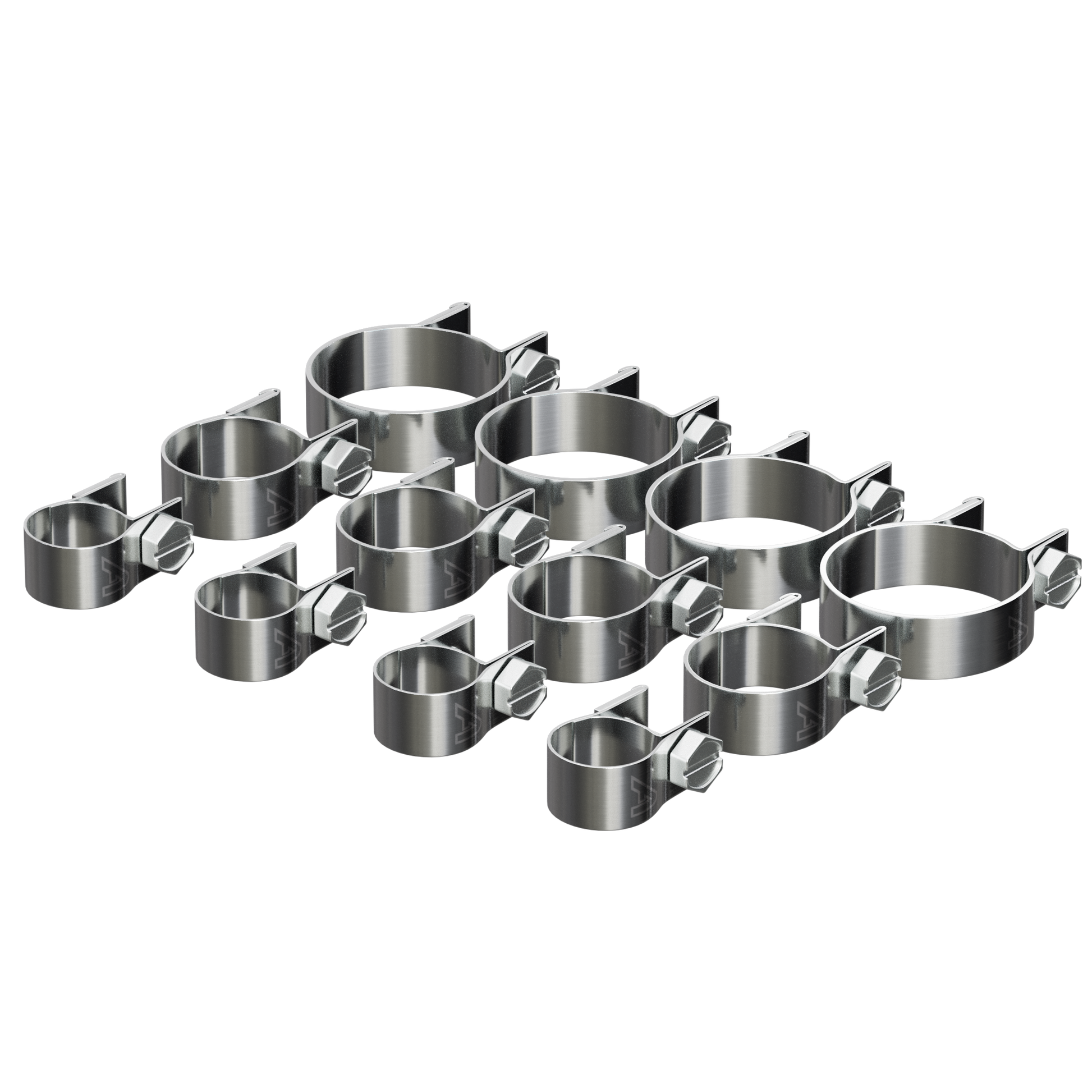

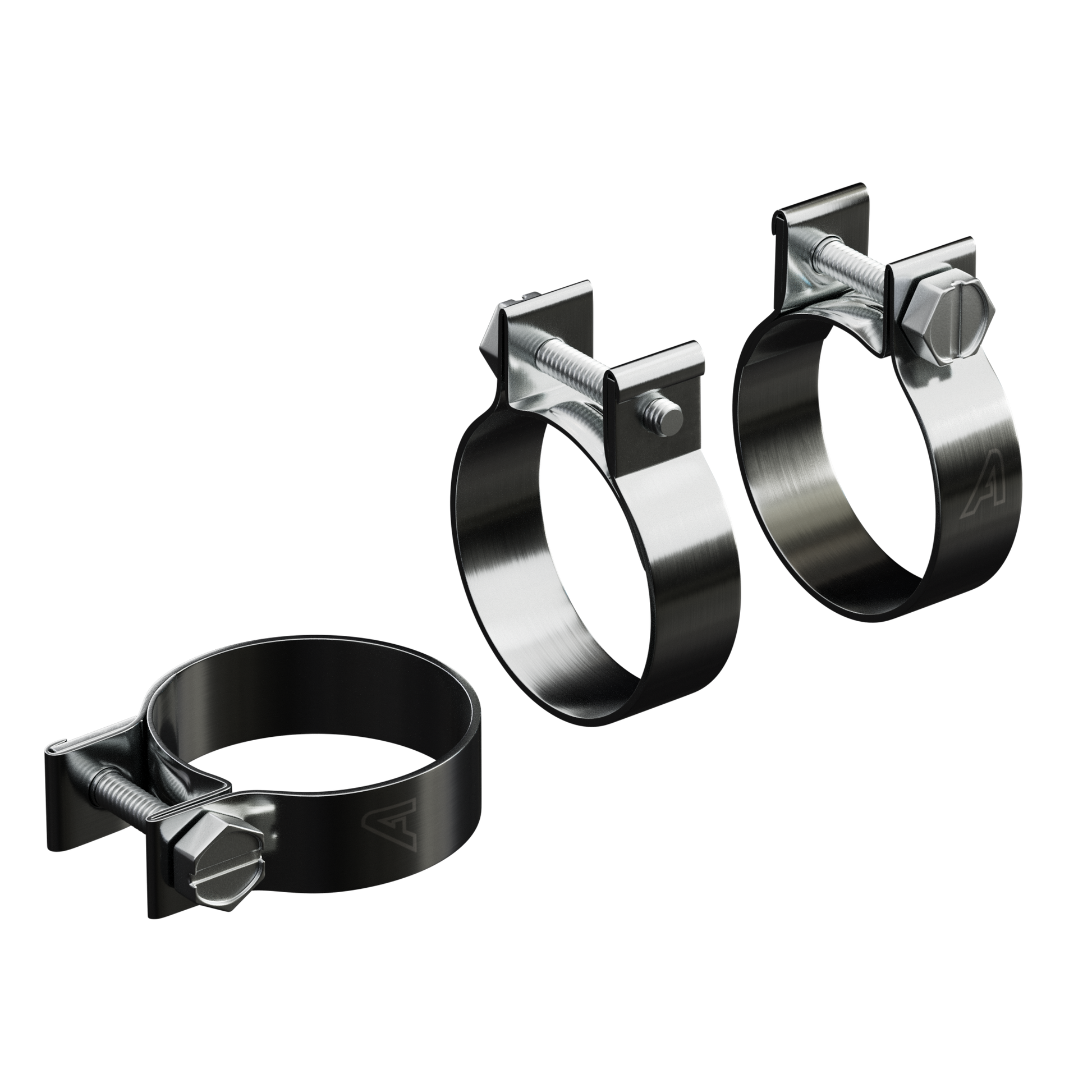

Mini Fuel Hose Clip - 10 Pack

✅ Hex Head ✅ 9mm Band Width ✅ 0.6mm Thick
Mini Fuel Hose Clip - 10 Pack Clips & Clamps Auto Silicone Hoses
Mini Fuel Hose Clip - 10 Pack Clips & Clamps Auto Silicone Hoses W4 Stainless Steel 7mm>9mm
Mini Fuel Hose Clip - 10 Pack Clips & Clamps Auto Silicone Hoses
Mini Fuel Hose Clip - 10 Pack Clips & Clamps Auto Silicone Hoses W1 Zinc Plated 7mm>9mm
Mini Fuel Hose Clip - 10 Pack Clips & Clamps Auto Silicone Hoses
Mini Fuel Hose Clip - 10 Pack Clips & Clamps Auto Silicone Hoses
Mini Fuel Hose Clip - 10 Pack Clips & Clamps Auto Silicone Hoses
Mini Fuel Hose Clip - 10 Pack Clips & Clamps Auto Silicone Hoses
Mini Fuel Hose Clip - 10 Pack Clips & Clamps Auto Silicone Hoses
Mini Fuel Hose Clip - 10 Pack Clips & Clamps Auto Silicone Hoses
Mini Fuel Hose Clip - 10 Pack Clips & Clamps Auto Silicone Hoses
Mini Fuel Hose Clip - 10 Pack Clips & Clamps Auto Silicone Hoses

Mini Fuel Hose Clip - 10 Pack

✅ Hex Head ✅ 9mm Band Width ✅ 0.6mm Thick
View Product Video
SKU
PMC007009-ASH#10
Brand
Auto Silicone Hoses
Application
Fuel / Petrol Lines & Vacuum Hoses
Temperature Range
-60°C to +180°C
Internal Diameter
7mm > 9mm
Internal Diameter Inch
1/4" > 3/8"
Surface Finish
Gloss
Inner Layer Material
W1 Zinc Plated
Outer Layer Material
W1 Zinc Plated
Material
W1 Zinc Plated
Reinforcement
Solid Steel
Colour
Silver
Band Width
9mm
Download Datasheet
Your custom code is here (HTML, JavaScript, CSS, Shopify Liquid)
Material
Clip Range
£3.17
Sale {price}%

£2.64 ex VAT

Spend £40.00 to unlock your first free gift!

RELATED PRODUCTS.

ADD HOSE CLIPS & JOINERS.

Selected OD (Outside Diameter):
Match Hose OD To Clip Size Range
TBOLT-SPEC

DELIVERED TO YOUR DOOR.

Free standard delivery when you spend £40!

Description

Mini Fuel Hose Clips are compact and reliable clamps designed for secure fastening of small-diameter fuel, oil, air, and water hoses. Manufactured in zinc-plated or stainless steel, these clips offer excellent durability, corrosion resistance, and long service life in demanding environments. Their precision-formed band with rolled edges prevents damage to hoses while providing a tight, leak-free seal under pressure. Designed for quick and easy installation, mini hose clips are widely used in automotive, marine, agricultural, and light industrial applications where space is limited and a secure connection is essential.

Key Features:

  • Material: Zinc plated (W1) or stainless steel (W4) for strength and corrosion resistance.

  • Operating Temperature: -60°C to +180°C (peak +190°C).

  • Clip Range: Available in sizes from 7–9 mm up to 16–18 mm.

  • Band Width: 9 mm.

  • Band Thickness: 0.6 mm.

  • Design: Compact worm-drive mechanism for precise tightening.

  • Applications: Fuel, oil, air, and water hoses in automotive, marine, and industrial systems.

The worm-drive tightening system allows for a strong, adjustable clamping force, reducing the risk of leaks and hose slippage. The 9 mm wide band and smooth rolled edges protect the hose from cutting or distortion during tightening, making them suitable for both rubber and silicone hoses. Available in corrosion-resistant stainless steel or cost-effective zinc-plated finishes, mini clips provide flexibility depending on the operating environment. Compact and versatile, they are ideal for confined spaces and smaller hose assemblies.

Applications include securing fuel lines, breather hoses, washer tubing, vacuum pipes, and small-bore coolant or oil lines. Mini Fuel Hose Clips are trusted by mechanics, engineers, and installers for their ease of use, compact design, and long-lasting sealing performance.

Returns

For further details pertaining to our return policy, kindly refer to our dedicated Returns & Warranties page.We offer 30 day return policy on 99% of our items, some are considered Custom made products (This would include Alloy Joiners, Alloy Connector & Silicone Couplers as these are made specifically for each order and are classed as a 'tailor-made' product). These are non returnable.

For further details pertaining to our return policy, kindly refer to our dedicated Returns & Warranties page.
Gallery

COLLECT IN STORE.

Start-EComposer-custom-liquid-pickup

Pickup Available At Silicone Hose UK.

Usually ready in 1 hour

Mini Fuel Hose Clip - 10 Pack

Material: W1 Zinc Plated, Clip Range: 7mm>9mm

  • Silicone Hose UK

    Pickup Available, usually ready in 1 hour

    HolmeBank Business Park, Station Road
    Unit 5
    Mirfield WF14 8NA
    United Kingdom

    +441924496111

End-EComposer-custom-liquid-pickup

BUY NOW. PAY LATER.

SKU
PMC007009-ASH#10
Brand
Auto Silicone Hoses
Application
Fuel / Petrol Lines & Vacuum Hoses
Temperature Range
-60°C to +180°C
Internal Diameter
7mm > 9mm
Surface Finish
Gloss
Inner Layer Material
W1 Zinc Plated
Outer Layer Material
W1 Zinc Plated
Material
W1 Zinc Plated
Reinforcement
Solid Steel
Colour
Silver
Band Width
9mm
Screw Type
Nut & Bolt
Pack Quantity
10
Clip Diameter
7mm > 9mm
Download Datasheet

PRODUCT VIDEO.

PRODUCT SPEC.

Clip Range Diameter Band Width Band Thickness Material
7mm - 9mm9mm0.6mmW1 / W4
8mm - 10mm9mm0.6mmW1 / W4
9mm - 11mm9mm0.6mmW1 / W4
10mm - 12mm9mm0.6mmW1 / W4
11mm - 13mm9mm0.6mmW1 / W4
12mm - 14mm9mm0.6mmW1 / W4
13mm - 15mm9mm0.6mmW1 / W4
14mm - 16mm9mm0.6mmW1 / W4
15mm - 17mm9mm0.6mmW1 / W4
16mm - 18mm9mm0.6mmW1 / W4
