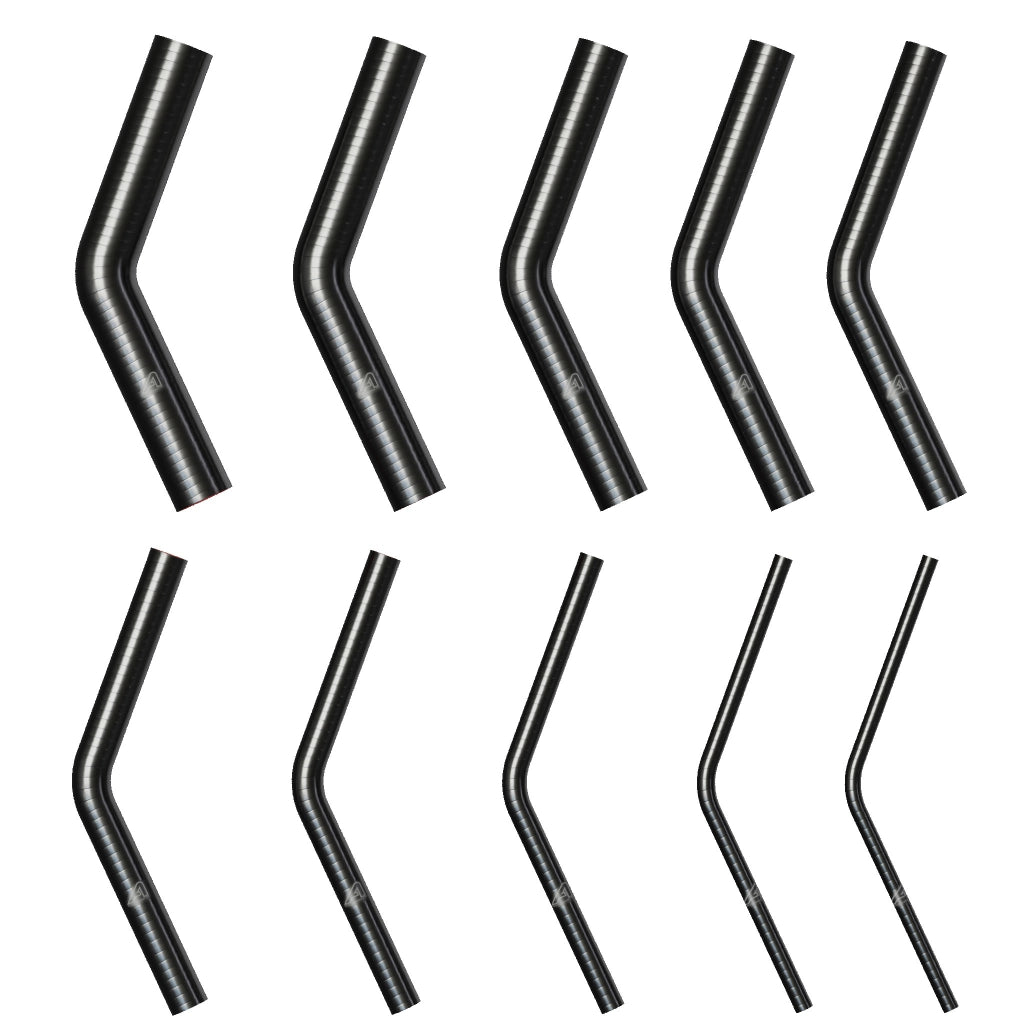

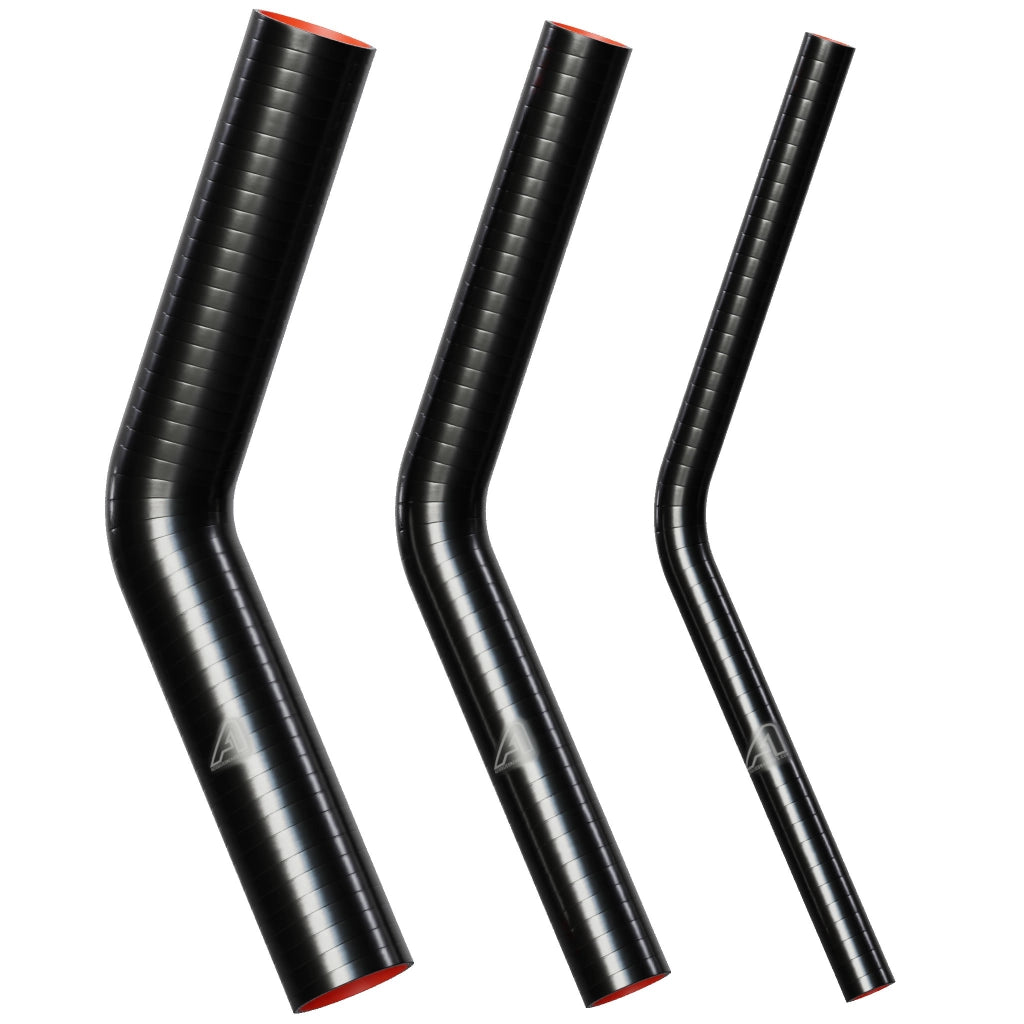

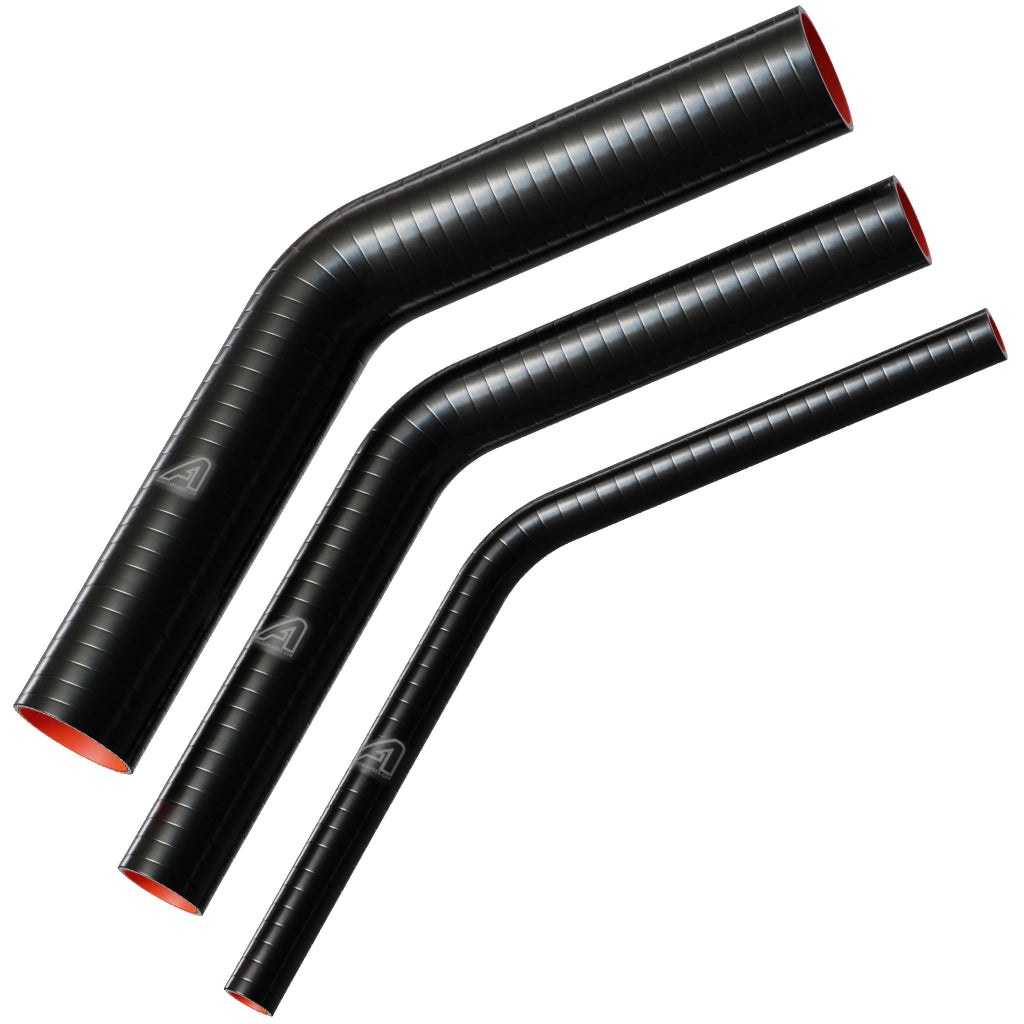

We now stock 45 degree silicone elbows not found anywhere else with extra long legs. Our jumbo sized leg lengths will offer a huge 300x300mm lengths from centre line of the bend radius making it possible to connect two sources with one part only, thus avoiding any joiners and making a better leak proof connection in one piece.

The hose will be supplied to you with equal legs 300x300mm (12" long) allowing you to easily cut the legs back should you require unequal lengths or slightly shorter options.

This option offers a unique solution as this would normally require custom building your silicone hose which some rival hose manufacturers would either not do, or require large minimum orders.

Fluorosilicone (FMVQ) and Fluorocarbon (FKM) lined hoses for fuel, oil and chemical resistance.

Where oil, oil mist, fuel and or, certain chemicals may be present in turbocharger and other air or exhaust gas systems, it is necessary to use a fluorosilicone or fluorocarbon liner in a silicone hose. Normal silicone is not resistant to oil which, swells the silicone and permeates through wall of the hose.

A Fluorosilicone or Fluorocarbon lining can also be used to protect against OAT coolants, certain aggressive rust inhibitors sometimes used in coolant systems bi-products from EGR systems and other chemicals.

Fluorosilicone, when used with an appropriate silicone compound and fabric reinforcement, offers good temperature stability from -55°C up to +230°C. Fluorocarbon lined hoses offer slightly better high temperature stability however, are not as suited to use at extreme low temperatures.

Fluorocarbon is more resistant to and is required where an acidic environment is a risk, including some EGR bi-products. When producing FVMQ and FKM lined hoses, it is vital to use only the highest quality materials.

Fluoro Silicone Rubber Hose, excellent fuel & oil resistance. The Fluoro liner (Red Liner) is added as normal non Fluoro lined hoses can be affected by oil mist & vapour. Typically oil mist and residue will perish non Fouro lined hoses very quickly.

45° Elbow Super Long Legs Fluoro Silicone Hoses 45° Elbow Super Long Legs Fluoro Silicone Hoses
